T-ARMOR

INSTALLING

PANEL CLIP

STEP

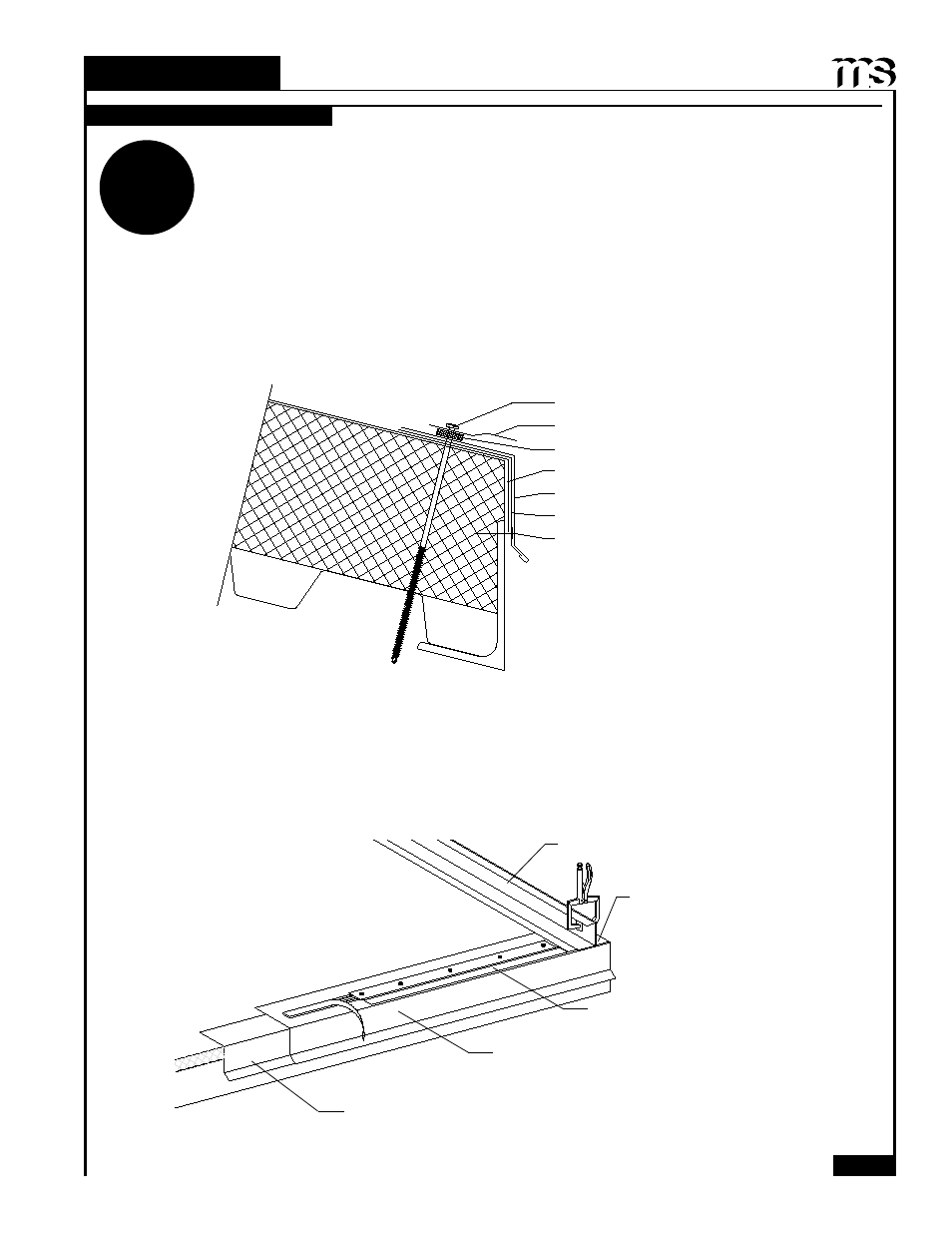

Floating Rake Angle

Eave Flashing

Offset Cleat

Roof Cleat

Offset Rake Slide

Deck Screw (1'-0" oc)

Offset Cleat
Double Bead Tape Sealant
Moisture Barrier (by others)
Eave
Roof Cleat
Fasteners (by others)

INSTALLATION OF PANEL

INSTALLING EAVE FLASHING

Steps:

1. Install cleat and fastening into roof framing with fasteners 1'-0" oc.

2. Hook Eave flashing onto the Cleat and temporarily fasten into place.

3. Install continuous row of Double Bead Tape Sealant across the top of the Eave flashing.

4. Install Offset Cleat at Double Bead Tape Sealant and use #14-13 Deck Screws 1'-0" oc to fasten to the roof.

5. If two or more Eave flashings are required lap the flashing over the previously installed flashing by a minimum of 2"

placing two beads of Tube Sealant between the flashings and secure with Pop Rivets 2.5" oc.
