Metal Sales T-Armor Series - Manual (Page 70)

© Metal Sales Manufacturing Corporation / Subject to change without notice 09/14
T-ARMOR
70
#14-13 Deck Screws (1'-0" oc)
Clip w/ (2) #14-13 Deck Screws
#12-14x1 1 /
4
" SD XL (See Pg 52)
CAUTION
In locations where heavy rainfall or severe ice and
snow may occur, Metal Sales' standard gutters may
not be suitable for use.
All Eave flashings must be installed prior to panel
installation.
1. Install new Eave Plate over top of rigid board insulation
and fasten through the wood blocking into the metal
deck with #14-13 Deck Screws at 1'-0" oc.
2. Install new Box Gutter flashing on top of the Eave Plate.
3. If two or more flashings are required, lap the flashing
over the previously installed flashing by a minimum of
2" placing two rows of Tube Sealant between the
flashings and secure with Pop Rivets, 2.5" oc.
4. Apply a continuous row of Double Bead Tape Sealant
across the top of the Eave flashing.
5. Place Gutter Staps into place at 2'-0" oc and fasten to
the front of the Box Gutter with a 1 /
8
"x 3 /
16
" Pop Rivet.
5. Set panel into place and use #12-14 x1 1 /
4
" Self Driller XL screws to fasten into place (see page 52).
6. Apply Tube Sealant up the side and across the top of the panel ribs before installing the next panel.

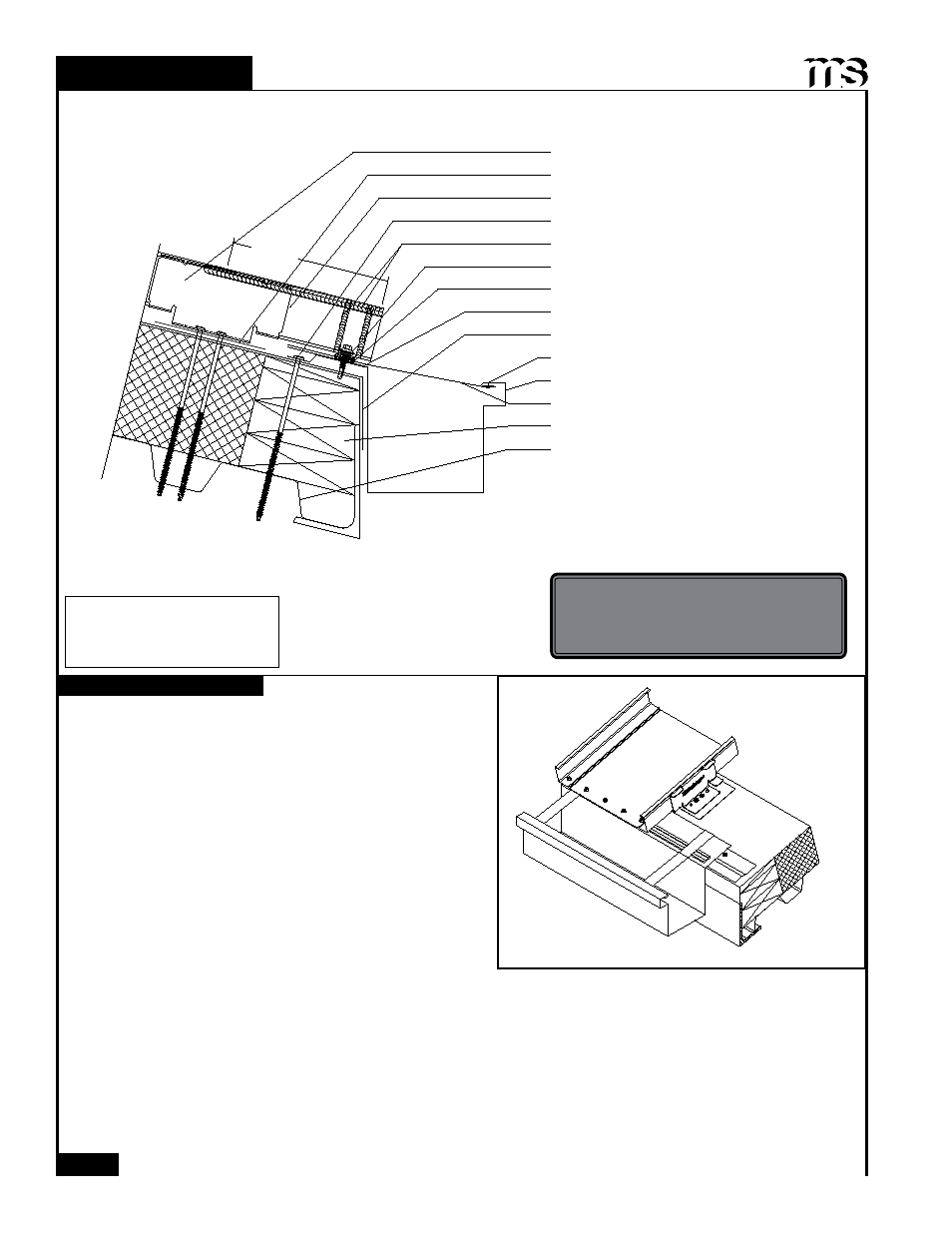

BOX GUTTER - FIXED
1 /
2
:12 Slope
Minimum
INSTALLATION NOTES
T-Armor Panel
Bearing Plate
Tube Sealant (Between Panel Ribs)
Double Bead Tape Sealant
Eave Plate
Moisture Barrier (by others)
1 /
8
"x 3 /
16
" Pop Rivets (1 per Strap)
Box Gutter
Gutter Strap (2'-0" oc)
Wood Blocking
Metal Decking (By others)
Additional #14-13 Deck
Screws may be required for
areas with large snow loads
*Panel cap not shown for clarity
9" max
