T-ARMOR
60

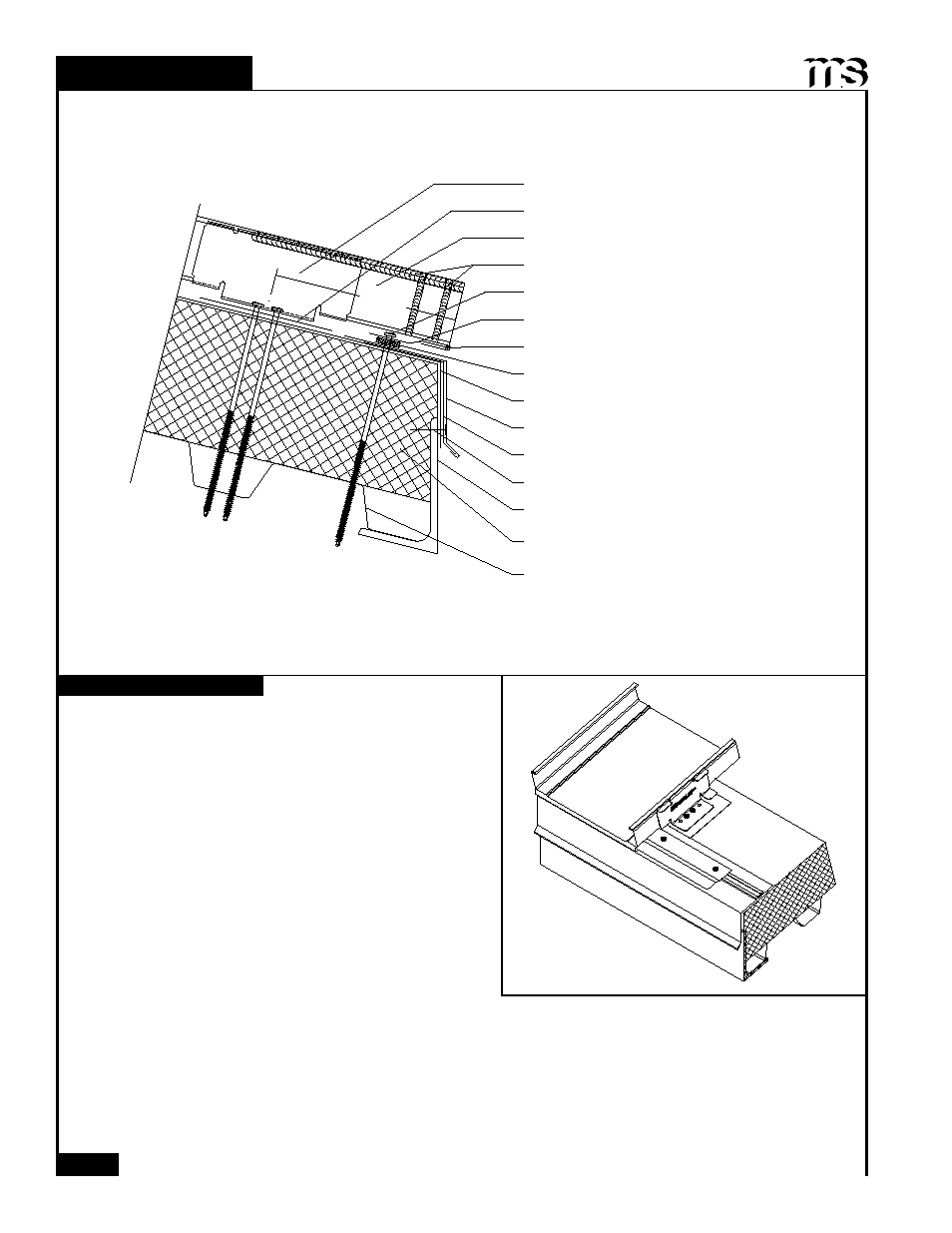

ARCHITECTURAL EAVE - FLOATING
Tube Sealant (In Panel Hem)
Eave
Panel Clip w/ (2) #14-13 Deck Screws
Bearing Plate
T-Armor Panel
Fasteners (By others)
Bent Angle (By others)
Rigid Insulation (By others)
Double Bead Tape Sealant
Tube Sealant (between panel ribs)
#14-13 Deck Screws (1'-0" oc)
Offset Cleat
Moisture Barrier (By others)
Roof Cleat
1 /
2
:12 Slope
Minimum
9" max
INSTALLATION NOTES
All Eave flashings must be installed prior to panel
installation.
1. Install new Roof Cleat, to hold flashing into place fasten
to substrate at 4'-0" oc.
2. Install new Eave flashing by engaging Roof Cleat and
rotating on to rigid board insulation. To hold Eave
flashing into place fasten to substrate at 4'-0" oc.
3. If two or more flashings are required, lap the flashing
over the previously installed flashing by a minimum of
2" placing two rows of Tube Sealant between the
flashings and secure with Pop Rivets, 2.5" oc.
4. Apply a continuous row of Double Bead Tape Sealant
across the Eave flashing.
5. Install Offset Cleat on Double Bead Tape Sealant
locations and secure with #14-13 Deck Screws at 1'-0" oc.
6. Install the panels by hooking the hemmed edge of the panel (see page 76 for Hemming Instuctions) around the
end of the Offset Cleat.
7. Apply Tube Sealant up the side and across the top of the panel ribs before installing the next panel.
Metal Decking (By others)
*Panel cap not shown for clarity
