EDS84AYCEC EN 3.0 - 09/2012
L
55
E84AYCEC communication manual (Ethernet POWERLINK)
Diagnostics
LED status displays
9.1.2
Fieldbus status displays

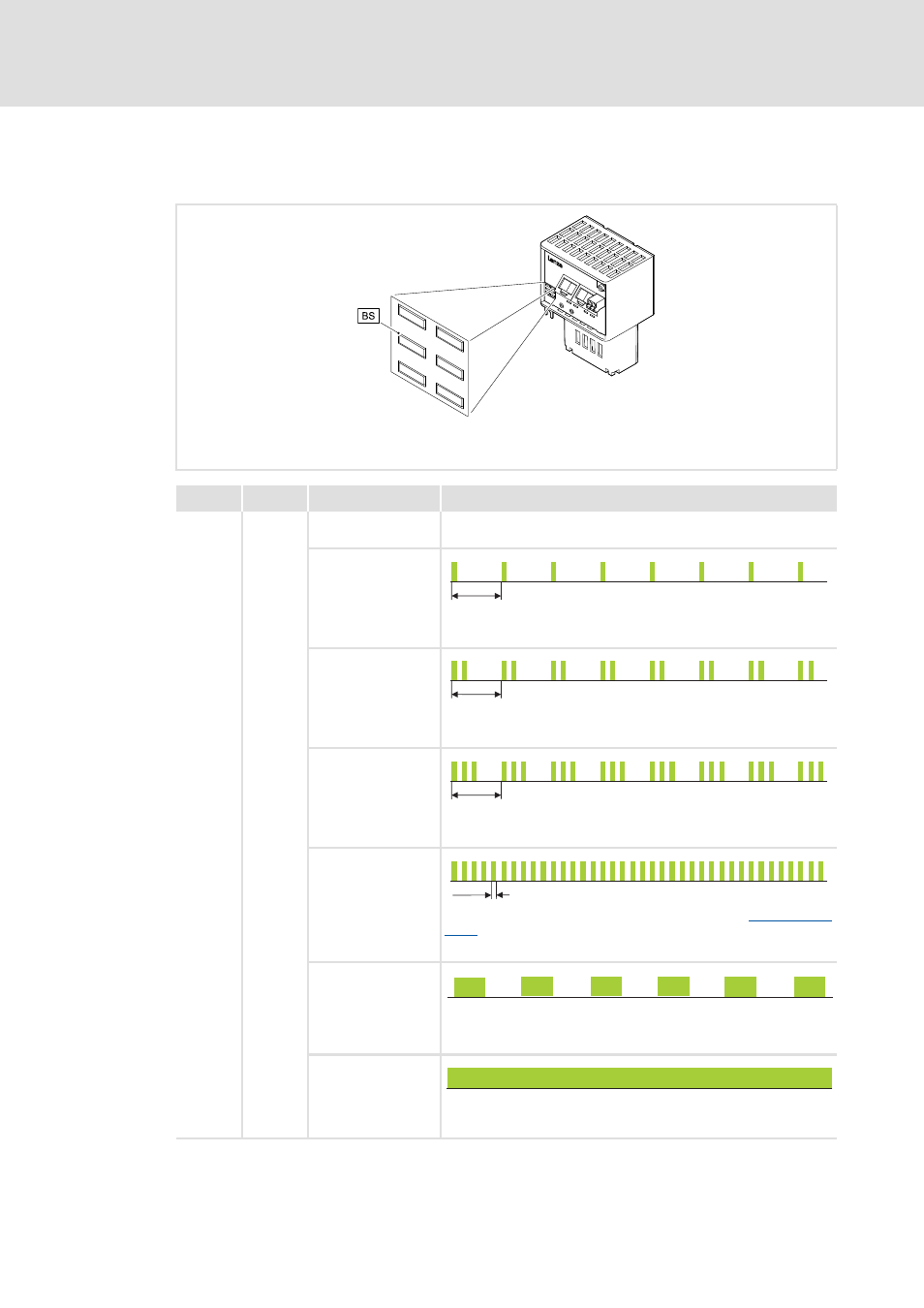

The BS LED indicates the fieldbus status.
E84YCEC003B
BS Bus Status
LED
Colour
Status
Description
BS
Green
Off
The communication module is not active on the fieldbus or is in the
INIT state.
Blinking
EPL network is in the initialisation phase.
EPL status: NMT_CS_PREOPERATIONAL_1
Blinking
EPL network is in the initialisation phase with cyclic traffic.
EPL status: NMT_CS_PREOPERATIONAL_2
Blinking
EPL node is waiting for the start signal.
EPL status: NMT_CS_READY_TO_OPERATE
Blinking
The EPL node has not found a managing node and is in
.
EPL status: NMT_CS_BASIC_ETHERNET
Blinking
EPL node is in the "Stopped" status (waiting for disconnection).
EPL status: NMT_CS_STOPPED
On
EPL node is in the operating phase.
EPL status: NMT_CS_OPERATIONAL
1 s
1 s
1 s
50 ms
200 ms
200 ms
