Commissioning
Node address setting
38
L
EDS84AYCEC EN 3.0 - 09/2012
6.2
Node address setting
The node address is set via the two front panel rotary coding switches "Node ID".

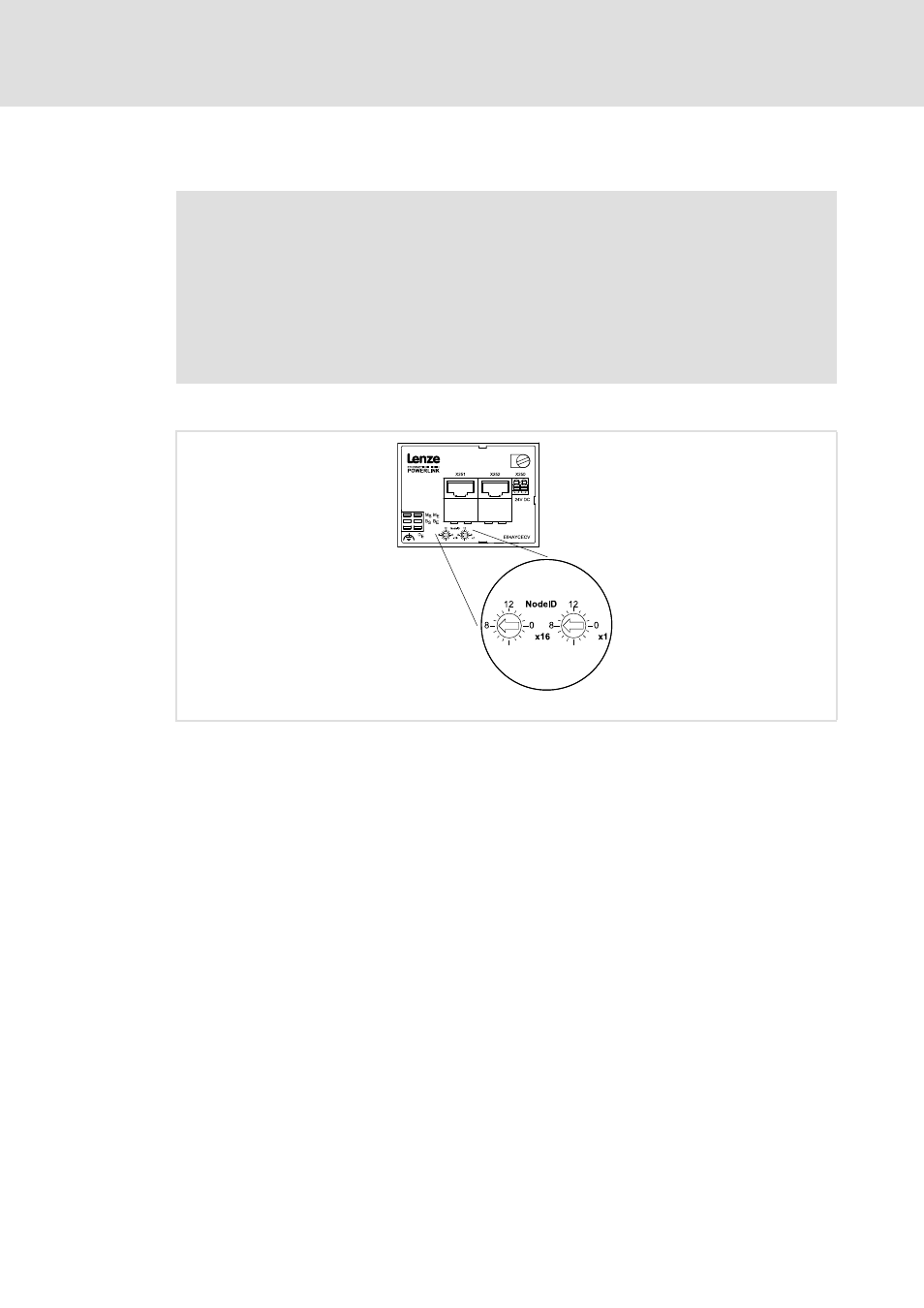

[6-1]
Rotary coding switches "Node ID"
The labelling of the rotary coding switches corresponds to the values for determining
the node address.
Valid addresses for the communication module in the EPL network:
– 1 … 100: Controlled node with Lenze module E94AYCEP as managing node
– 1 … 239: Controlled node with managing node of another manufacturer
The corresponding Ethernet IP address of the communication module results from the
address setting of the rotary coding switches:
– IP address: 192.168.100.[EPL address]
Note!
• Each network node address must only be used once.
• The node address setting in the configuration software (e.g. »Engineer«) and
the rotary encoder switches must be identical for each node.
• Adjustable address range: 1 ... 239
• Switch the voltage supply of the communication module off and on again to
activate changed settings.
Symbol_NodeID
