E84AYCEC communication manual (Ethernet POWERLINK)
Product description
Application as directed
3 Product description
3.1 Application as directed
The communication module ...
 is an accessory module which can be used in conjunction with the following standard
devices:
 is a device for use in industrial power systems.
 may only be operated under the operating conditions specified in this documentation.
 may only be used in Ethernet POWERLINK networks.
Any other use shall be deemed inappropriate!
3.2 Identification

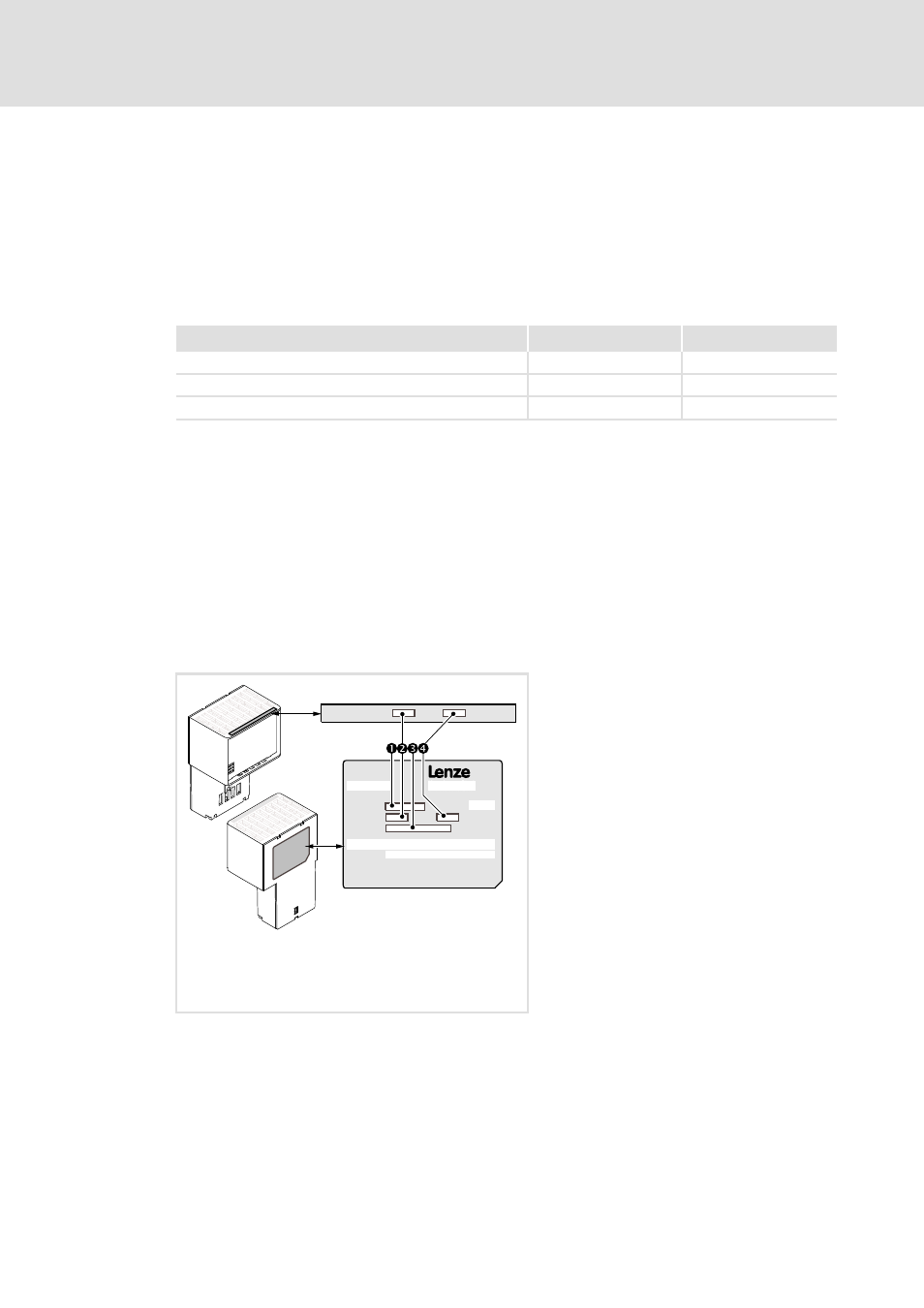

Type designation and hardware and software version of the communication module are
indicated on the nameplate:
[3-1] Identification data
Product series Type designation From software version
Inverter Drives 8400 StateLine E84AxSCxxxx 5.00
Inverter Drives 8400 HighLine E84AxHCxxxx 5.00
Inverter Drives 8400 TopLine E84AxTCxxxx 1.00
E84YCEC004
1 Type designation (type)
E84 Product series
A
Version
Y Module identification: extension module
C Module type: communication module
EC Ethernet POWERLINK CN
V/S V: Coated version
S: Standard version
2 Hardware version (HW)
3 MAC address (MAC-ID)
00-0A-86-xx-yy-zz:
Hardware address of the communication
module for unique identification in the
network
4 Software version (SW)
HW: SW:
8400
Type:
Ser.No.:
HW: SW:
MAC-ID:
