M0217-01 Model 3660
5-14 Rev. 7/11
TM
Lubrication and Maintenance
Drain reservoir and change filter annually.
1. Remove the left side panel from pump housing and pull drain hose out to clear planter.
2. Remove cap from end of drain hose and drain oil into container.
3. Replace 10-micron spin-on filter.
4. Replace and tighten cap. Return drain hose to storage location.
5. Fill system with SAE 10W-20 multigrade wide temperature range transmission hydraulic fluid. Reservoir capacity
is approximately 10 gal (37.8L).
6. Start system and run with tractor at idle and fan turned off for 1-2 minutes. Switch fan to full speed and run with
tractor at idle for 1-2 minutes.
7. Check reservoir fluid level and fill as required. Hydraulic fluid level should be within 1"-2" from top of reservoir after
pump has run and hydraulic hoses have been primed to allow fluid to expand when heated.
8. Bring tractor to full PTO speed and adjust flow control for desired system pressure.
NOTE: Periodically check and clean oil coolers.

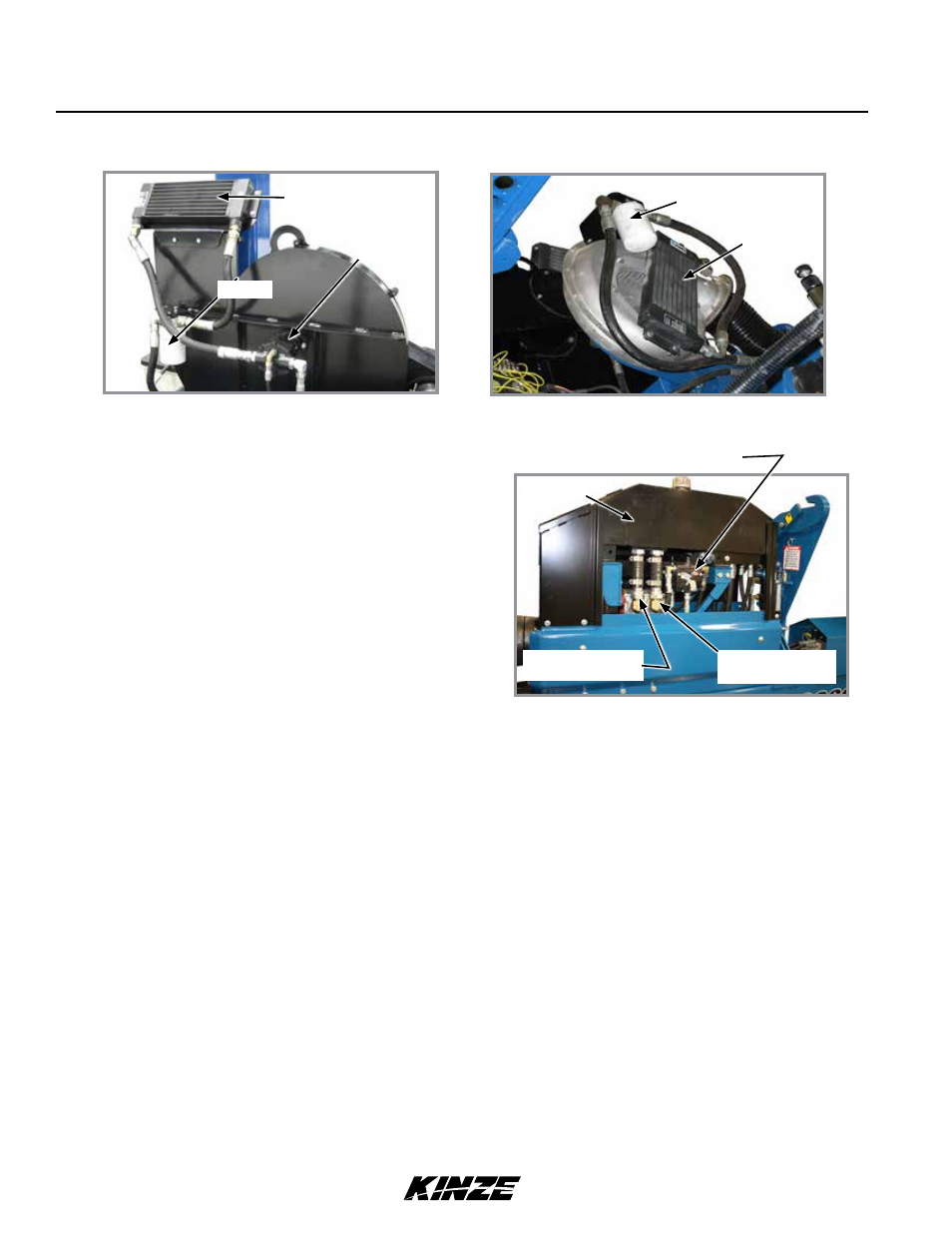

ASD fan assembly
Oil cooler
Vacuum fan assembly
Oil filter
Hydraulic
motor
Oil filter
Oil cooler
PTO pumps and reservoir assembly
Pump front section
(EdgeVac fan)
Pump rear section
(ASD system fan)
Reservoir
Flow control valve - ASD fan (opposite side)
Flow control valve - EdgeVac fan (shown)
NOTICE
Clean and grease PTO shaft coupling with high-pressure
industrial coupling grease (Chevron coupling grease or
equivalent) meeting AGMA CG-1 and CG-2 Standards
each time driveshaft is installed or premature wear and
equipment failure can occur.
Chevron ® trademark is owned by Chevron Products Company.
AGMA is the acronym for American Gear Manufacturers
Association.
PLANTER MOUNTED PUMP DRIVE AND OIL COOLER OPTION
