Kinze 3660 Lift and Rotate Planter Rev. 7/14 - Manual (Page 130)

M0217-01 Model 3660
5-50 Rev. 8/12
TM
Lubrication and Maintenance

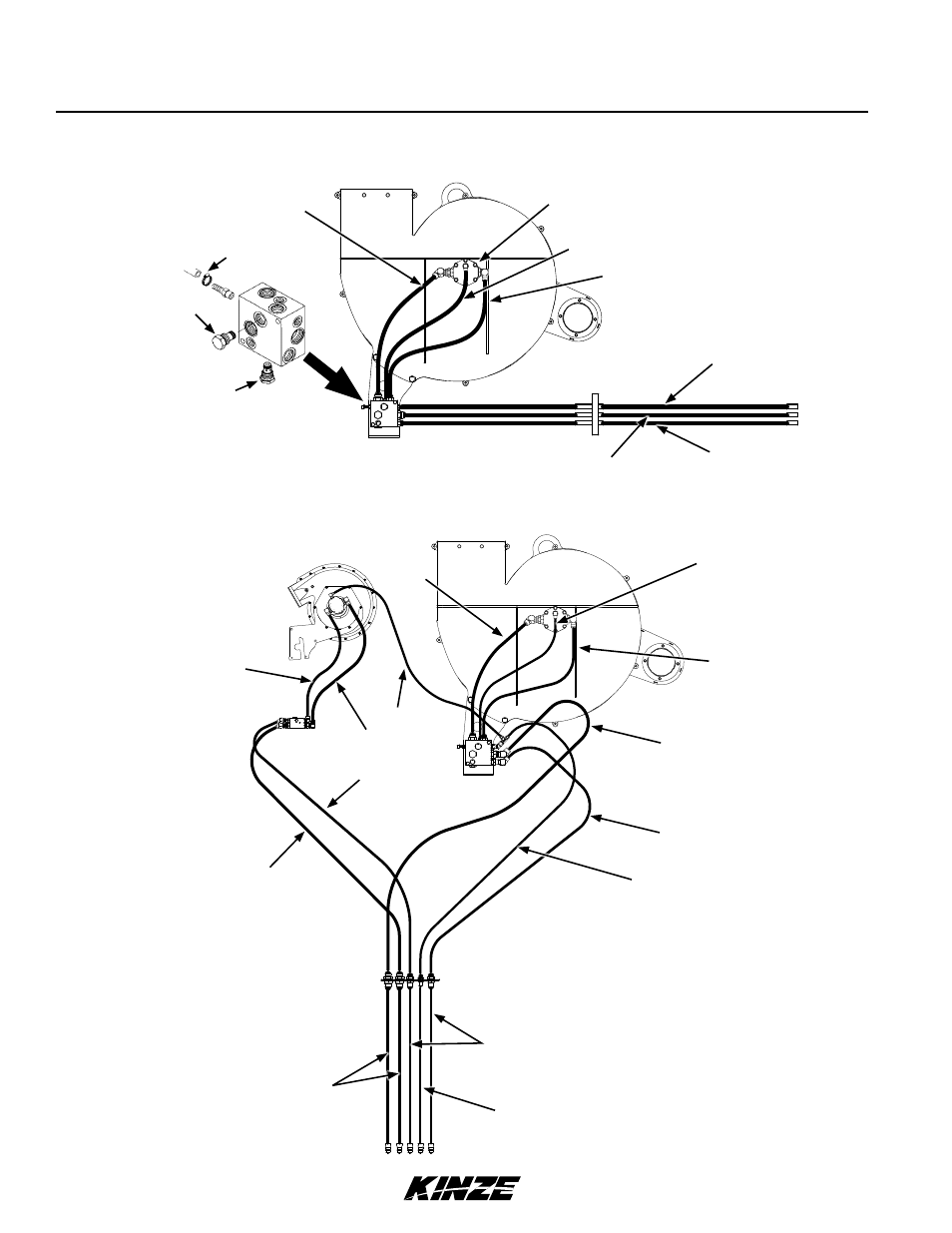

HYDRAULIC SCHEMATIC - VACUUM FAN MOTOR SYSTEM
HYDRAULIC SCHEMATIC - VACUUM FAN MOTOR SYSTEM WITH ASD SYSTEM


ITEM PART NO. DESCRIPTION QTY
1 A11338 ASSY, MOTOR 1
2 D4086 TIP, PIONEER MALE - 1/2 FNPT 3
3 A7648 HOSE ASSY, 1/4 X 324 1
4 2700-06-06 UNION, BULKHEAD 9/16-18JIC 1
5 306-06 LOCK NUT, 9/16-18 1
6 A11068 ASSY, FAN JUNCTION BLOCK 1
7 A7649 HOSE ASSY, 1/4 X 242 1
8 6502-06 ELBOW, 9/16-18 JIC SWIVEL 45 DEG 1
9 A12738 HOSE ASSY, 1/2 X 324 1
10 2700-10 UNION, BULKHEAD 7/8-14 JIC 1
11 306-10 LOCK NUT, 7/8-14 1
12
13
A12715 HOSE ASSY, 1/2 X 242 1
14
6502-10 ELBOW, 7/8-14 JIC SWIVEL 45 DEG 1
15 A12911 HOSE ASSY, 3/4 X 324 1
16 2700-12 UNION, BULKHEAD 1-1/16-12 JIC 1
17 306-12 LOCK NUT, 1 1/16-12 1
18
19 A12910 HOSE ASSY, 3/4 X 242 1
20 6502-12 ELBOW, 1-1/16-12 JIC SWIVEL 45 DEG 1
21 A3381 HOSE ASSY, 3/4 X 26 1
A1181 HOSE ASSY, 1/4 X 32 1
A12736 HOSE ASSY, 1/2 X 32 1
IP1063
JASON LUCAS
Fan motor assembly
Vacuum fan motor
valve block assembly
Case drain
(⅜" hose)
Pressure (¾" hose)
Return (½" hose)
¾ " x 26"
¾ " x 35"
⅜ " x 34"
⅜ " x 32"
½ " x 32"
¾ " x 242"
½ " x 242"
½ " x 242"
⅜ " x 246"
¾ " x 242"
½ " x 30"
½ " x 264" - 12 Row
½ " x 324" - 16 Row
⅜ " x 264" - 12 Row
⅜ " x 324" - 16 Row
¾ " x 264" - 12 Row
¾ " x 324" - 16 Row
Case drain
Pressure
Return
Drain hose
Relief valve
Check valve
