Model 3660

M0217-01

Rev. 7/11

5-45

Lubrication and Maintenance

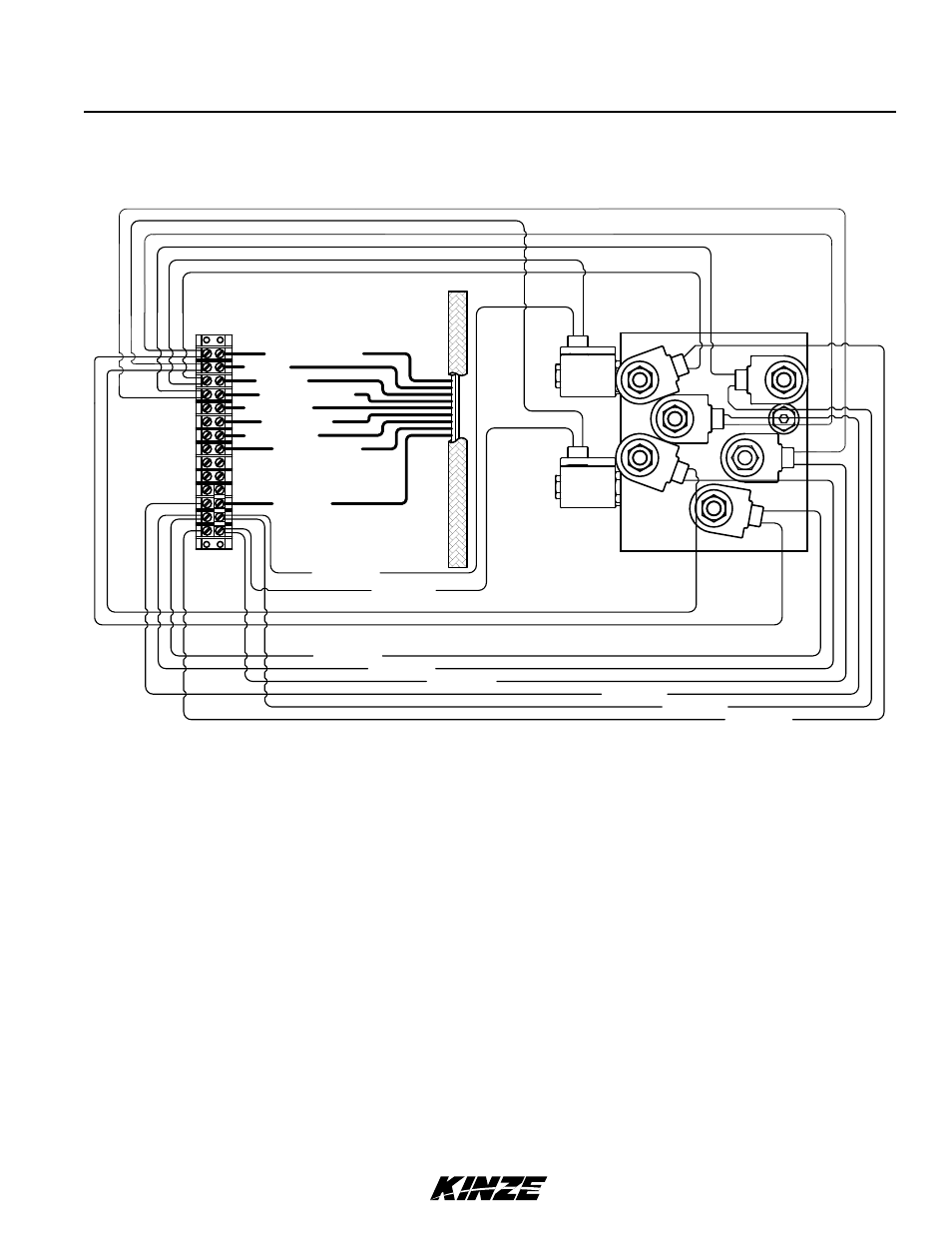

VALVE bLOCK - LOCATED ON REAR CENTER FRAME

1. YELLOW/RED - Pin “F” (Wing Lock) - Ports V3 & V4
2. RED - Pin “O” (R.H. Marker) - Ports V2 & V10
3. BLUE - Pin “H” (L.H. Marker) - Ports V1 & V9
4. BLUE/BLACK - Pin “V” (Raise To Transport) - Ports V6 & V5
5. BROWN - Pin “R” (L.H. Point Row Clutch)
6. YELLOW - Pin “S” (L.H.Two-Speed Clutch)
7. ORANGE - Pin “G” (R.H. Point Row Clutch)
8. RED/BLACK - Pin “U” (R.H. Two-Speed Clutch)
9. BLACK - (Monitor Ground) - Port V3

1. YELLOW/RED

2. RED

3. BLUE

4. BLUE/BLACK

5. BROWN

6. YELLOW

7. ORANGE

8. RED/BLACK

GROUND

9. BLACK

V10

GROUND
