M0217-01 Model 3660
2-12 Rev. 9/11
TM
Machine Operation

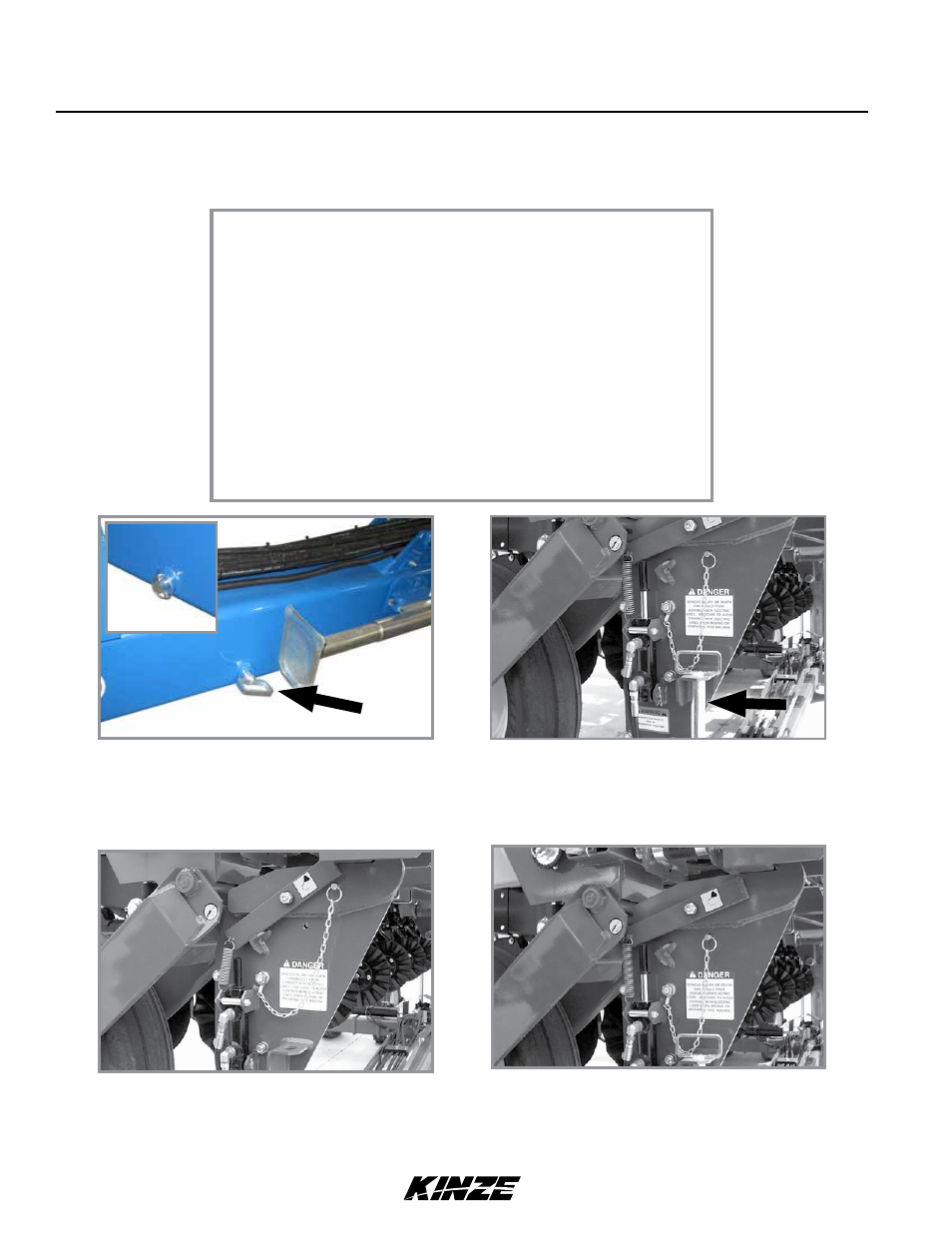

1. With tongue fully extended, planter in transport position, and tractor shut down; remove tongue safety pin and place
it in storage position.
Transport latch locking pin
Locked transport position
Transport latch locking pin
Storage position
TRANSPORT TO FIELD SEqUENCE
Position planter in a relatively flat open area. Avoid an area with furrows, etc.
SUMMARIzED TRANSPORT TO FIELD SEqUENCE
1. Remove and store tongue safety pin.
2. Remove and store transport latch locking pin.
3. Remove and store safety lockup.
4. Rotate planter to field position.
5. Lower planter on center post.
6. Raise planter using field lift.
7. Release wing locks.
8. Retract tongue.
9. Lower planter to ground.
10. Remove row marker lockups.
NOTE: Read following information for detailed instructions.
2. Remove transport latch locking pin from locked position and place it in storage location.
Tongue safety pin installed for transport Tongue safety pin stored for field operation
Snap pin
