Kinze 3660 Lift and Rotate Planter Rev. 7/14 - Manual (Page 17)

TM
Model 3660 M0217-01
Rev. 7/11 2-5
Machine Operation
TRACTOR REqUIREMENTS
Consult your dealer for information on horsepower requirements and tractor compatibility. Requirements vary with
planter options, tillage, and terrain.
A 12 volt DC electrical system is required on all sizes.

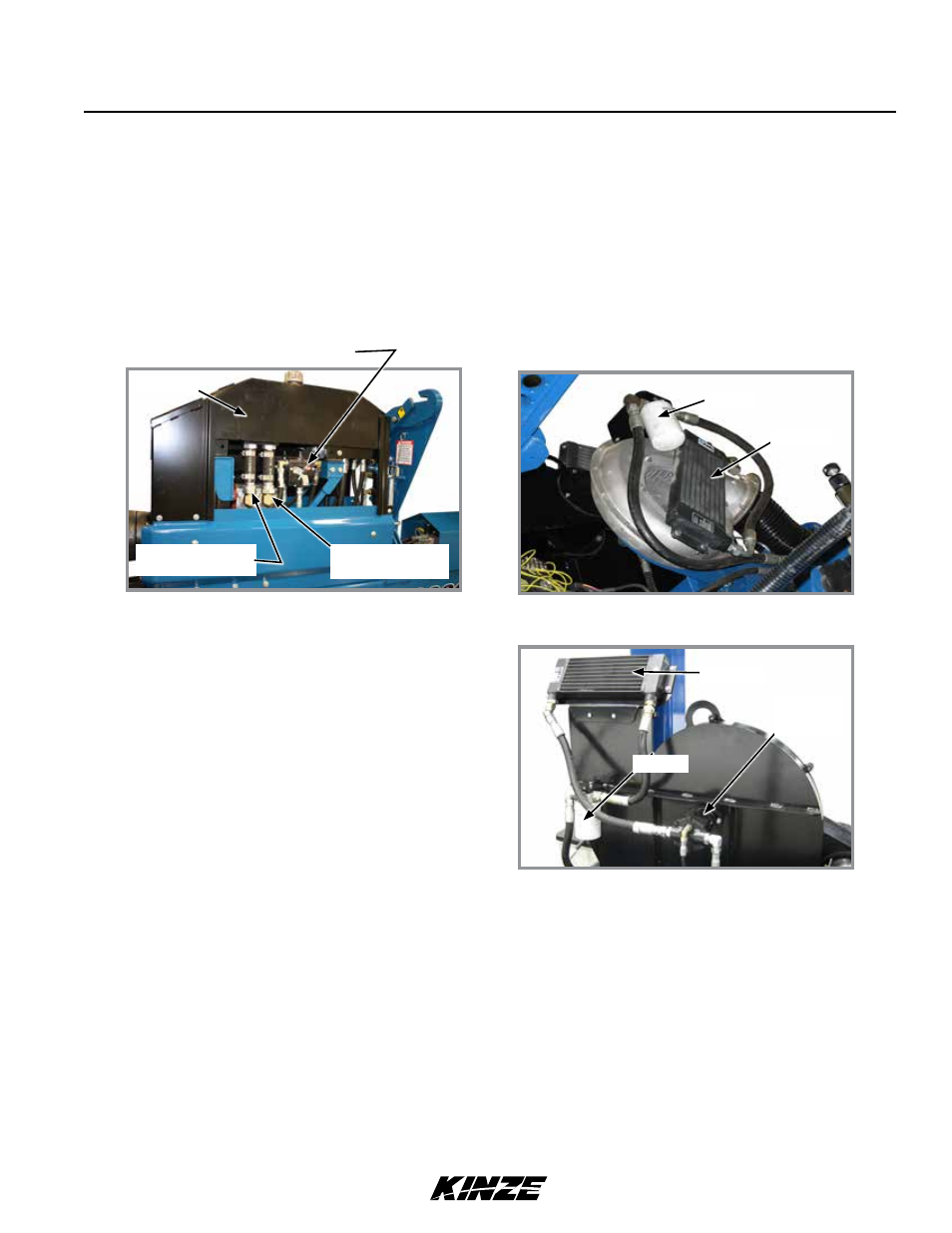

PLANTER MOUNTED PTO PUMP AND OIL COOLER OPTION
Oil cooler
Planter mounted PTO pump drive with oil coolers option is for tractors with less than required hydraulic output
needed to operate hydraulically driven vacuum and pressure fans and other planter hydraulic requirements.
A 1¾"–20 spline 1000 rpm PTO is required to operate planter mounted hydraulic pumps.
Option consists of a PTO driveshaft, 13.5 gpm/2000 psi two-section pump, 10 gallon hydraulic oil reservoir, two oil
coolers, two spin-on 10-micron oil filters, and required valves and fittings.
Vacuum fan assembly
ASD fan assembly
Oil filter
Hydraulic
motor
Oil filter
Oil cooler
PTO pumps and reservoir assembly
Pump front section
(EdgeVac fan)
Pump rear section
(ASD system fan)
Reservoir
Flow control valve - ASD fan (opposite side)
Flow control valve - EdgeVac fan (shown)
NOTICE
Clean and grease PTO shaft coupling with high-pressure
industrial coupling grease (Chevron coupling grease
or equivilant) meeting AGMA CG-1 and CG-2 Standards
each time driveshaft is installed or premature wear and
equipment failure can occur.
Chevron ® trademark is owned by Chevron Products Company.
AGMA is the acronym for American Gear Manufacturers
Association.
