REAR TRAILER HITCH
NOTICE
Rear trailer hitch is designed for use with piston pump only. Maximum
allowable hitch weight is 200 lb (90.71 kg). Do not exceed 6,000 lb
(2,721.55 kg) gross towing weight or the equivalent of a loaded 500 gal
(1,892.7 L) tank and running gear or equipment can be damaged.
NOTE: Periodically check feed hose for kinks to prevent restricted delivery rate.

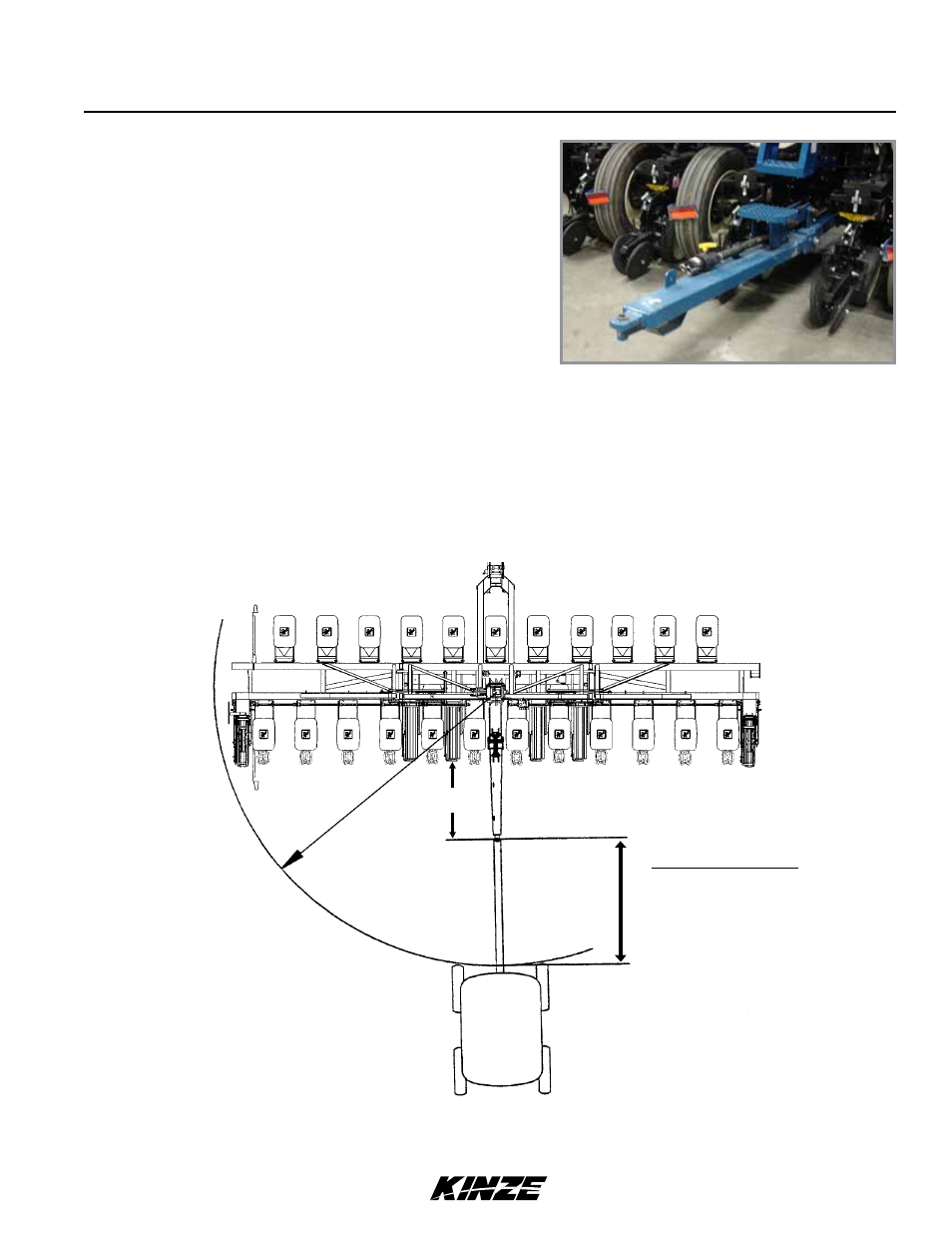

NOTE: Minimum
hitch length required
to rotate planter into
transport position.
Minimum Clearance
91" 12 Row 30"
151" 16 Row 30"
50"
500
Gallon
Tank
Rear trailer hitch can tow a 3 or 4 wheel wagon behind planter.
A spring, chain, and mounting bracket supports a 1¼" feed hose
from hitch to piston pump. This extra length or loop is required
to allow for planter to move into transport position without
stretching hose.
Trailer hitch
