M0217-01 Model 3660
5-36 Rev. 7/11
TM
Lubrication and Maintenance
3. Rotate center post slightly to provide room to install
shims.
NOTE: In situations where few shims are required,
attachment cap screws may protrude beyond stop
tap block. Install shims beneath cap screw heads to
prevent them from protruding.
4. Attach required shims and stop tap block using two
⅜ "-16 x 3" cap screws.
5. Rotate center post against stop tap block.
1. Make sure center post is rotated against stop
block. Inspect rotation cylinder for correct amount
of retraction.
A correctly retracted cylinder will have 1∕16" or less
exposed sliding surface on the rod .
If cylinder has more than 1∕16" sliding surface
exposed, shims will need to be removed from
cylinder mount.
If cylinder has no slide surface exposed, AND
center post cannot be fully rotated against stop
block, shims will need to be added to cylinder
mount.

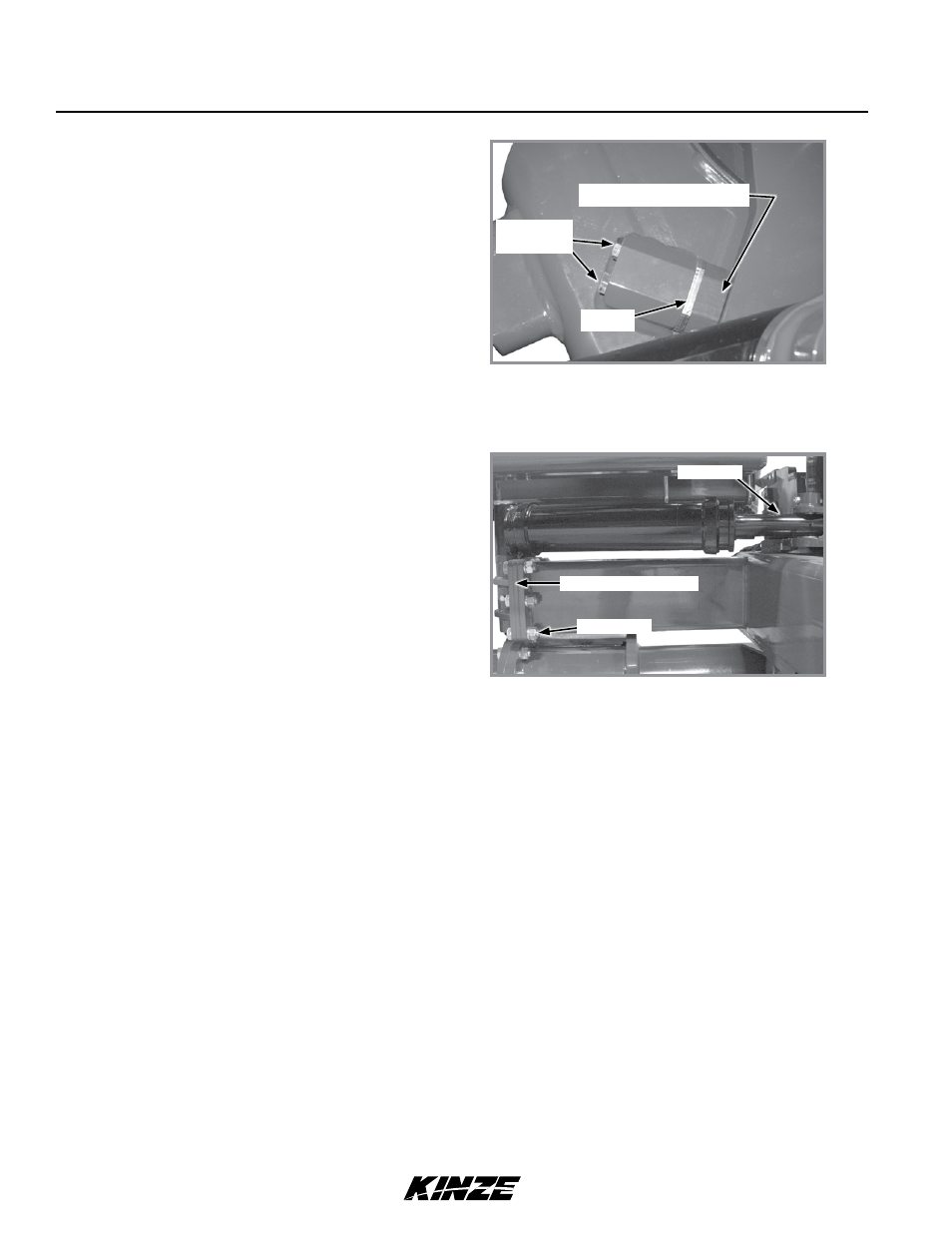

Stop tap block installation
Shims
⅜ "-16 x 3"
cap screws
Rotation stop tap block
INSPECT AND ADJUST ROTATION CYLINDER MOUNT
Rod end
Fasteners
Rotate cylinder shims
Rotate Cylinder mount adjustment
2. Disconnect rod end of cylinder and remove six sets of fasteners from cylinder mount. Add or subtract shims as
necessary.
3. Reassemble cylinder mount and connect rod end of cylinder. Inspect for correct amount of retraction.
