M0217-01 Model 3660
5-4 Rev. 7/11
TM
Lubrication and Maintenance

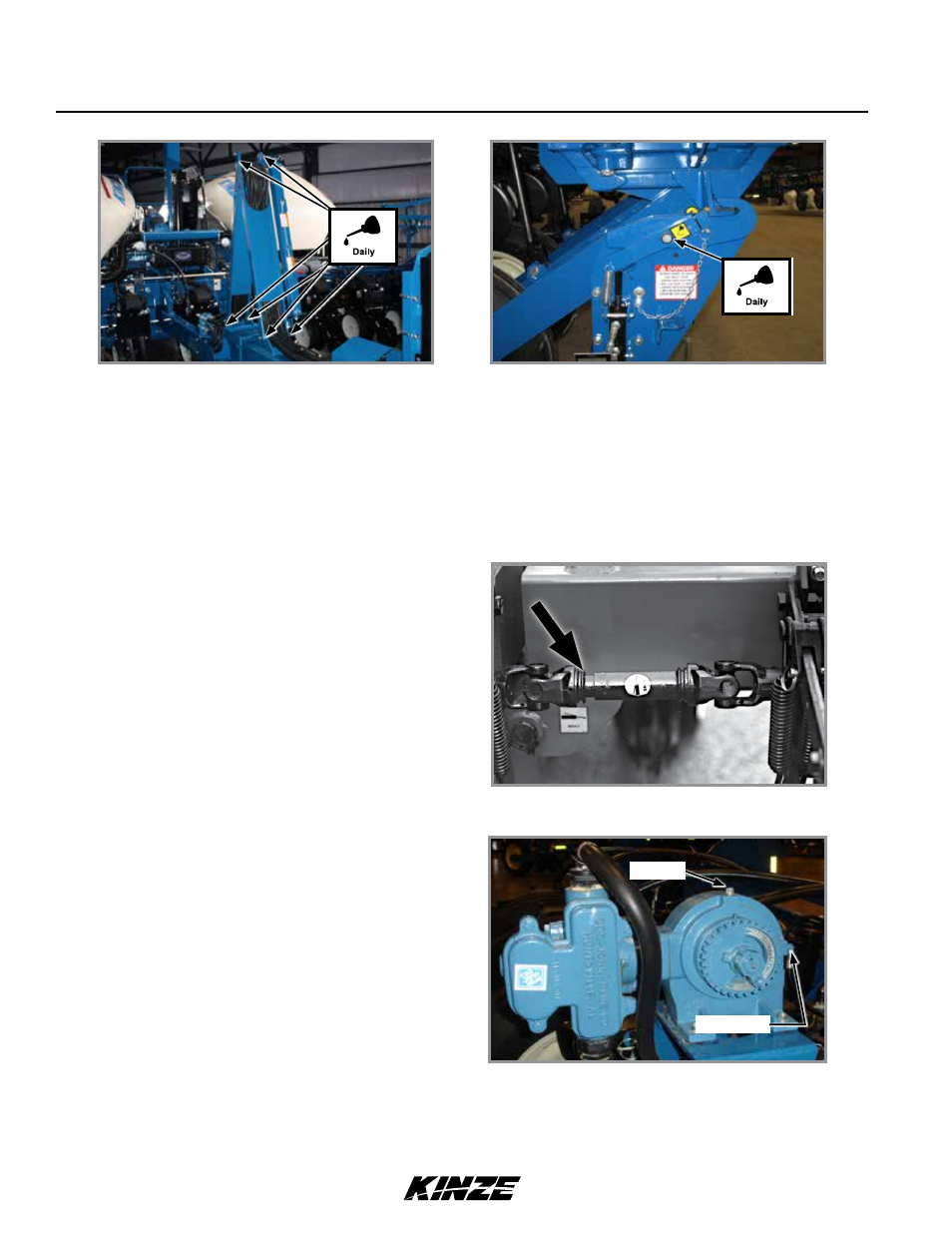

Transport latch (1 location) Hose take-up (6 locations)
Lubricate all U-joint slides daily with a high quality
lubricant.
U-JOINT SLIDES
U-joint slide
Plug
LIqUID FERTILIzER PISTON PUMP
CRANKCASE OIL LEVEL
Check crankcase oil daily and maintain at oil level
check plug. Fill as needed with EP 90 weight gear oil.
Total oil capacity is approximately ¾ pint.
Refer to operator and instruction manual supplied with
pump and flow divider for more information.
Piston pump oil fill and check plug locations
Check plug
Fill plug
Center post is clad with stainless steel. Keep stainless steel surface clean and free of any lubrication to prolong
service life. See “Wear Pad Adjustment/Replacement” for more information.
CENTER POST
NOTICE
Any oil or grease on center post and poly wear pads will attract dirt
and accelerate wear. Do not lubricate center post and poly wear pads.
