Lubrication and Maintenance
GREASE FITTINGS
Parts equipped with grease fittings should be lubricated at frequency indicated with an SAE multipurpose grease.
Clean fitting thoroughly before using grease gun. Frequency of lubrication recommended is based on normal operating
conditions. Severe or unusual conditions may require more frequent attention.

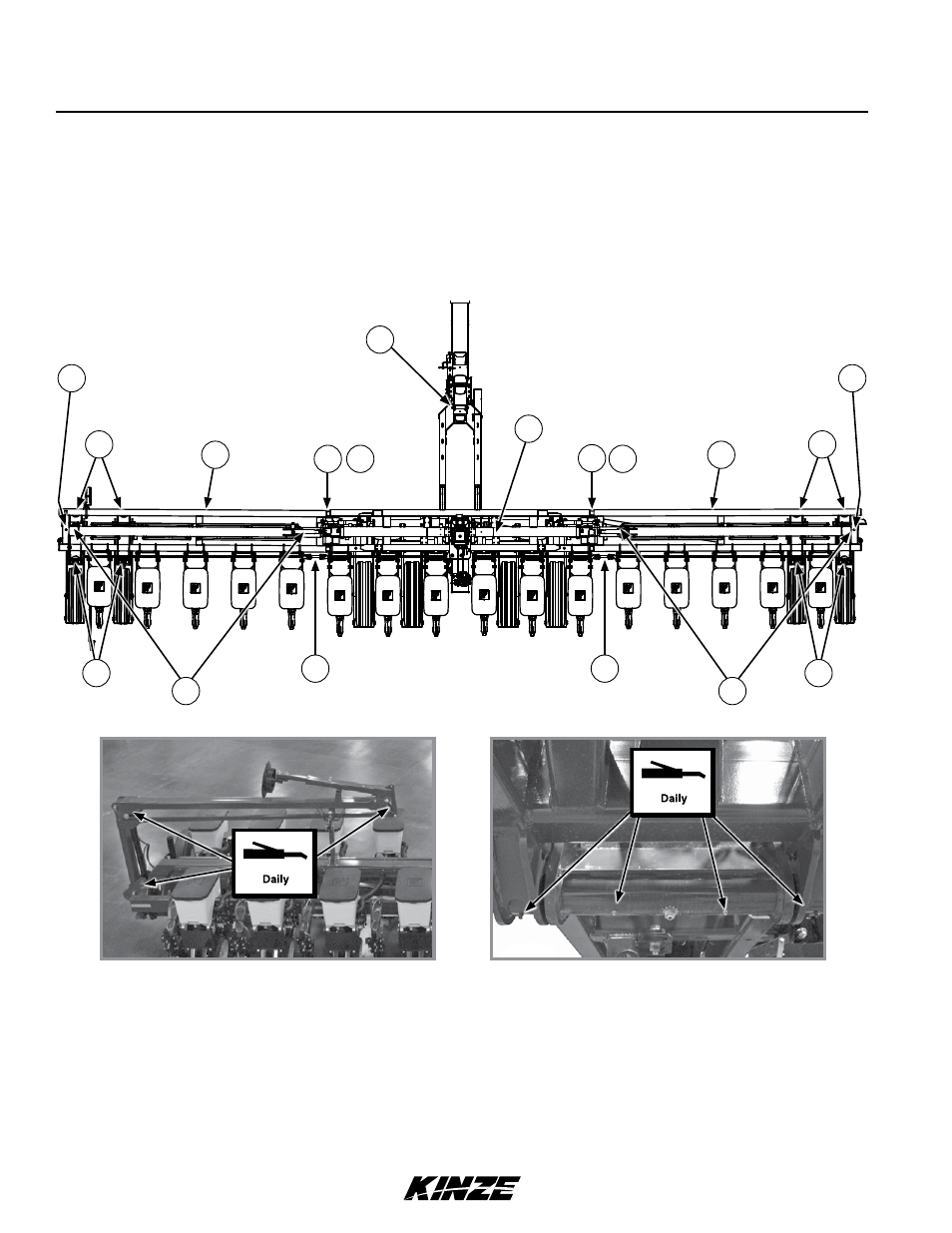

NOTE: Numbers on illustration below correspond to photos on following pages showing lubrication
frequencies.
1. Row marker assemblies
3 fittings per assembly - 2 assemblies
2. Wing hinges
4 fittings per hinge - 2 hinges
5 5
1 1
2 2
3 3
4 4
6 6
7
8 8
9 9
10
