Machine Operation

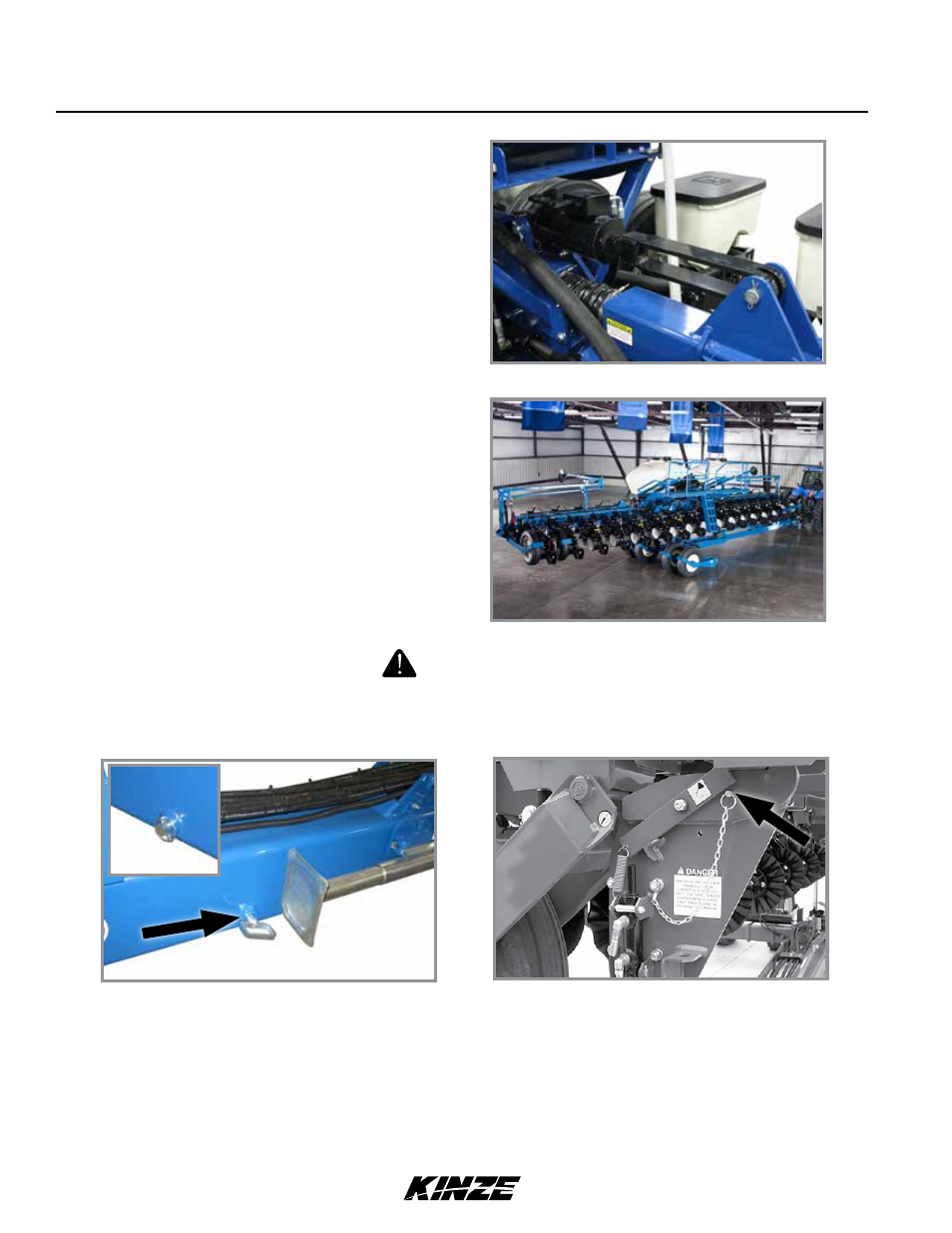

Transport position
WARNING
Uncontrolled movement of equipment can cause loss of control
and could result in death, serious injury, or damage to property and
equipment. Install all safety pins before transporting equipment.
6. Hold raise/wing lock switch to RAISE and operate
hydraulic control to fully raise planter on center
post.
7. Hold rotate/tongue switch to ROTATE and operate
hydraulic control to rotate planter to transport
position. Transport latch automatically engages.
8. Shut down tractor and remove safety lockup from storage location on hose take-up. Install safety lockup at center
post as shown. Make sure top latch is around cylinder rod and fastened with safety pin, and that lower end is
secured with detent pin.
9. Remove hitch safety pin from storage location and install in hitch.
10. Remove transport latch locking pin from storage location and install in transport latch.
Wing lock engaged
4. Hold raise/wing lock switch to WING LOCK and
operate hydraulic control to engage wing locks.
5. Operate hydraulic control to lower planter using
field lift.
Tongue safety pin installed
Snap pin
Transport latch locking pin installed
