M0217-01 Model 3660
2-14 Rev. 9/11
TM

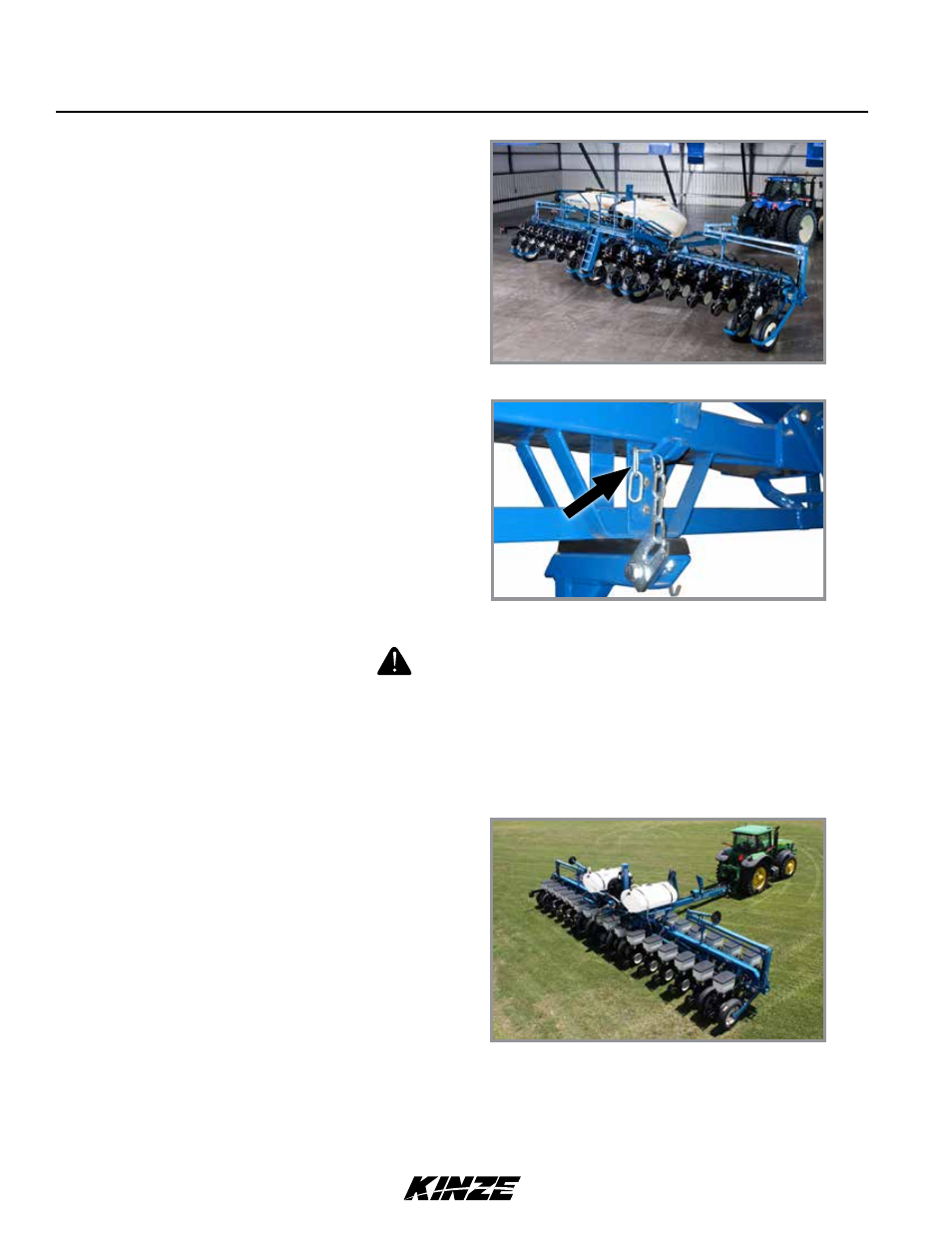

Machine Operation
10. Remove row marker lockups.
Row marker lockup
NOTICE
Raise planter out of ground when making sharp turns or backing up
or equipment damage may result.
FIELD OPERATION
Raising and lowering planter is performed using field
lift (axle rockshaft) during field operation.
NOTE: Field lift cylinders are rephasing cylinders
and it is necessary to fully lower planter to rephase
them. Cylinder stops can not be used.
Planting position
DANGER!
Contacting or coming close to power lines or other high energy
sources will cause death or serious injury. Keep away from power
lines or high energy sources at all times.
PLANTING SPEED
Planters are designed to operate in a speed range of 2 to 8 mph (3.2 - 12.9 kph). Higher ground speeds generally cause
more variation in seed spacing. Speeds above 5.5 mph (8.8 kph) are typically not recommended.
8. Operate hydraulic control to raise planter using
field lift.
9. Hold rotate/tongue switch to TONGUE and operate
hydraulic control to fully retract tongue. Tongue latch
automatically engages.
Field lift/tongue retraction
