Kinze 3660 Lift and Rotate Planter Rev. 7/14 - Manual (Page 70)

M0217-01 Model 3660
3-26 Rev. 6/14
TM

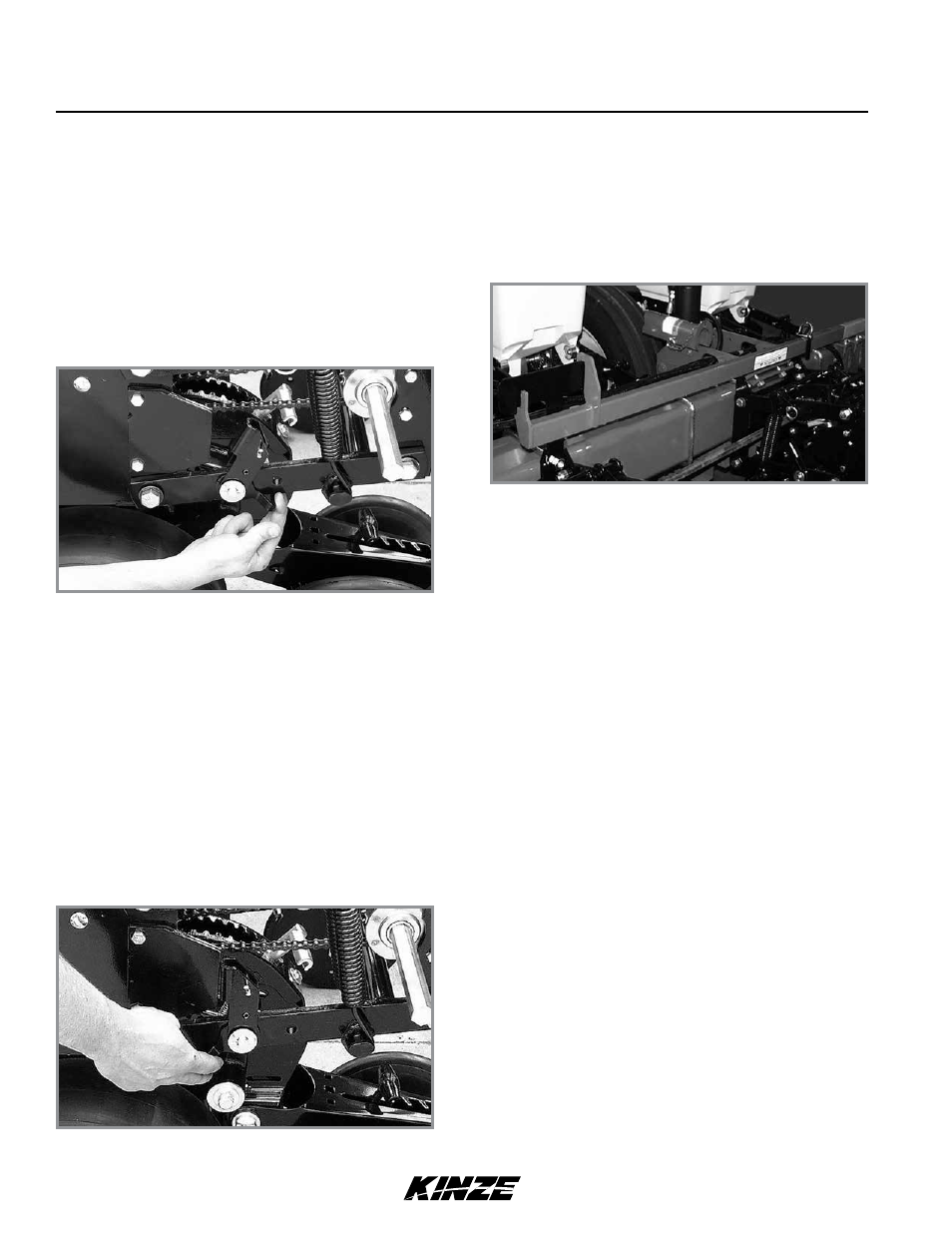

Row Unit Operation
Lift lever in storage location
To lock in raised position:
1. Set row unit down pressure springs to mini-
mum setting.
2. Lower the planter to the planting position.
3. Empty seed hoppers.
4. On each push row unit lockup, flip the
spring tab forward.
5. Using the lift lever, raise the push row unit
to allow the spring loaded lockups to snap
into locked position under the row unit
stops.
6. Repeat Steps 4 and 5 on remaining push
row units.
To release lockups:
1. Lower the planter to the planting position.
2. On each push row unit lockup, flip the
spring tab rearward.
3. Using the lift lever, raise the push row unit
to allow the spring loaded lockups to snap
out of locked position. Lower row unit to the
ground.
4. Repeat Step 3 on remaining push row
units.
