Kinze 3660 Lift and Rotate Planter Rev. 7/14 - Manual (Page 128)

M0217-01 Model 3660
5-48 Rev. 7/11
TM
Lubrication and Maintenance

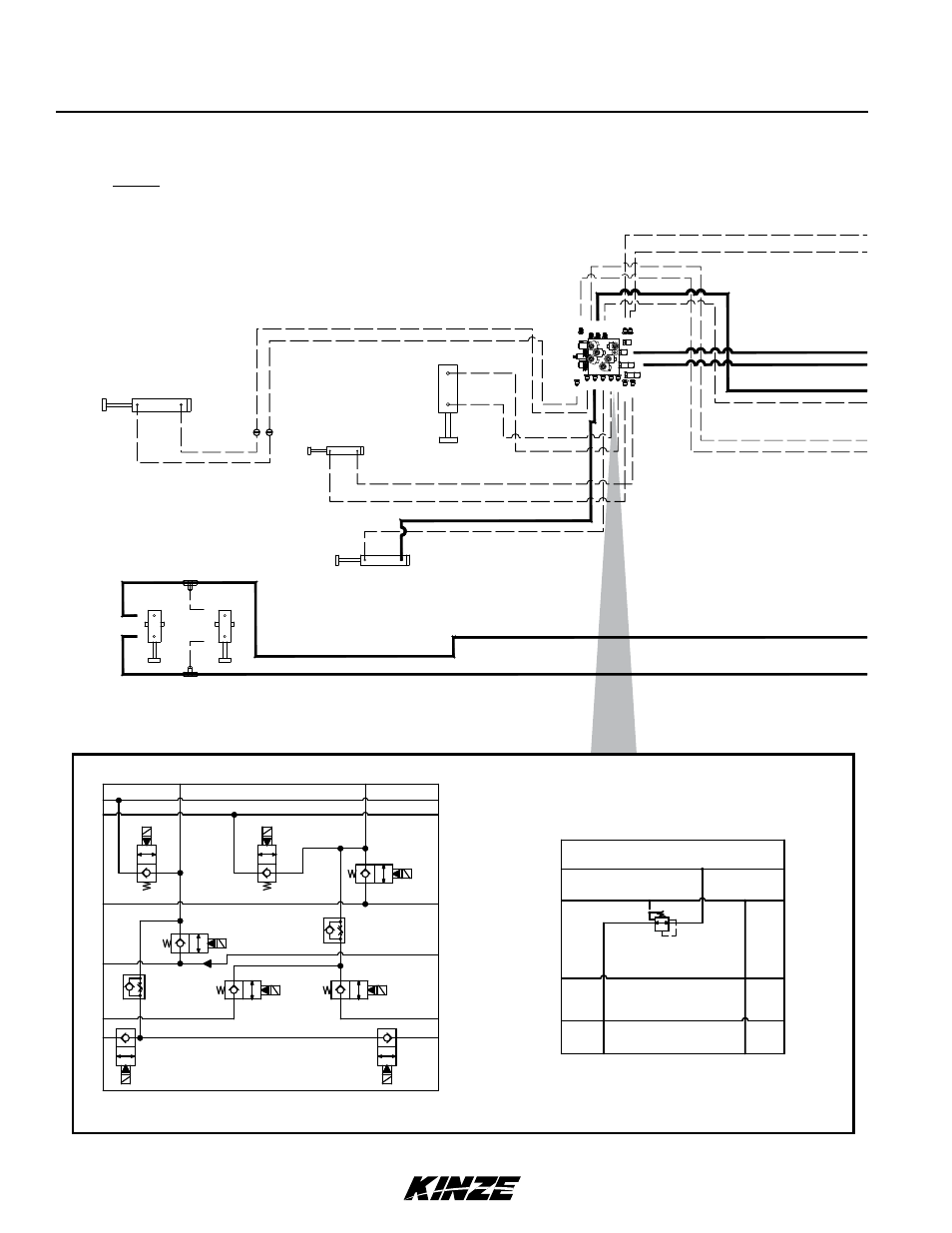

HYDRAULIC SYSTEM SCHEMATIC (Continued)
16 Row Shown (Two Wing Lift Cylinders Per Wing)
12 Row (One Wing Lift Cylinder Per Wing)
B1
F2
E2
E3
F3
F1 E1
F3
E3
V1
AUX 1
AUX 2
B6
V4
V6 V5
A5
A1
A8
V8 V3
B8
V2
B5
A7
B7
A4
B4
V7
A6
B9
A9
V1
V9 V10
TRANSPORT
LIFT
TRANSPORT
LIFT
WING LOCK
WING LOCK
L.H.
MARKER R.H.
MARKER
R.H. MARKER L.H. MARKER
Valve block -
Located on rear center frame
ITEM PART NO. DESCRIPTION QTY
1 A13523 SUB-ASSY, HYD MANIFOLDS 1
2
3
A1025 HOSE ASSY, 3/8 X 148 2
4
A12057 HOSE ASSY, 3/8 X 106 1
5
A1097 HOSE ASSY, 3/8 X 288 2
6
A3103 HOSE ASSY, 3/8 X 316 2
7
A3137 HOSE ASSY, 3/8 X 140 2
8
A3157 HOSE ASSY, 3/8 X 70 2
10
A12071 HOSE ASSY, 3/8 X 356 2
11
A12060 HOSE ASSY, 3/8 X 116 2
12
A12061 HOSE ASSY, 3/8 X 148 2
14
A1093 HOSE ASSY, 3/8 X 230 2
15
A1008 HOSE ASSY, 3/8 X 110 1
16
A12062 HOSE ASSY, 3/8 X 212 2
18
A1086 HOSE ASSY, 3/8 X 28 4
9
A3127 HOSE ASSY, 3/8 X 58 4
21
22
23
6400-08 ADAPTER,3/4-16 JIC,3/4-16 O-RING 10
6801-08 ADJ 90 EL, 3/4-16 X 3/4-16 O-RING 8
6801-LL-08 ADJ EL,3/4-16 X3/4-16 O-RING X-LONG 1 20
2704-08 TEE, BULKHEAD RUN 3/4-16 JIC 4
13
306-08 LOCK NUT, 3/4-16 7
A6699 LIGHT, DOUBLE, RED/AMBER 1
A6700 LIGHT, DOUBLE, AMBER/RED 1
17
19
24
2701-08 EL, 90° BULKHEAD 3/4-16 JIC 2
2703-08 TEE, BULKHEAD 3/4-16 JIC 1
RIGHT WING LOCK
CYLINDER
LEFT WING LOCK CYLINDER
RIGHT DOWN
PRESSURE CYLINDER
LEFT DOWN PRESSURE CYLINDER
RIGHT MARKER CYLINDER
LEFT MARKER CYLINDER
FROM HITCH
FROM HITCH
NOTE: See R.H. Marker
Assembly for additional
information.
NOTE: See L.H. Marker
Assembly for additional
information.
TRANSPORT/LIFT CYLINDER
WHEEL
TOWER
WHEEL
TOWER
MAIN LIFT
CYLINDERS
C1
A1 B1
D1
D2 D3
A5
B5
D1
C1 D1
E3 F3
E2
F2
C1 D1
F3 E3
A4 B4
B5 A5
B4
A4
B5
A5
A6 B6
A1
B1
A7 B7 A9 B9
F3 E3
F3 E3
E1
F1
A5
D1 A5
D1 B5
D1 B5
D1
