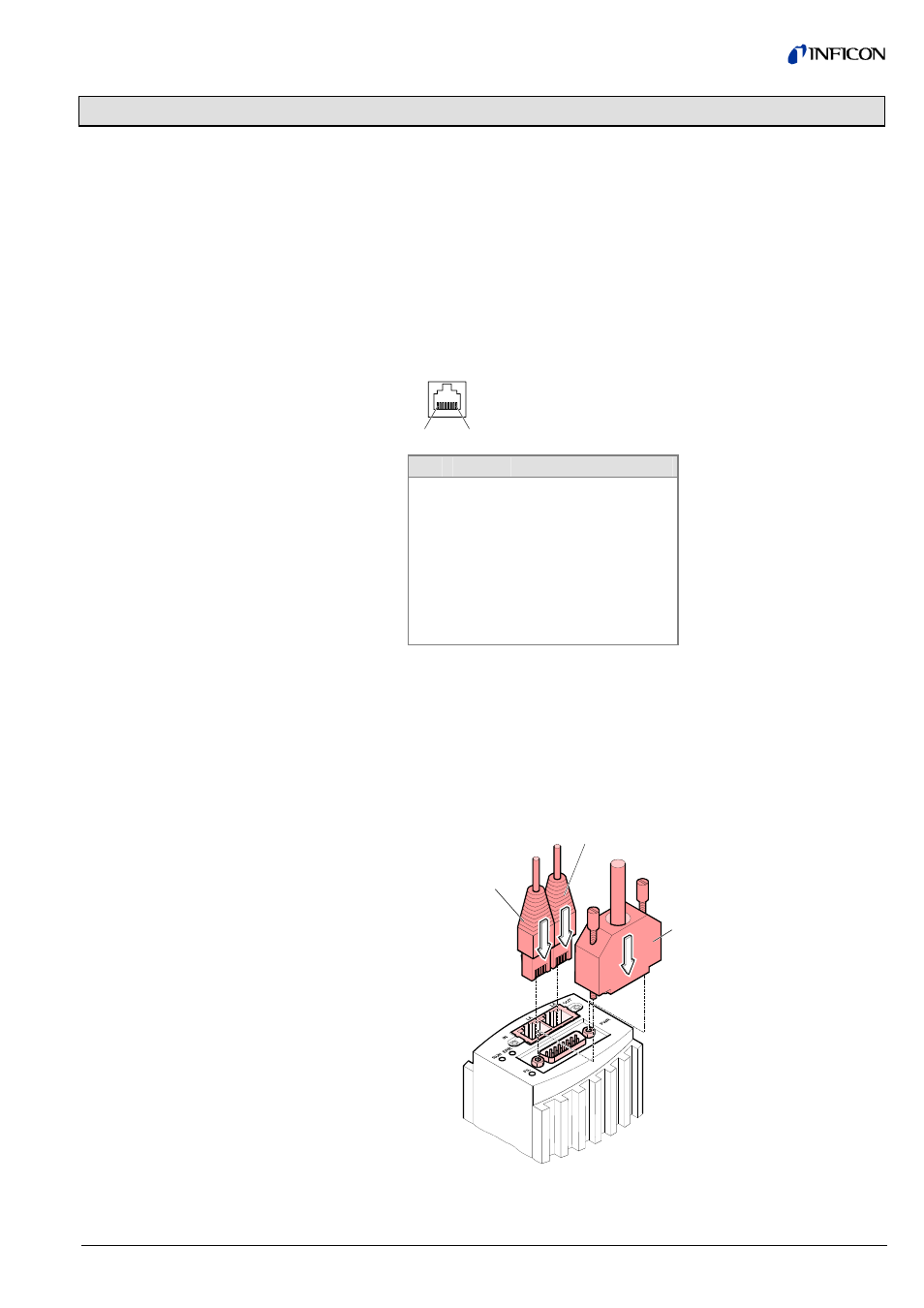

2 Interface Connection
For operating the BPG 402 gauge via EtherCAT, two interface cables conforming
to the EtherCAT standard are required.
If no such cables are available, make two according to the following indications.
Ethernet Patch Cable or Crossover Cable (CAT5e quality) with FCC68 connector.

Pin assignment:
8 1
FCC68, 8-pin,
male, soldering side
Pin Signal Description
1 TD+ Transmission Data +
2 TD- Transmission Data -
3 RD+ Receive Data +
4 nu not used
5 nu not used
6 RD- Receive Data -
7 nu not used
8 nu not used
Pin assignment of the D-Sub 15-pin sensor connector according to the
respective operating manual (
→  [1], [2], [3]).

Plug the EtherCAT (and sensor) cables connector into the gauge: From the
previous device the cable connected to OUT port has to be connected to the
BPG402 port. And the cable from the BPG402 port has to be
connected to the next device's port.
Sensor cable
FCC68 cable
port
FCC68 cable
port
Making an EtherCAT interface
cable
Cable type
Procedure
