If "High Trip Source Index" is 0x800E1100 or 0x800F1100 the High Trip Point is
equal with the value referenced in "High Trip Point Limit".
The value defined in "High Trip Point Limit" is compared with the pressure value
referenced by the "Source Index" parameter.
If "Low Trip Source Index" is 0x800E1400 or 0x800F1400 the Low Trip Point is
equal with the value referenced in "Low Trip Point Limit".
The value defined in "Low Trip Point Limit" is compared with the pressure value
referenced by the "Source Index" parameter.

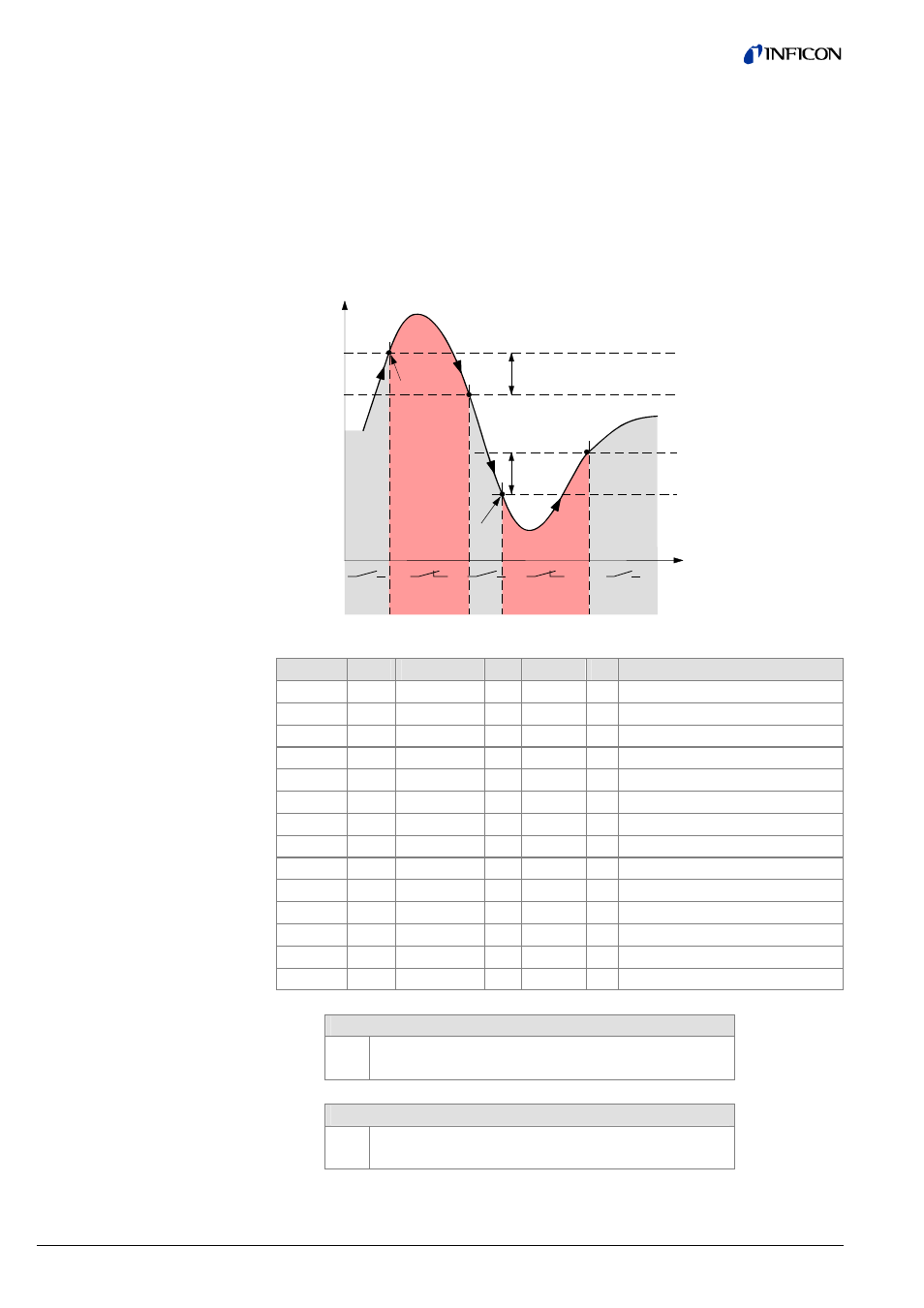

High Trip Point
Time t
in-
active
active
in-
active
active
Low Trip Point
Measurement signal
(Pressure p)
Low Trip
Hysteresis
High Trip
Hysteresis
in-
active
Index
SI
DataType
NV Access PM Name
800E
0x01 BOOL
x
RW
High Trip Enable TP1
0x02 BOOL
x
RW
Low Trip Enable TP1
0x04 BOOL
x
RW
Override Enable TP1
0x05 BOOL
x
RW
Override High Trip TP1
0x06 BOOL
x
RW
Override Low Trip TP1
0x11 REAL
x
RW
High Trip Point Limit TP1
0x12 UDINT
x
RW
High Trip Source Index TP1
0x13 REAL
X
RW
Percentage High Trip Source TP1
0x14 REAL
x
RW
Low Trip Point Limit TP1
0x15 UDINT
x
RW
Low Trip Source Index TP1
0x16 REAL
x
RW
Percentage Low Trip Source TP1
0x17 REAL
x
RW
High Trip Hysteresis TP1
0x18 REAL
x
RW
Low Trip Hysteresis TP1
0x1A UDINT
x
RW
Source Index TP1
High Trip Point
0
1
Disable
Enable
Low Trip Point
0
1
Disable
Enable
4.5.2 Configuration Trip
Point 1
Subindex 0x01
Subindex 0x02
