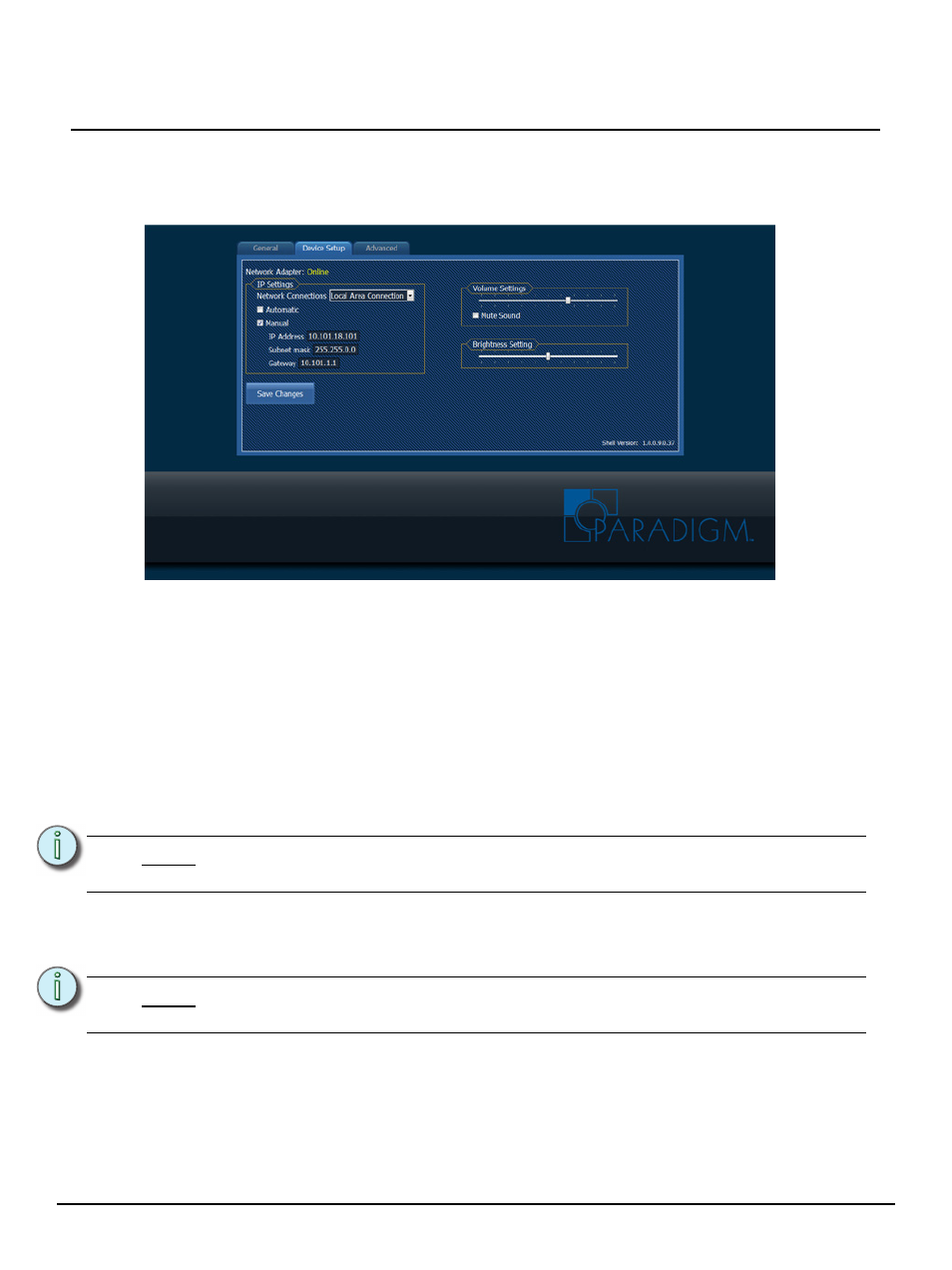

Device Setup Tab
Common settings that are required to set up your Paradigm
®
18 inch Touchscreen including the
Network Connection, IP Address, Subnet mask, Gateway, and Volume and Brightness Settings are
available on the “Device Setup” tab.
Network Adaptor and IP Settings
The “Network Adapter” status on the top of the screen indicates whether a valid Paradigm network is
Online or Offline.
The section for “IP Settings” provides TCP/IP v4 settings for the Paradigm 18 inch Touchscreen.
• Network Connections - always defaults to “Local Area Connection” which is the only network the
P-TS18 should be connected.
• Allows for either Automatic or Manual IP settings. Default setting is Manual (IP address:
10.101.18.101, Subnet mask: 255.255.0.0, Gateway: 10.101.1.1).
• Select Automatic when LinkLocal IP (no DHCP) or DHCP.
• Select Manual to manually set the IP address, Subnet mask, and Gateway IP of the
Touchscreen. With “Manual” selected, touch inside each field to set the numeric values.
Volume and Brightness Settings
Adjust the volume and brightness settings using the provided sliders. To mute the volume for the
Touchscreen, select the “Mute Sound” checkbox beneath the Volume Settings slider.
N o t e : Save any changes before leaving this tab or the changes will be lost. Touch the
[Save Changes] button to save.
N o t e : Save any changes before leaving this tab or the changes will be lost. Touch the
[Save Changes] button to save.
