E T C S e t u p a n d C o n n e c t G u i d e

Paradigm

®

18 inch Touchscreen

Paradigm 18 inch Touchscreen Setup and Connect Guide

Page 2 of 12

Electronic Theatre Controls, Inc.

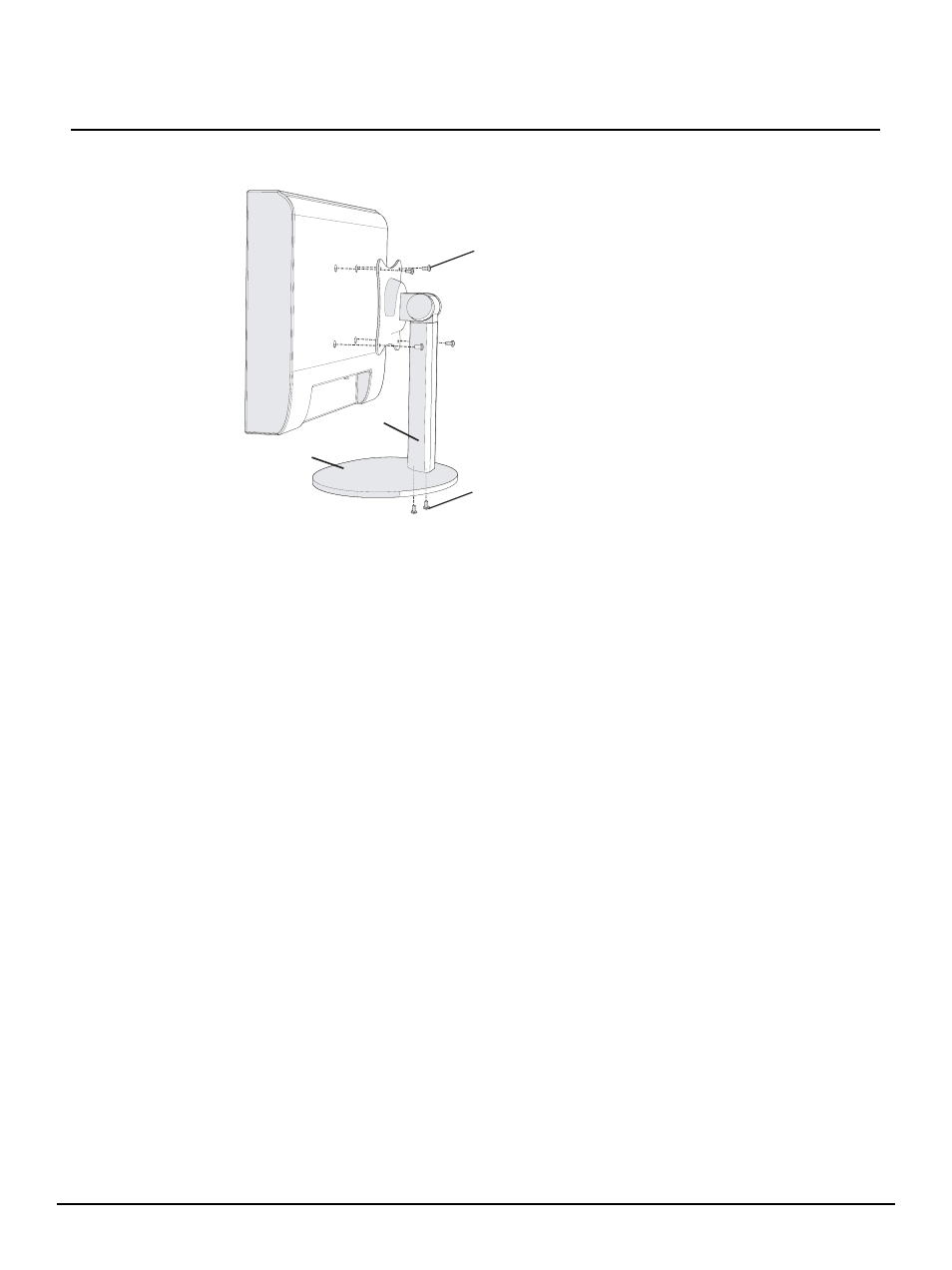

Table Top Stand Mounting

The table top stand is provided with the Paradigm

®

18 inch Touchscreen.

Step 1:

Locate the accessory box from the Touchscreen packaging. This accessory box includes

the table top stand bracket and hardware, including rubber feet and screws. The

remaining hardware and parts included will be used later in the installation.

Step 2:

Locate the base for the stand in the main packaging with the Touchscreen.

Step 3:

Insert the table top stand bracket into the base, pressing it down firmly until the two pieces
are fully mated. Reference the graphic above to determine the direction that the bracket
should face for installation.

Step 4:

Secure the two pieces together (underside of the base) using two screws (provided).

Step 5:

Locate the Touchscreen and remove the four screws from the center back side. Discard
these screws as they are no longer needed.

Step 6:

Locate the bag of four screws from the Touchscreen accessory box.

Step 7:

Align the Touchscreen to the stand bracket, securing the two pieces together using the
four screws.

Step 8:

Locate the international power supply and cables from the Touchscreen accessory box.

Step 9:

Insert the power supply round plug into the Touchscreen “12V DC IN” receptacle, located
on the back of the unit. Tighten the lock ring around the receptacle.

Step 10: Using the appropriate power cable adaptor that is required for your region, insert the

receptacle end into the power supply and the plug end into the power source.

Step 11: Connect the Touchscreen to the Paradigm network by plugging an Ethernet cable into the

P-TS18 and then into a Network connection that is connected to the Paradigm Central
Control Server (P-CCS).

Step 4

Step 7

stand base

stand

bracket

Stand assembly is

required prior to

attaching the

Touchscreen.
