Step 3: Select the drive to save the log files from the available drives in the dialog, then touch the
[Next] button to continue.
Step 4: When the log files have saved successfully, touch the [Exit] button to close the dialog and
return to the “Advanced” tab.
[Touch Calibration]
The Paradigm
®
18 inch Touchscreen has been calibrated at the factory, prior to shipment. When field
calibration is required, use the tools provided in the [Touch Calibration] feature.
Step 1: Touch the [Touch Calibration] button. An “eGalex Touch” dialog displays.
Step 2: Navigate to the “Tools” tab and select [4 Points Calibration]. The display will change to
a white background with a red circle in the bottom left corner.
[Set Password]
By factory default, a password is required to access the “Advanced” tab as well as to uninstall the P-
VTS software. The factory set password is “4116”.

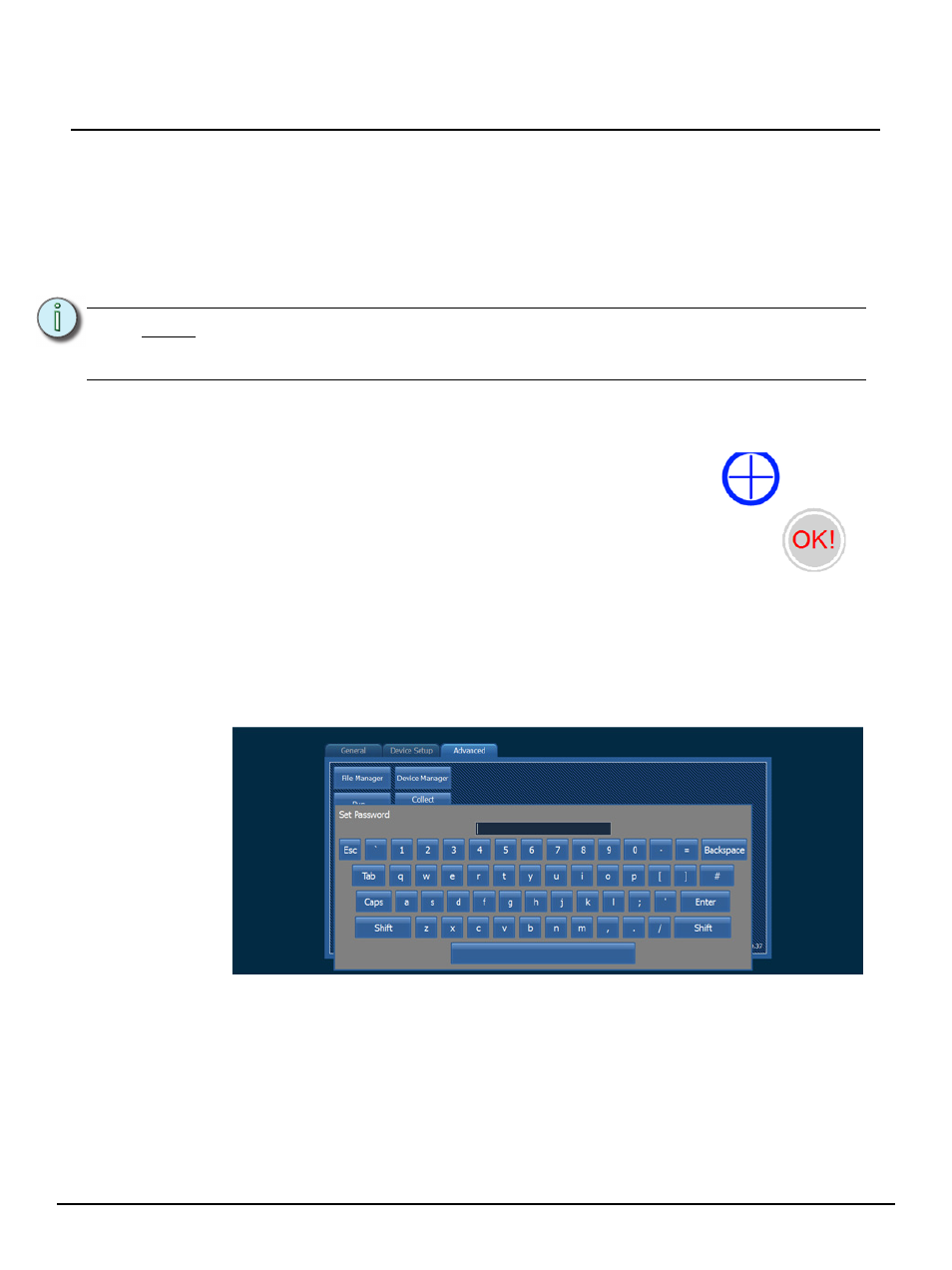

Step 1: To specify a user configurable password, touch the [Set Password] button. The
alphanumeric keypad displays.
Step 2: Enter the new password and touch the [Enter] button to close the keypad. A dialog will
display confirming the password is set.
Password Enabled
The status of the “Password Enabled” checkbox next to the [Set Password] button determines whether
or not a password is required anywhere in the Application Shell. By default, this checkbox is enabled.
To disable the password requirement, touch the checkbox, leaving the box unchecked.
N o t e : The touch calibration procedure outlined below is a simple calibration tool that can be
used as necessary. If further calibration is required, contact ETC Technical Services
for assistance.
Step 3: Using your finger, touch the center of the red circle and do not
release the touch until the status displays “OK”. The previously
red circle changes to blue and an audible beep may be heard,
depending on volume settings.
Step 4: Another red circle will display in the bottom right corner of the
Touchscreen. Repeat the process until the entire test has
complete for each corner of the display.
