5.2.1. Manual Mode
Manual Mode allows the oven to operate continuously at a fixed temperature until turned off. Use
Manual Mode (Figure 5) to control Set Point, High Limit Value and four relays.
Better explanation:
5.2.1.1. Display Manual Mode
From the Select a Mode screen, press or to navigate to Manual Mode . Press to select
the highlighted option. Press to exit from Manual Mode and to stop all outputs.
5.2.1.2. Start Manual Mode
1. Navigate to and highlight Manual Mode .
2. Press to display the Manual Mode screen.
3. Manual Mode allows you to set the setpoint (SP), and the High Limit set point (HLSP).
a. Press or to navigate through the menu.
b. Select and highlight the menu item.
c. Press .
d. Press or to change values.
e. Press to select the value.
4. Manual Mode allows you to set event relay status
a. Press or to navigate to and select the appropriate relay (Figure 5).
b. Press to toggle the relay on and off.
5. Once all parameters are set, press or to navigate to and highlight Start .
6. Press to start the process.
a. Press to abort the process.
Four relay LEDs
Relay navigational boxes

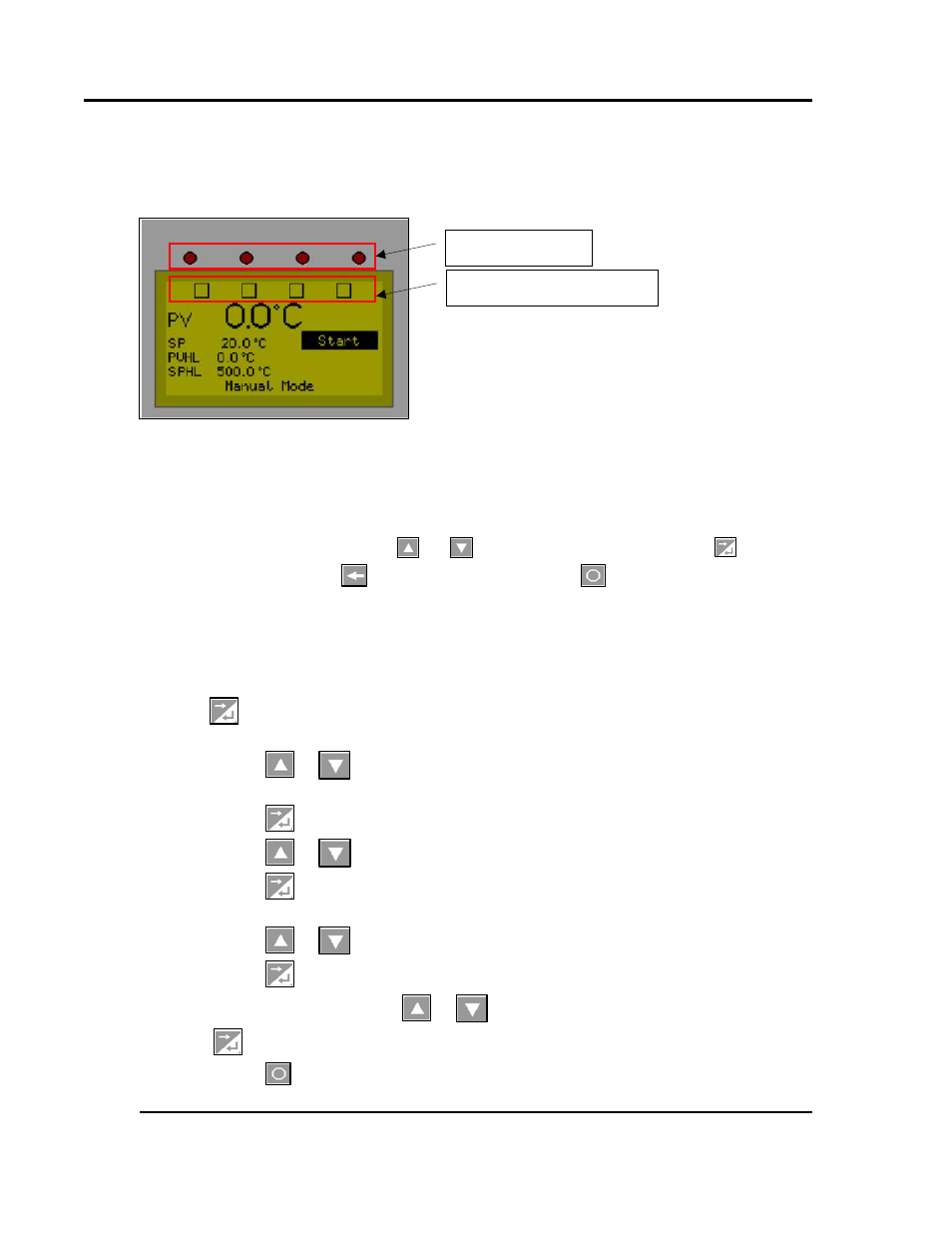

Figure 5. Manual Mode Display Screen.
