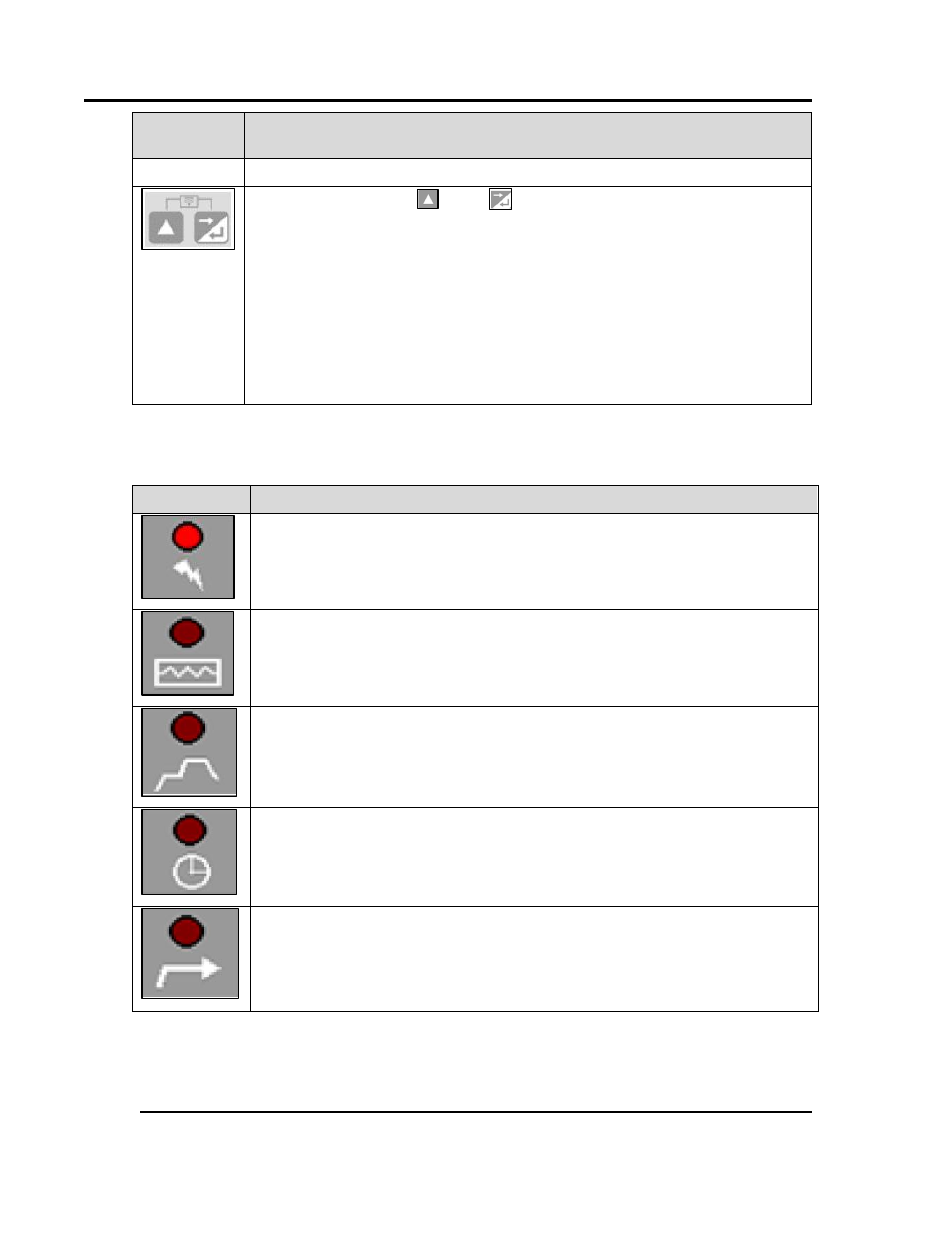

Keypad
Button Function
not in the High Alarm State (LED indicator turned OFF).
and to move up one menu level: Simultaneously press

From Select a Mode, pressing both moves to the main menu.

From Sub-menus, press both several times to reach the main menu.

NOTE: Simultaneously pressing these switches updates the instrument to
the value displayed. If editing a parameter, ensure the current
(highlighted) parameter value is correct before pressing.
Table 9. LEDs and Functions.
LED
Function
Power LED: When lit, indicates power to the device.
Heater LED: When lit, indicates primary heating output is active.
Profile LED: When lit, indicates a profile is currently running.
Timer LED: When lit, indicates a timer is currently running.
Manual LED: When lit, indicates the controller is in Manual Mode.
