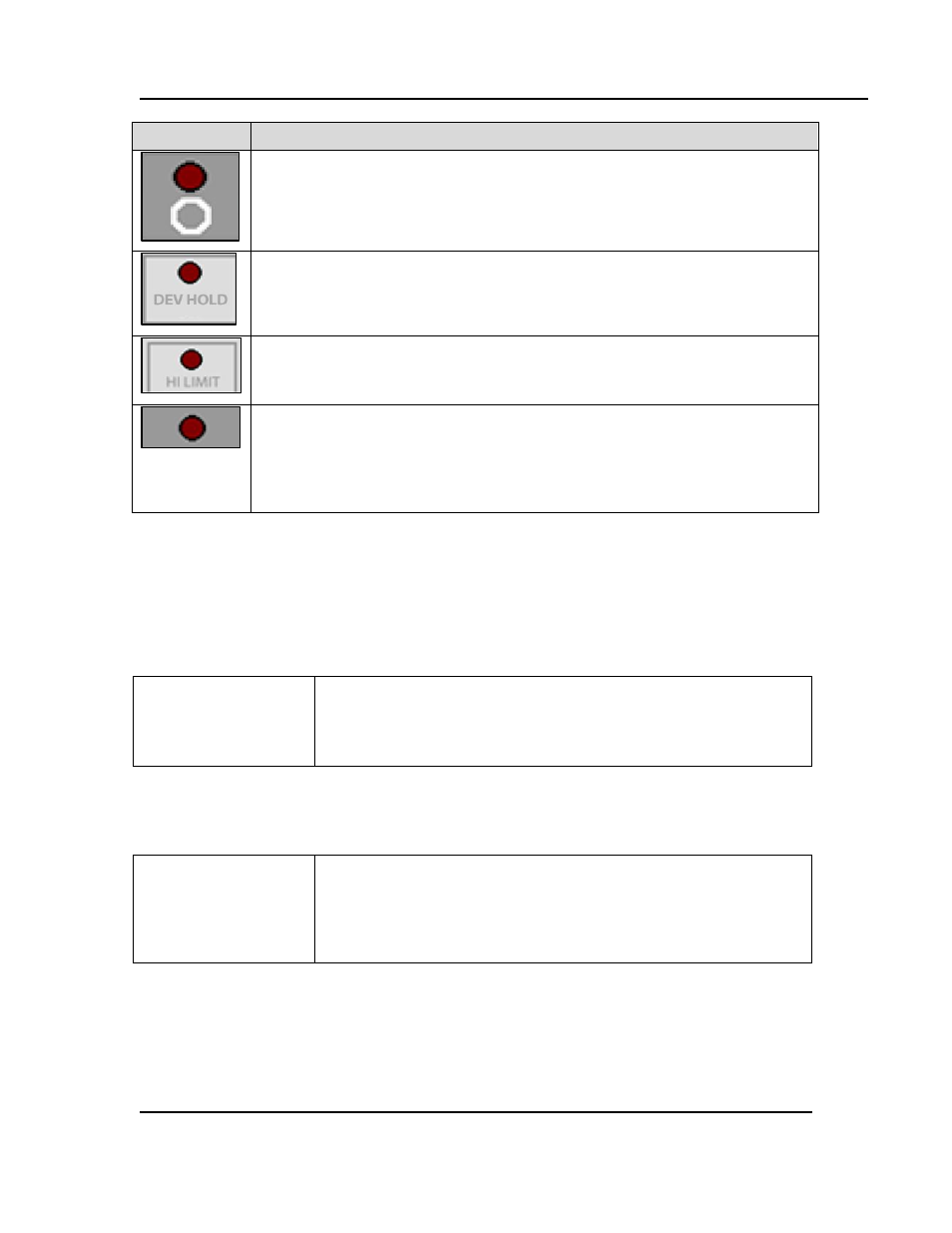

LED Function
Cycle Complete LED: When lit, indicates the controller is currently stopped.
When lit during a profile or Timer Mode, indicates process value has deviated
from the soak value indicated by the controller. Set Soak Deviation value in the
Profile Configuration mode or in the Timer Mode from the Main Menu. See
Troubleshooting Section 7 for more information.
When lit indicates the controller has exceeded the High Limit Value. Set High
Limit Alarm Value and Hysteresis in the Alarm Configuration menu.
(Four LEDs
located above
LCD display)
When lit, indicates relays 1-4 are active. Relay can be assigned as an Event,
Alarm or Cycle.
5.2. First Screens

Change configuration controls depending on the mode used.
Refer to the specific operating instructions below, for more
information.
At initial power-up, control is in
Select a Mode . This screen allows the choice of manual mode,
timer mode or profile mode.

Regularly backup critical system data according to your
company policies. Be sure to back up configuration and profiles
to a removable memory device. Refer to Section 5.5.1 for more
information.
