87
1. Electrical connections for a direct vent
fan (supplied by others) are made in the
Direct Vent Control box, (See Figure B
at right), which was shipped with the
dishwasher and stowed in the rear of
the machine.
2. The control box can be mounted on the
left-side of the machine (See page 79,
Figures I & J) or wall-mounted using
P/N 900958, Control Box Wall Mount
Kit. The wall-mount kit is sold separately.
P/N 115109 - Direct Vent Option Installation Instructions
Electrical Connections for a Direct Vent Fan (Supplied By Others)
! IMPORTANT !
Electrical installation must be performed by qualified personnel in accordance with all local codes
and regulations or in the absence of local codes then in accordance with the National Electrical
Code or the Canadian Electrical Code.
DO NOT CONNECT POWER UNTIL THE FAN IS COMPLETELY INSTALLED.

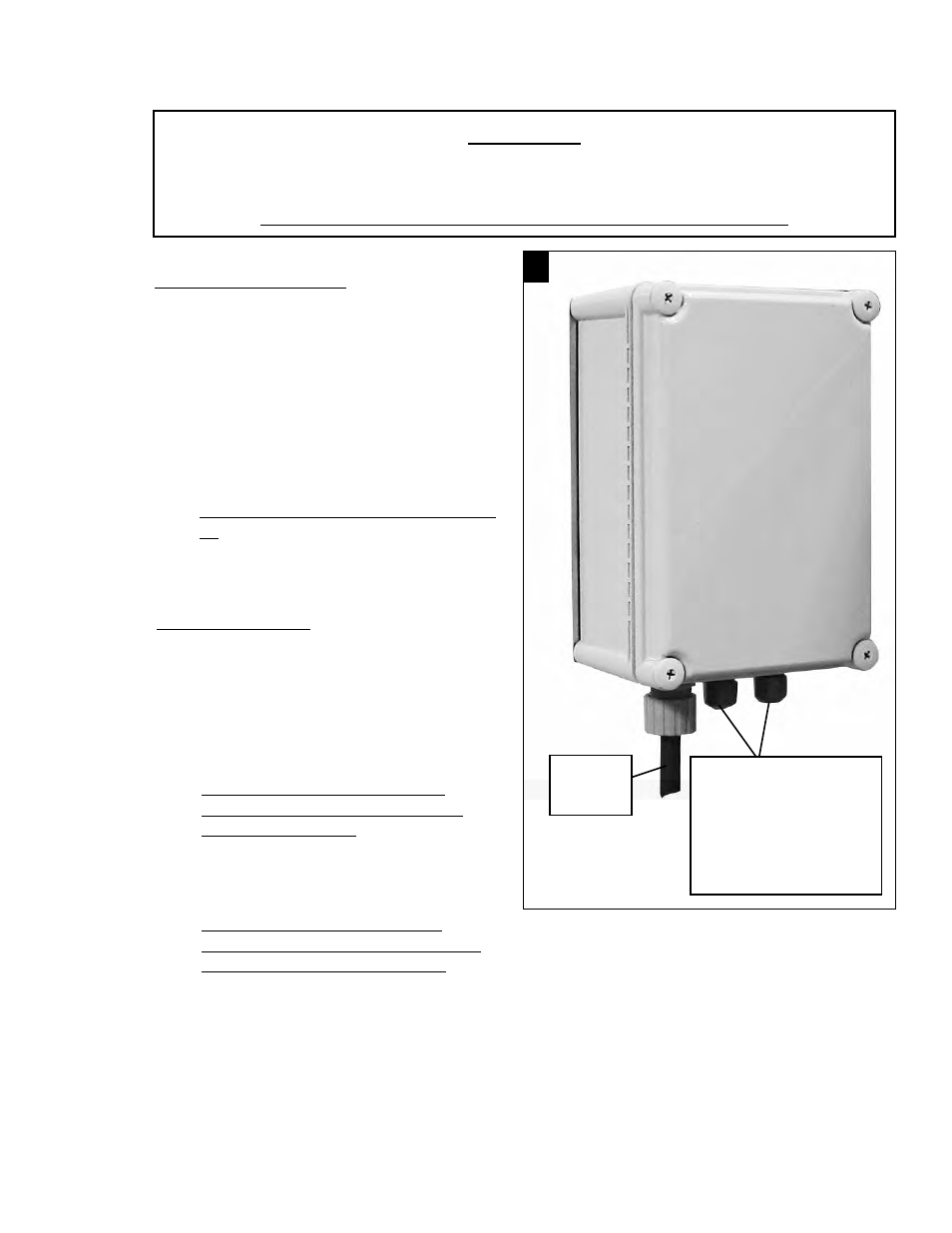

B
Water-tight
Direct Vent
Option
Control Box
Fittings and cables for
an external power supply
and output
to the direct vent
fan must be supplied
by the installer.
Factory
Prewired
Cable
Direct Vent Control Box:
Cable Connections:
1. Refer to Figure B at right.
2. Remove the control box water-tight cover.
3. An interconnect control cable between
the dishwasher and the control box is
prewired at the factory.
DO NOT CUT NOR DISCONNECT
THIS CABLE WITHOUT PERMISSION
FROM THE FACTORY.
4. One cable is required to bring power
from an external power source into
the control box.
DO NOT USE THE DISHWASHER
AS A POWER SOURCE FOR A DIRECT
VENT FAN SUPPLIED BY OTHERS.
5. One cable is required to connect
power from the control box to the
direct vent fan.
(continued on next page)
