P/N 115107 - Condensate Removal Option Installation Instructions
Utility Connections for the Tall Hood-type Series
with Condensate Removal Option
Chemical Connection Provisions
! ATTENTION !
Consult a qualified chemical supplier for chemical supplies and chemical dispensing equipment.

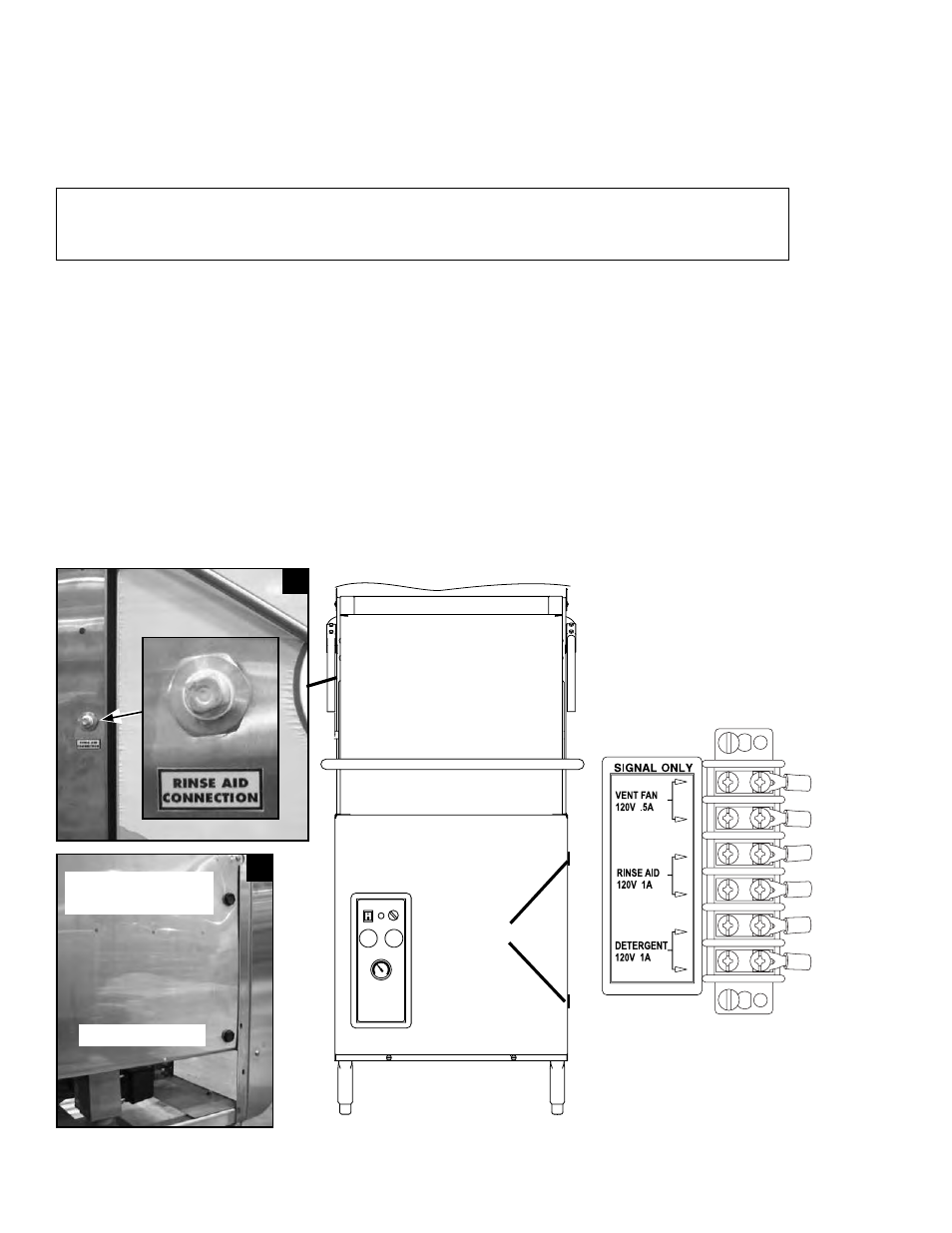

1. Provisions for chemical suppliers to connect their chemical dispensing systems are
provided on the dishwasher and include:
2. A 1/2" NPT fitting (A) rinse-aid injection point. The fitting is located on the left side
of the dishwasher support hood (see illustration below).
3. Two 7/8" holes (B) are provided on the lower right side of the wash tank for detergent
injection and the detergent probe.
4. Detergent and rinse-aid control signals are available inside the control cabinet.
5. The signals are 120VAC, Max. 1 Amp load. Connection points are located on a
labeled terminal block (see below).
120VAC, 1A Dispenser
Signal Terminal Block
A
B
Detergent Injection
Point
Detergent Probe
B
