93
P/N 115107 - Condensate Removal Option Installation Instructions
The Condensate Removal Electrical Control Box is
shipped prewired to the dishwasher and stowed
in the back of the machine. Mounting holes and
fasteners are provided to mount the control box to the
left side of the machine. (See Figure E).
To Install the Electrical Control Box:
Installing the Condensate Removal Electrical Control Box
on the Left-hand side of the Tall Hood-type Series
1. The electrical control box must be installed
before the dishwasher is permanently
placed and before the dishwasher tables
are connected to the dishwasher.

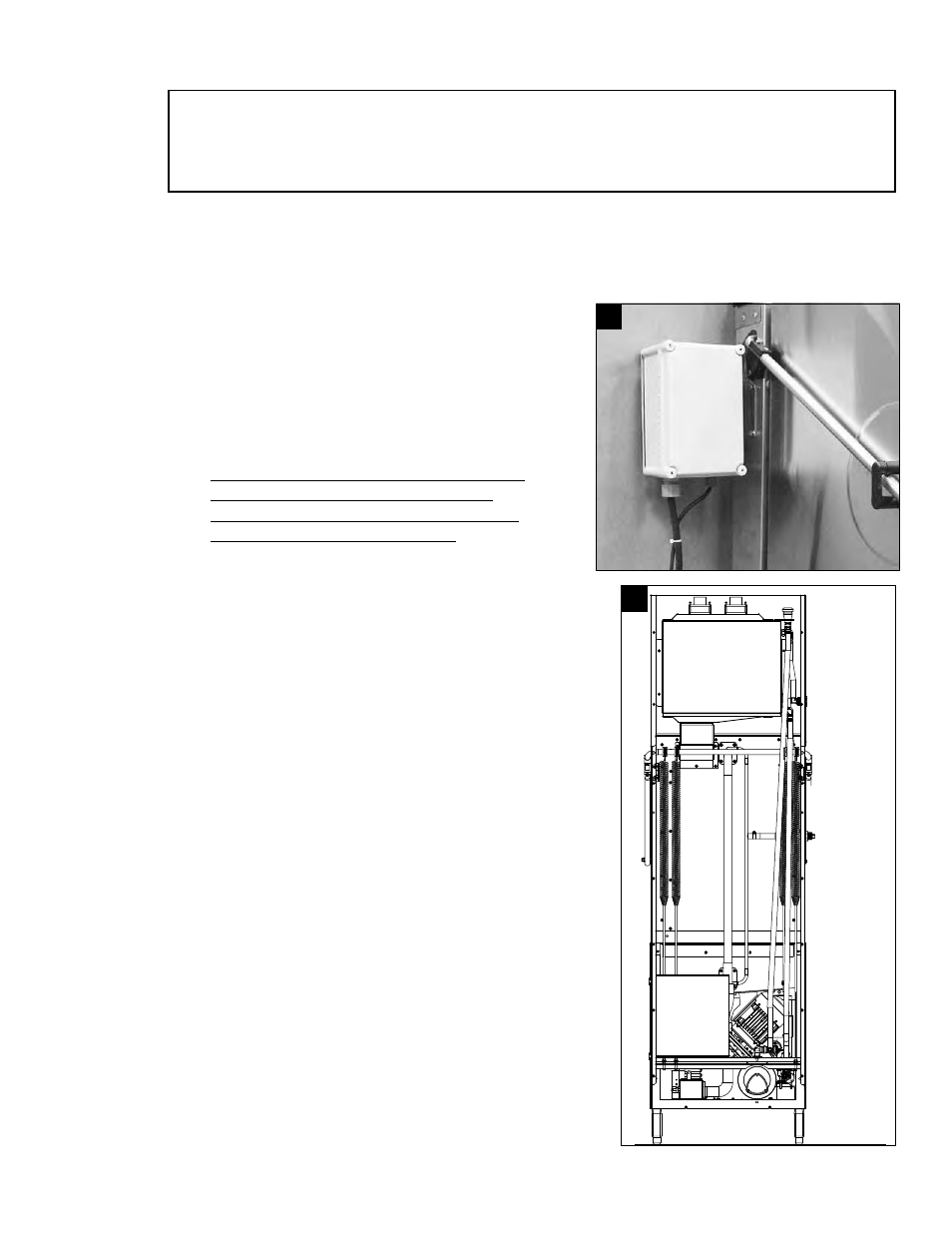

2. Refer to Figure E at right. The photo
shows the electrical control box mounted
on the left side of the dishwasher
approximately 46" [1.2 m] above the
finished floor.
3. Refer to Figure F at right. The photo
shows the storage location for the
electrical control box during shipping.
4. Carefully lift the control box and mounting
bracket assembly from the rear of the
dishwasher and place it on the floor on
the left-hand side of the machine when
viewed from the front.
(continued on next page)
E
CONTROL
BOX
! ATTENTION !
The Condensate Removal Control box can be wall-mounted using a
Wall Mount Kit, P/N 900958.
See the last page of this manual for further instructions.
F
CONTROL
BOX
