CHAMPION DH5000T Single Source Gas Manual User Manual
Page 91

83
P/N 115109 - Direct Vent Option Installation Instructions

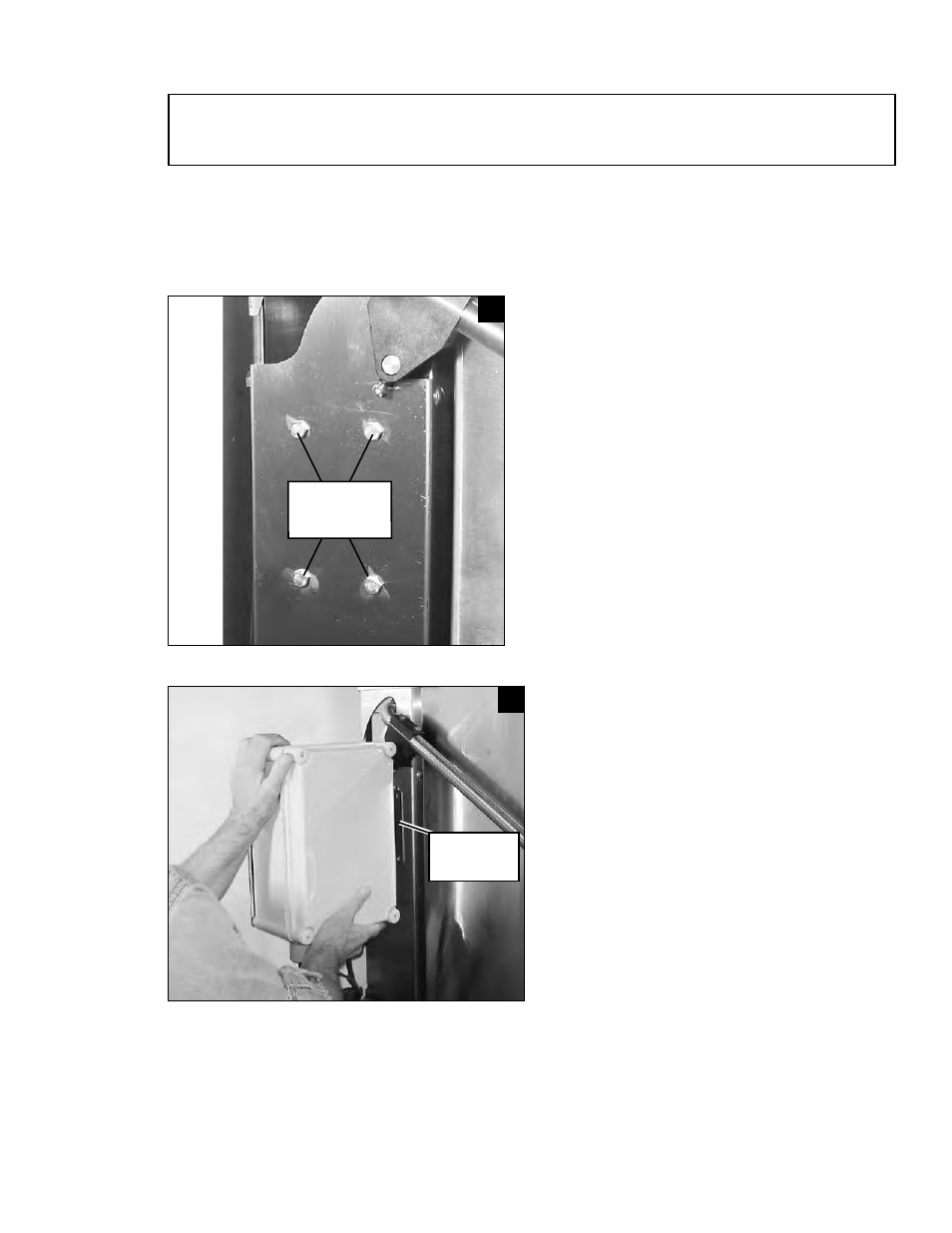

Installing the Direct Vent Fan Electrical Control Box on the left-hand side
of the Tall Hood-type Series dishwasher
(continued)
I
1/4-20
MOUNTING
BOLTS
J
MOUNTING
BRACKET
6. Locate the (4) 1/4-20 x 1/2" Hex
Head bolts on the upper left rear
side of the dishwasher directly
below the handle bracket.
(See Figure I).
7. Remove these bolts and set aside.
8. Carefully lift the electrical control
box and mounting bracket assembly
in place, align the mounting holes
and reinstall the
mounting bolts removed in Step 6
above. (See Figure J below).
9. Refer to Figure G on the previous
page and note that a 12 ft. [3.7 m]
vent fan cable has been prewired
to the control box for the 120VAC
Factory supplied vent fan.
Route this cable from the control box
to the vent fan in accordance with
all local codes and regulations to
complete the installation.
Electrical Connections For the
Optional Factory
Supplied Vent Fan on Next Page.
! ATTENTION !
The Direct Vent Fan Control box can be wall-mounted using a Wall Mount Kit, P/N 900958.
See the last page of this manual for further instructions.
