85
P/N 115109 - Direct Vent Option Installation Instructions
Electrical Connections for the Optional Direct Vent Fan
(Supplied By The Factory)
INPUT
MIN MAX MIN MAX
LOAD
INPUT
LOAD
FC
CLT FT
LR
FAN MOTOR-BLK
FAN MOTOR-WHT
WHITE #2
RED #19
BLUE #10
BLACK #4
ORANGE #5
BLK/WHT #55
TR
CLR
N
From Dishwasher
To Optional Vent Fan
(supplied by the factory)

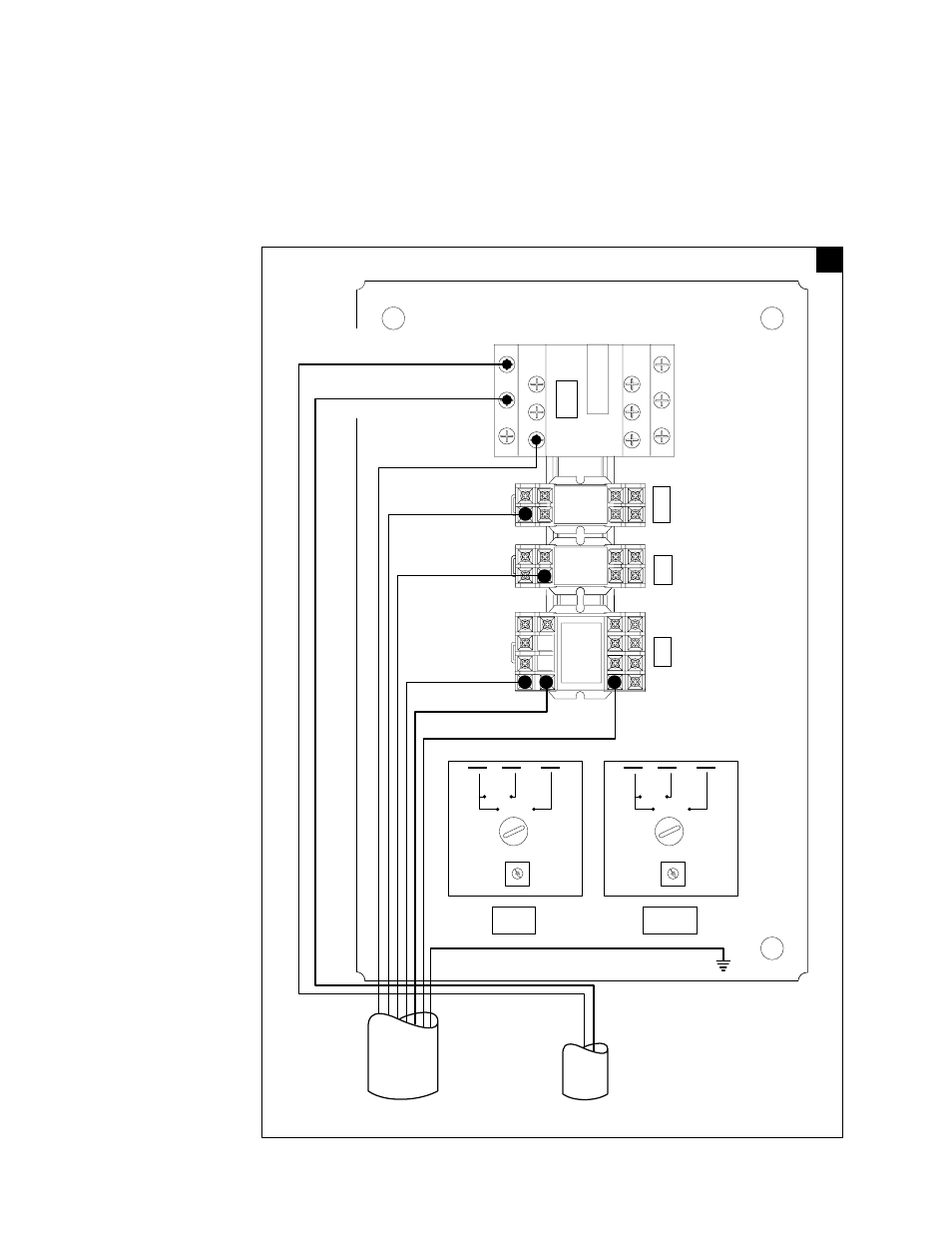

The wiring diagram in Figure N below illustrates the cable wire connections for the
vent fan electrical control box wired for the optional direct vent fan supplied by the
factory.
