CHAMPION DH5000T Single Source Gas Manual User Manual
Page 87

2-3/8"
[60]
4"
[102]
I.D.
13"
[330]
Machine
Mounted
Direct
Vent Fan
Control Box
79
P/N 115109 - Direct Vent Option Installation Instructions

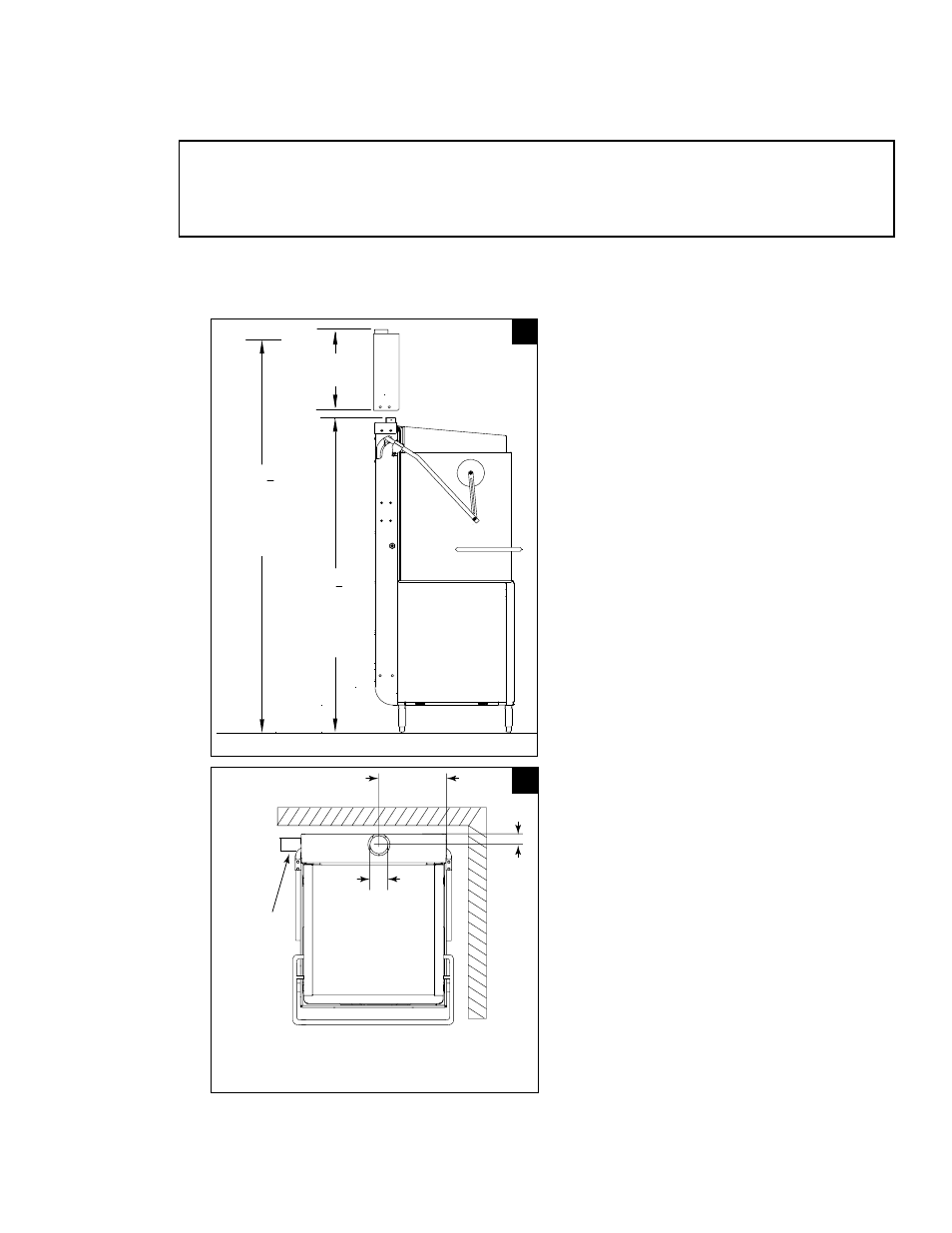

Tall Hood-type Series Direct Vent Option Description
93 14
[2369]
"
70 18
[1781]
Machine
Height
Direct Vent
Mounted
"
23
[584]
"
~
~
Direct Vent
A
B
The direct vent option is a stainless steel vent shroud (approximate weight 26 lbs/22 kg) and
a 120VAC/60/1 vent fan supplied by the factory or an alternate fan supplied by others. The
electrical connections for the vent fan are located in the direct vent electrical control box.
1. The direct vent shroud is mounted on
the top rear of the dishwasher using (4)
1/4-20 x 1/2" SST truss head screws.
(See Figure A).
2. The direct vent shroud must be
installed before the dishwasher
is permanently placed and before
connecting the utilities.
3. The installation of the direct vent fan
and duct work should be installed by
qualified personnel.
4. The dishwasher vent connection is a
round 4"[102mm] I.D. duct fitting.
5. The vent system must supply
250 CFM at 1/4" static pressure.
6. The dishwasher should be positioned
in a manner which allows the dish tables
and the machine to align for the proper
loading and unloading of the dish racks.
(See Figure B).
! VERY IMPORTANT !
The direct vent shroud must be installed before the dishwasher is permanently placed
and before the utilities are connected.
A DIRECT VENT FAN MUST BE INSTALLED TO EXHAUST AIR TO THE OUTSIDE.
