99
P/N 115107 - Condensate Removal Option Installation Instructions
Utility Connections for the Tall Hood-type Series
with Condensate Removal Option
Electrical Connections
WARNING :
Electrocution or serious injury may result when working on an
energized circuit.
Disconnect power at the main breaker or service disconnect
switch before working on the circuit.
Lock-out and tag the breaker to indicate that work is being
performed on the circuit.
! ATTENTION !
A qualified electrician must connect the main incoming power to the dishwasher in accordance
with all local codes and regulations or in the absence of local codes in accordance with the
National Electrical Code. Improper installation will not be covered by the Limited Warranty.

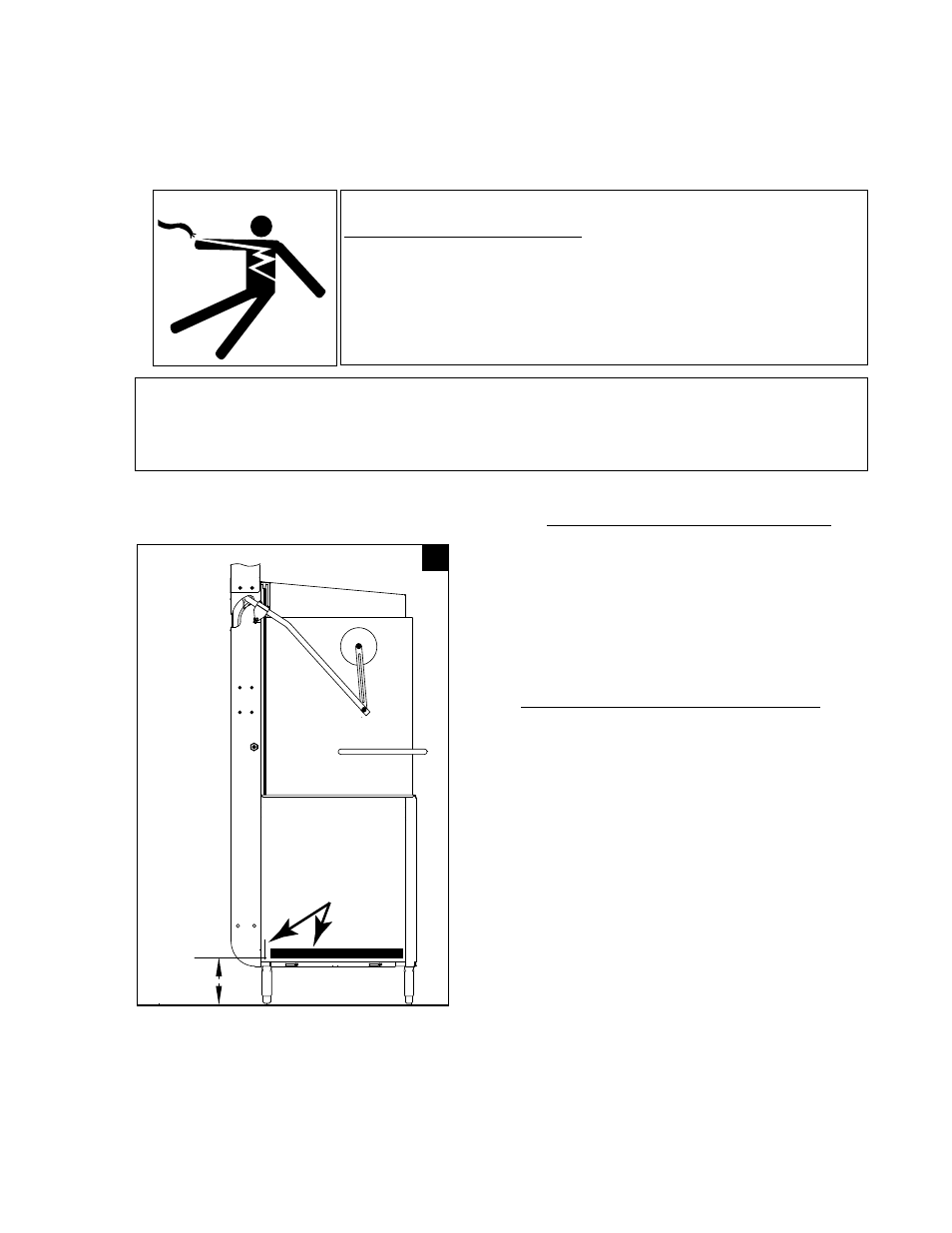

Power Bracket
and Conduit
8-3/4"
[222]
F
Incoming Power Routing.
1. Make sure the incoming power is disconnected at
the main disconnect switch or circuit breaker.
2. The dishwasher is available for either single or
three phase operation. Standard voltages are
208-240V/60/1 & 3, and 460-480V/60/3.
3. A Machine Electrical Connection Data Plate is
located directly below the input terminal block.
Make sure the incoming power supply matches
the machine's electrical requirement before
connecting incoming power.
4. Remove the front and left side dishwasher panels.
5. The incoming power supply is routed from the
rear of the machine to the input terminal block
located at the front of the machine.
Connecting Incoming Power Supply
