Temperature Display Adjustment - (For Service Technicians Only)
5. There are two displays on the front of the display board. The left displays the wash tank
temperature the right displays the final rinse water temperature.
6. The rear of the display board contains the adjustment buttons and the display board
connectors. The adjustment buttons are TEST A, TEST B, CHECK and RESET.
7. There is a temperature selector switch to change the display units for ºF or ºC.
Adjusting the Temperature Displays (continued)
Temperature Display Adjustment - For Service Technicians Only (continued)
Te
st
A
Te
st B Check
Button
Rinse Switch
Connector
Thermister
Connector
Reset
SW4
SW5
SW1
Neutral 24VAC
P/N 114489
Revision 1
C F
Units
Wash Display Rinse Display

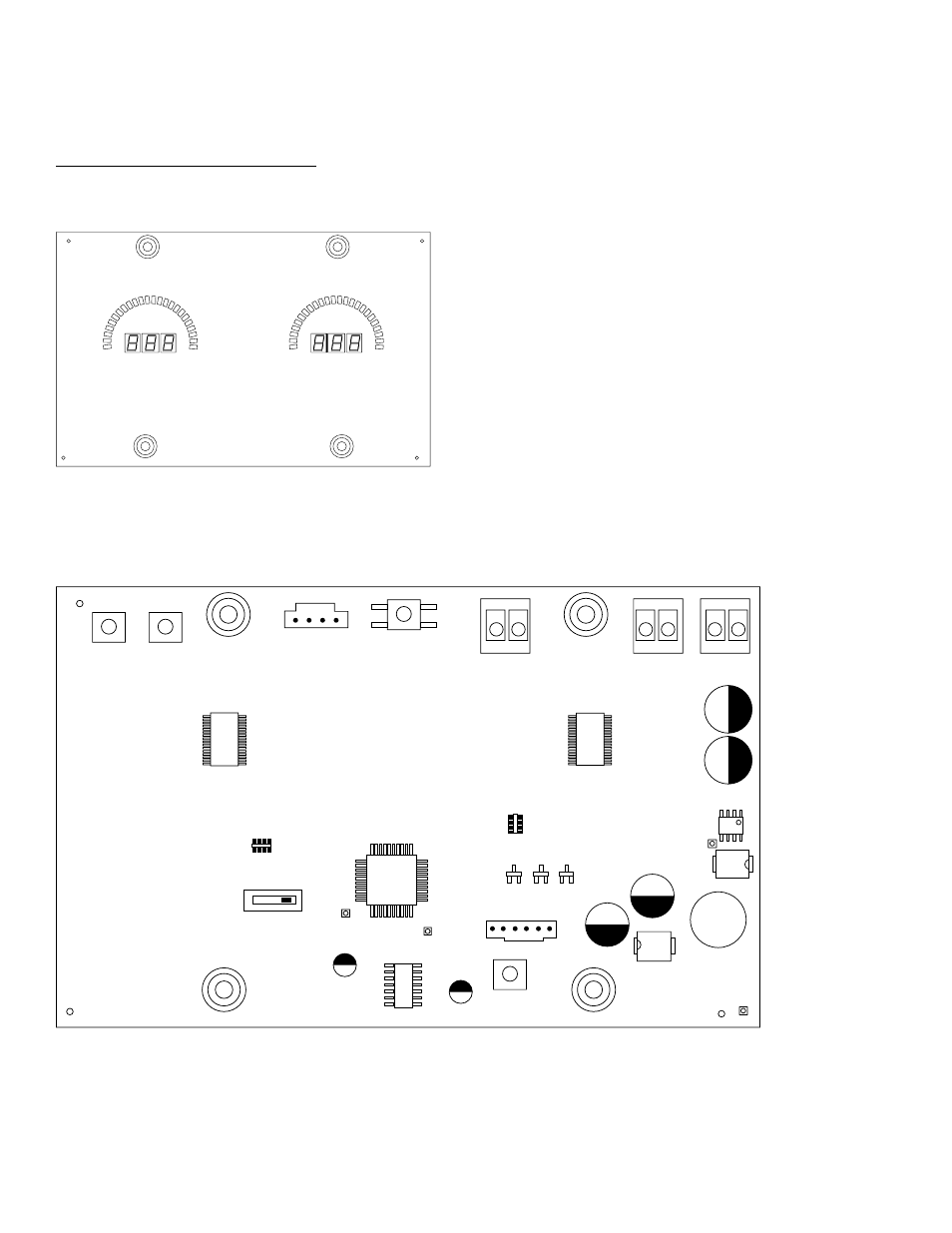

Front View of Temperature Display Board
Rear View of Temperature Display Board
