8

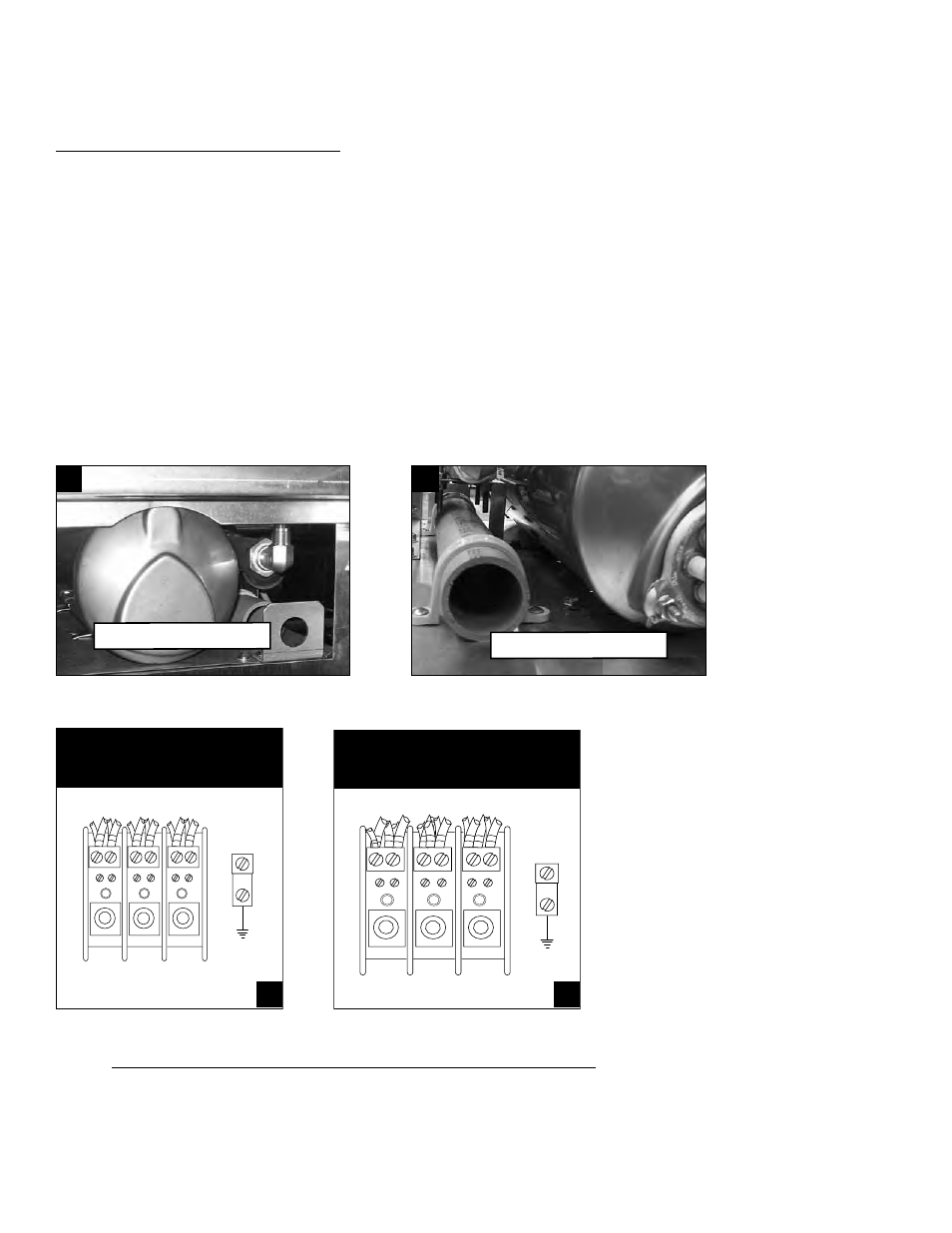

1. Connect the incoming power flexible conduit to the incoming conduit mounting bracket
located on the rear of the dishwasher base making sure to leave 6 feet [2 m] of excess
conduit and conductors to allow for servicing of the dishwasher.
2. Route the power conductors through the 1-1/2" rigid PVC Power Cable Conduit to the
front of the dishwasher as shown. (See A and B below).
3. Two cable tie mounts are provided on the base of the machine to secure the conductors.
Make sure the conductors do not block the front of the booster tank, (if equipped), so the
booster can be serviced easily.
4. Refer to the terminal block connection diagrams below and connect the incoming
power to the input terminal block as indicated according to the machine's power
requirements. (See C and D below).
5. CHECK MOTOR ROTATION FOR 208-240/460-480V/60/3 ONLY . Check the rotation
direction of the wash pump motor according to the indicator arrow on the motor end cover
and reverse L1 and L2 at the input terminal block if the motor rotation is incorrect.
Installation
Electrical Connections
Connecting Incoming Power Supply (continued)
SINGLE PHASE
POWER CONNECTION
208-240V/60/1
LINE IN
GND
NOT
USED
L1 L2 L3
L1 L2
THREE PHASE
POWER CONNECTION
208-240/440-480V/60/3
GND
LINE IN
L1 L2 L3
L1 L2 L3
D C
Power Cable Bracket
Power Cable Conduit
A B
