96
P/N 115107 - Condensate Removal Option Installation Instructions
Condensate Removal Shroud Electrical and Plumbing Connections
WARNING :
Electrocution or serious injury may result when working
on an energized circuit.
Disconnect power at the main breaker or service
disconnect switch before working on the circuit.
Lock-out and tag the breaker to indicate that work is
being performed on the circuit.
(continued from previous page)

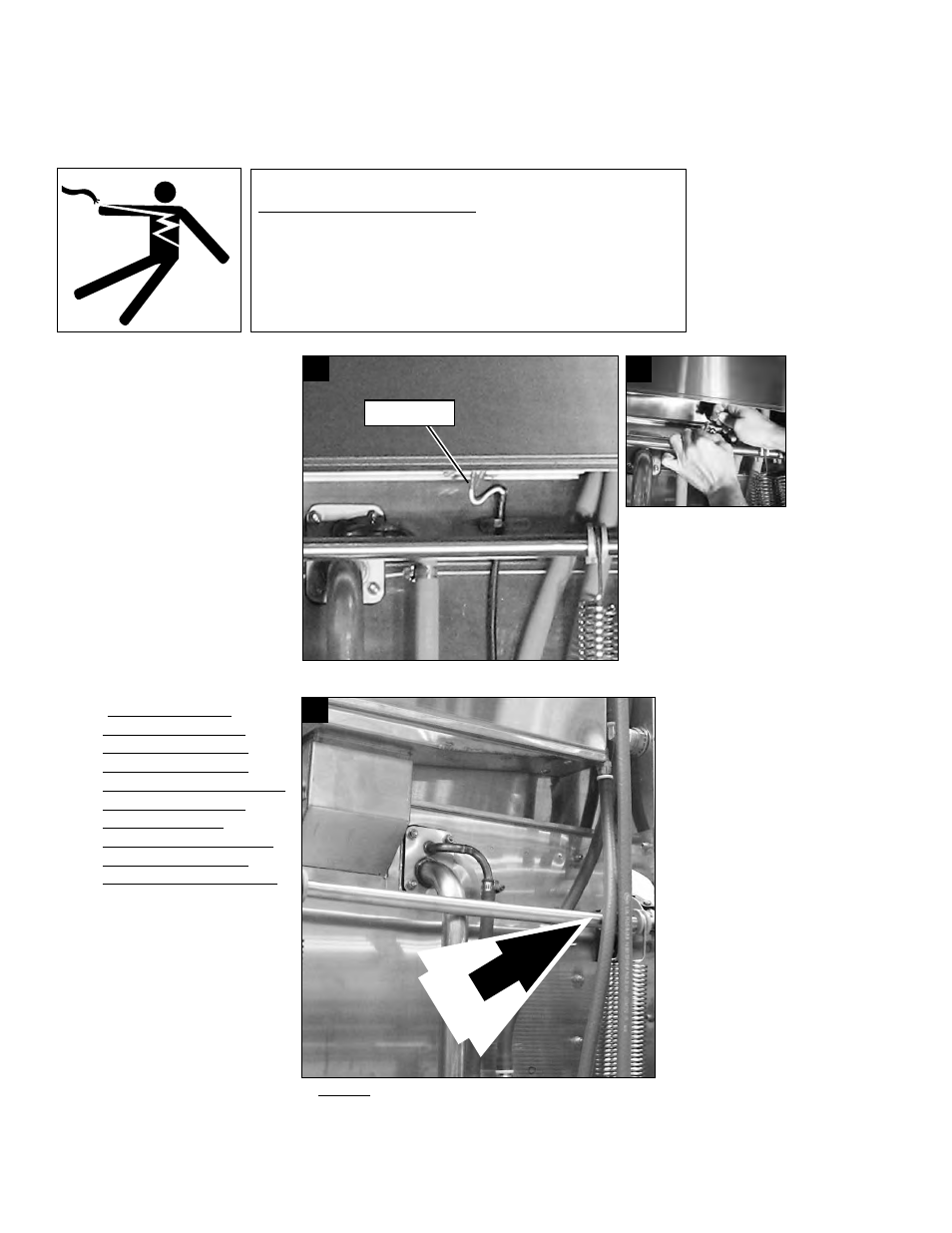

1. The condensate removal
shroud fans were prewired
at the factory.
When the shroud is
installed on the top of the
dishwasher, the shroud
wires and their corre-
sponding wires on the
back of the dishwasher
should be in close prox-
imity to each other.
2. Locate the wires and
connect black to black and
white to white.
(See Figures A at right.)
3. ! ATTENTION !
Route the condensate
removal shroud hoses
behind the handle as-
sembly as shown in Figure
A above. The hoses
shown in Figure B
at right have been routed
in front of the handle
assembly, this is incorrect.
4. Referring to Figure B,
note that there are three
hoses preconnected to
the condensate removal
shroud. The hoses are
different lengths to ensure
that the hoses are con-
nected to the correct
locations.
A
Fan Wires
A
DO NOT route the condensate removal shroud hoses
in front of the handle assembly as shown in this photo.
Route the hoses behind the handle assembly against the
rear of the machine.
B
!
