Chapter 5. Installing the Display System
Race Dash Users Guide
25

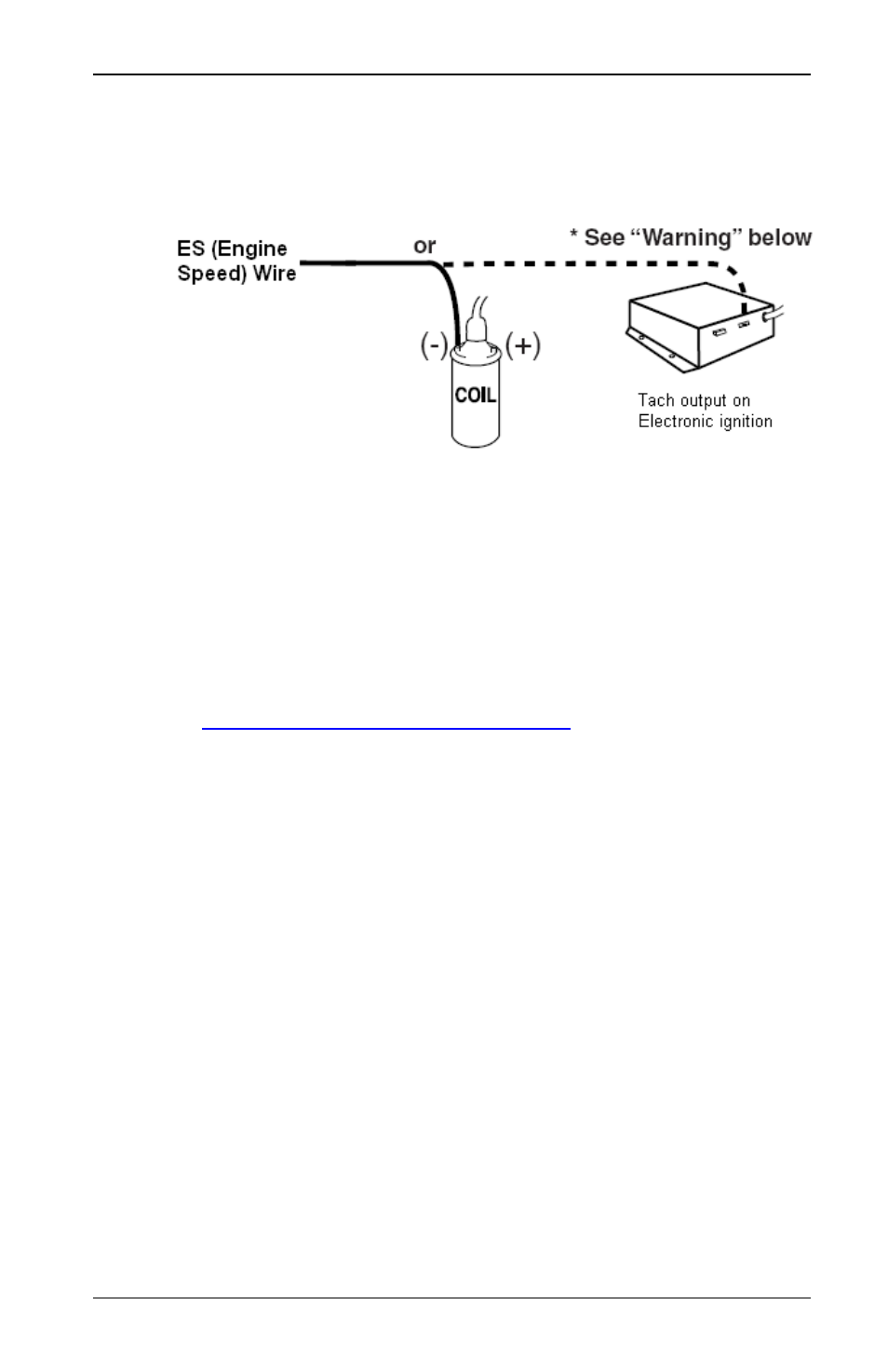

Connecting the Display System to the
Ignition System
The Display System can be connected to engines with a variety
of ignition systems. Please see below.
* WARNING
Warranty will be void if connected to coil when using an
aftermarket ignition box such as, but not limited to products
from the following manufacturers: MSD, Crane, Jacobs,
Mallory, Holley, Etc.. Prior to installation, check with the
ignition box manufacturer for recommended tachometer
signal location.
See
autometer.com/tech_installation.aspx
for specific vehicle
information.
The following connections are shown in greater detail:
•
Series Resistor Connection
•
ECU Connection (+ Pull-up resistor)
The connection of the Display System to these types of ignition
system is described on the next page:
