Chapter 3. Operating the Display System
14 Race Dash Users Guide

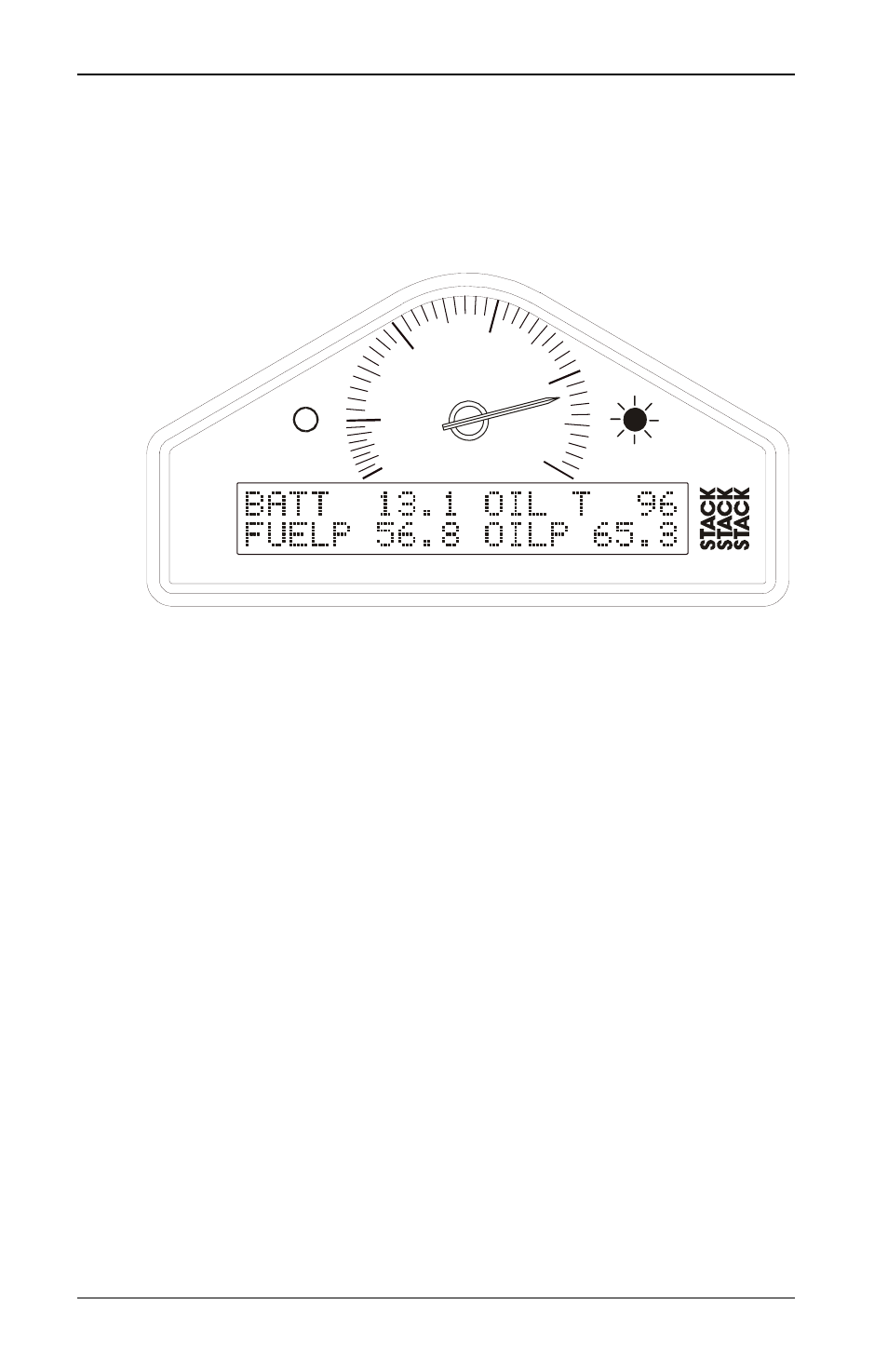

Gear Shift Light
The gear shift light comes on when the engine RPM exceeds a
predefined value. See Chapter 4, Configuring the Display
System for information about setting this value.
If you purchased the optional Shift Light (model no. 9580) that
light will illuminate at the same time.
0
4
5
6
7
8
2
3
1
Making a Recording
All of the displayed parameters are recorded including the Lap
Times.
Data recording starts when the Engine Speed rises above a preset
RPM value. That value can be configured as described in
Configuring the Display System below. Recording stops when
the Race Dash is switched off or after the Engine Speed has been
at zero (engine not running) for more than five seconds.
The Race Dash can hold up to fifteen Runs; about two hours of
data. Recorded data can be deleted from the Playback Menu (see
next page).
