Chapter 2. Getting Started
4
Race Dash Users Guide

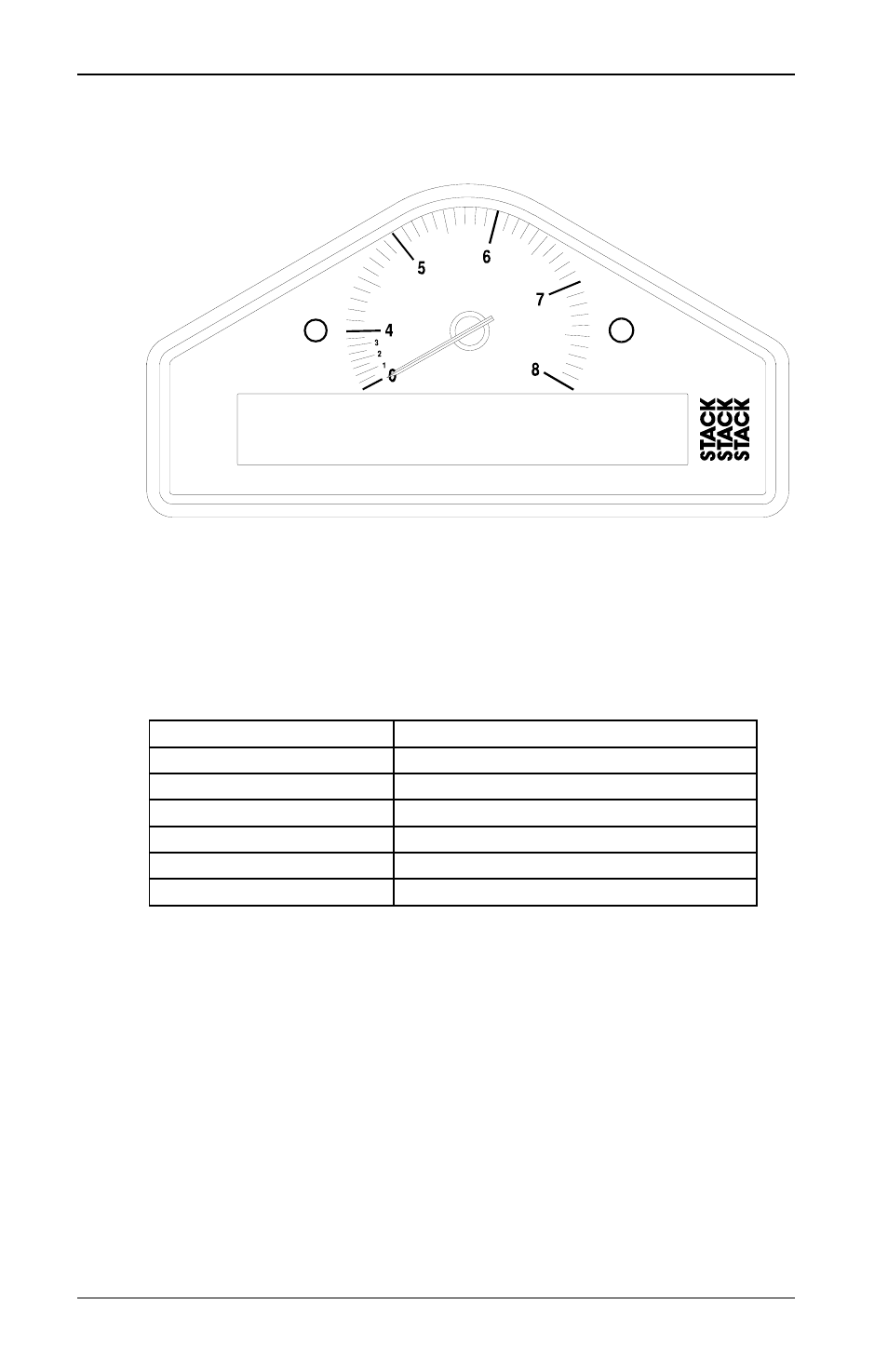

The Display Module
The Display Module consists of an analog tachometer and a
digital display panel.
The Display Module is connected to a variety of sensors by a
wiring harness. The wiring harness has a 19-way military
connector for connection to the Display Module.
Wiring Harness
Each of the wires in the harness is labeled.
Labels on Short Cables
Connection To
REG
5 volt regulator stub
S1 to S4
Switches 1 to 4
WS
Wheel speed sensor
LAP
Lap timing sensor
SL Shift
light
AL
Alarm warning light
