4. Appendix
129 AirLive WN-250R User’s Manual
Please follow the following instructions to set DMZ parameters:

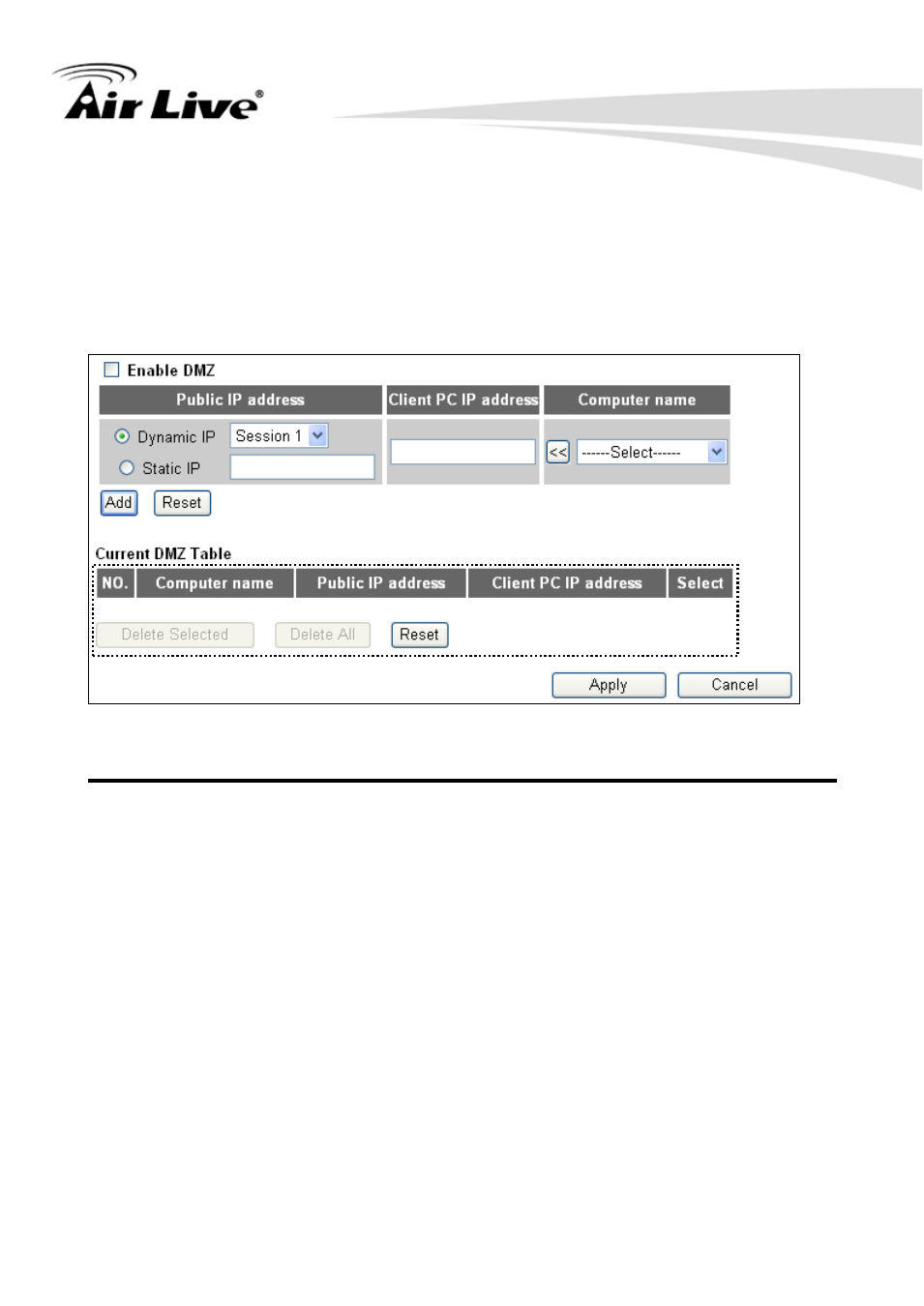

Please click ‘Firewall’ menu on the left of web management interface, then
click ‘DMZ’, and the following message will be displayed on your web browser:
Here are descriptions of every setup items:
Enable DMZ (1): Check this box to enable DMZ function, uncheck this box to disable
DMZ function.
Public IP You can select ‘Dynamic IP’ or ‘Static IP’ here.
address (2): If you select ‘Dynamic IP’, you have to select an Internet connection
session from dropdown menu; if you select ‘Static IP’, please input
the IP address that you want to map to a specific private IP address.
Client PC IP Please input the private IP address that the Internet IP address
address (3): will be mapped to.
1
2 4
5 6
7
8 9 10
11
3
