AirLive ARM-104_v3 ADSL2/2+ Router 91
4.4.5.1 IP Filters Configuration Procedure

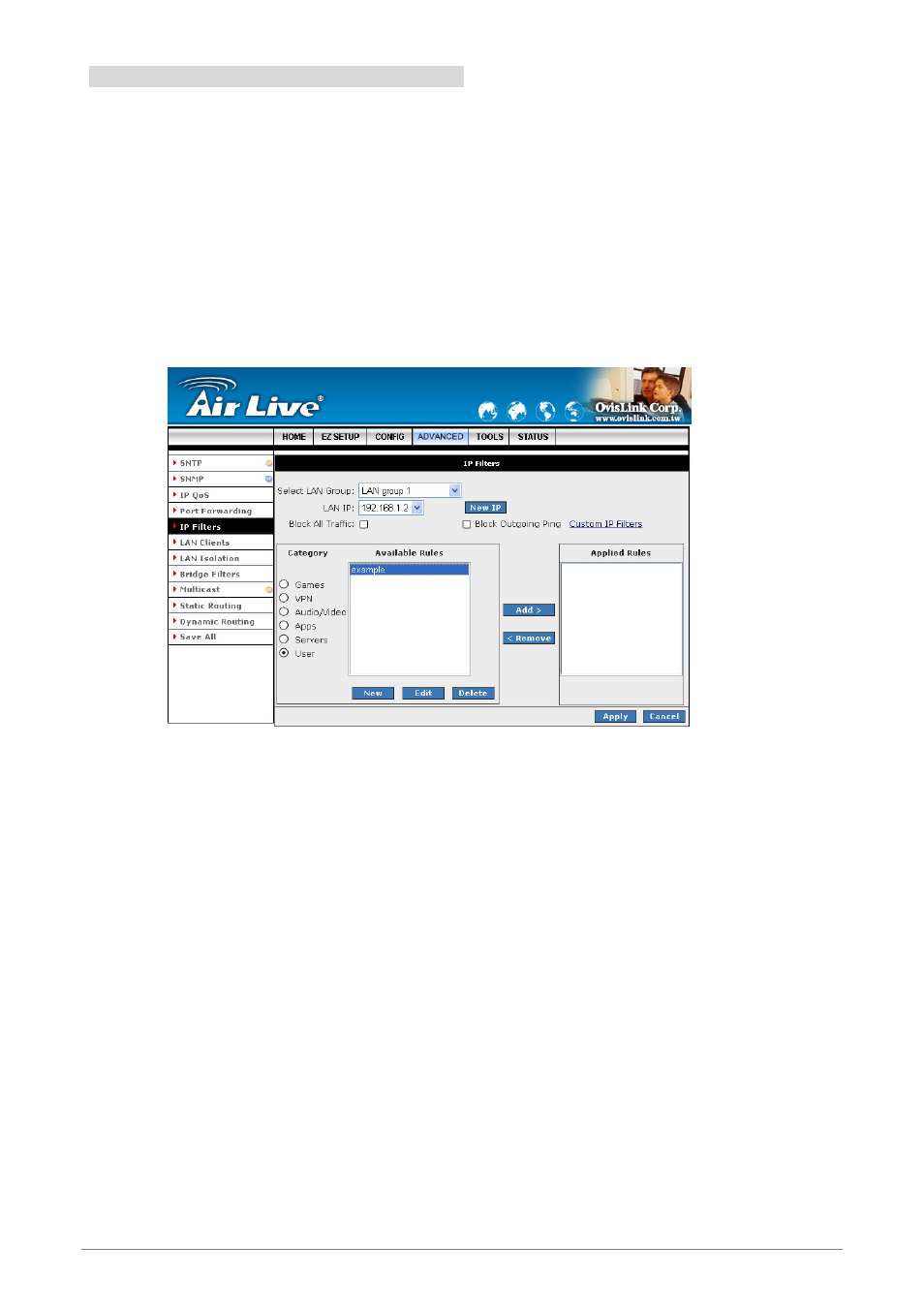

1. From the IP Filters configuration screen, select LAN Group and LAN IP.
If the desired LAN IP is not available in the LAP IP drop-down menu, you can add it using the LAN Client
screen, which can be accessed by clicking NEW IP.
2. Select the available rules for a given category, click View to view the rule associated with a predefined
filter, click Add to apply the rule for this category.
3. If a rule is not in the list, you can create your own in the user category. With User category selected,
click Add. The Rule Management screen will populate for you to create new rules. The rule(s) you
create will be available in the User category. You will be able to Edit/Delete the rule(s) you create.
4. Repeat adding rules for each category.
5. Click Apply when you finish to temporarily save the settings.
6. To make the change permanent, click on Save All.
