AirLive ARM-104_v3 ADSL2/2+ Router 87
4.4.4.3.1 DMZ Configuration Procedure

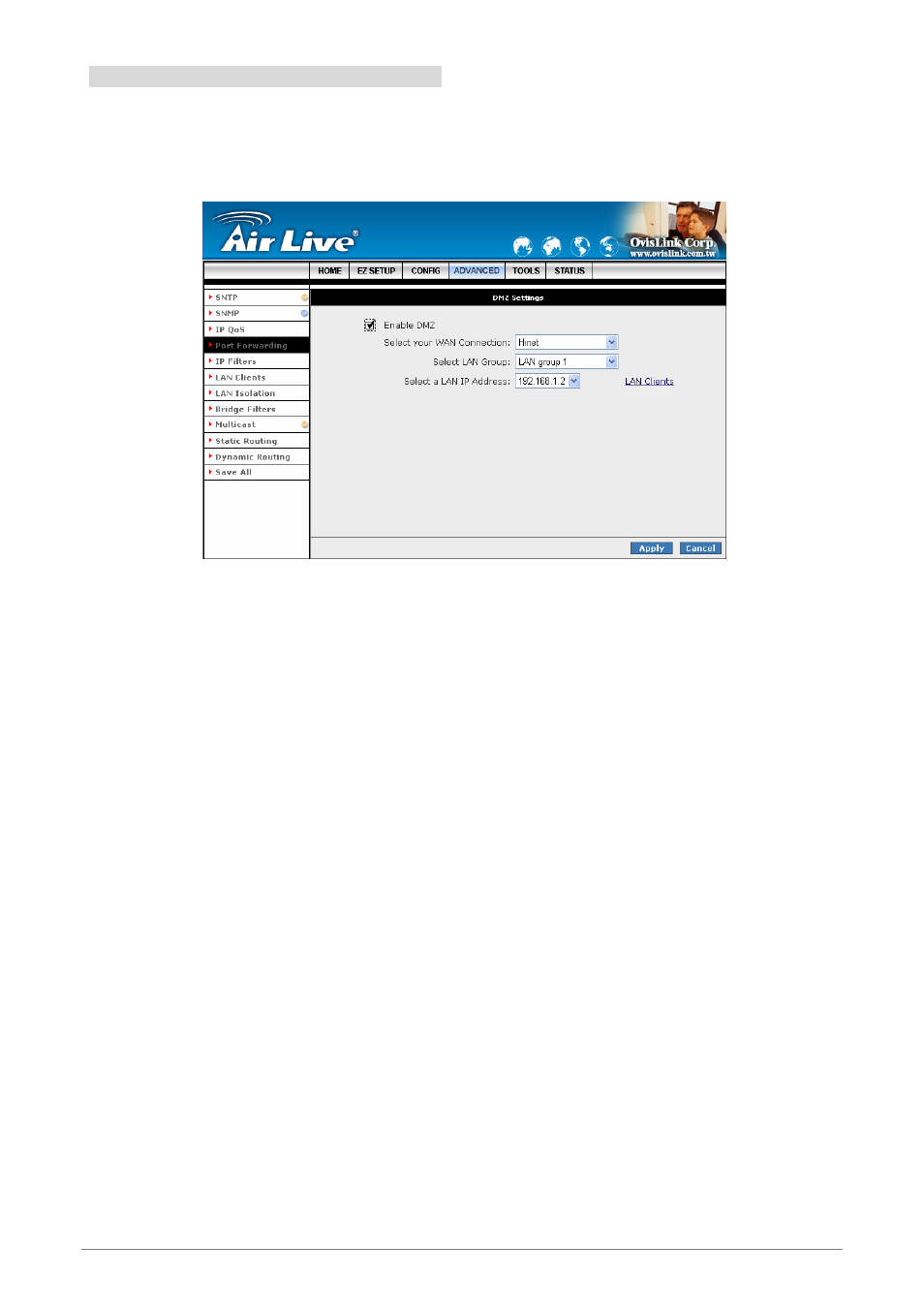

1. From the Port Forwarding Configuration screen, click the DMZ link. You will be taken to the DMZ
settings screen as shown below.
2. Check the Enable DMZ box on the DMZ setting screen.
3. Select the WAN Group, LAN Group, and LAN IP Address. DMZ is configurable per LAN segment.
4. Click Apply when you finish to temporarily save the settings.
Note—You can click on “LAN Clients” link to access the LAN Clients screen.
5. To make the change permanent, click on Save All.
