AirLive ARM-104_v3 ADSL2/2+ Router
60
4.3.2.1 LAN Setup - LAN Configuration

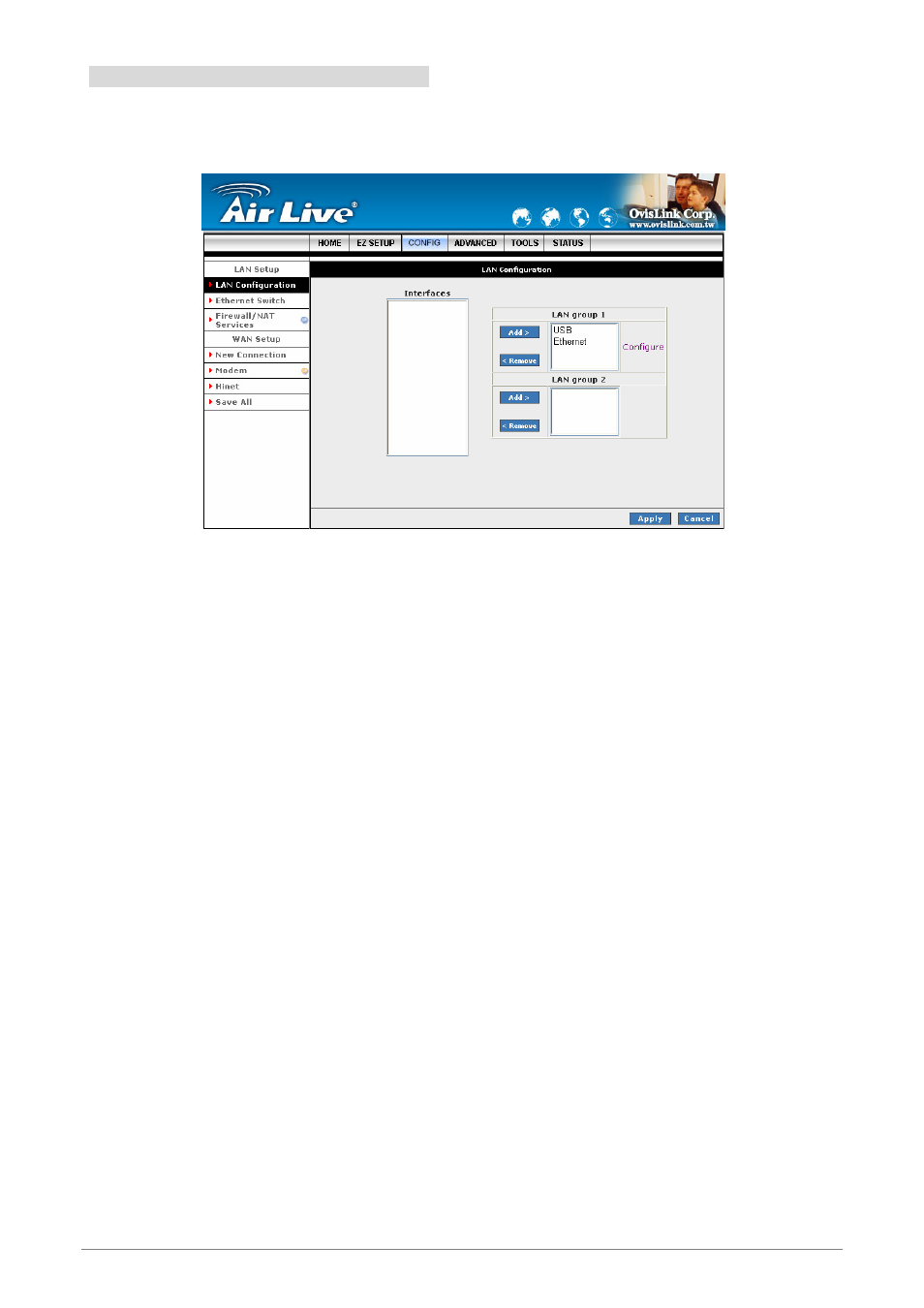

Click LAN Configuration and the following screen will be shown.
Click
Add or Remove Interfaces from list under the different LAN Group. The LAN Group features
only supported under Bridge Mode setting. Interfaces under the same LAN Group (WLAN,
Ethernet and USB) will have the ability to communicate with each other. Different LAN Group are
prohibited to communicate with one another.
Click
Configure for detail LAN Group setting.
Apply: Click Apply to complete the setting.
Cancel: Click Cancel to ignore all the changes.
To complete and save the setting, click Save All after clicking the Apply button.
