AirLive ARM-104_v3 ADSL2/2+ Router 95

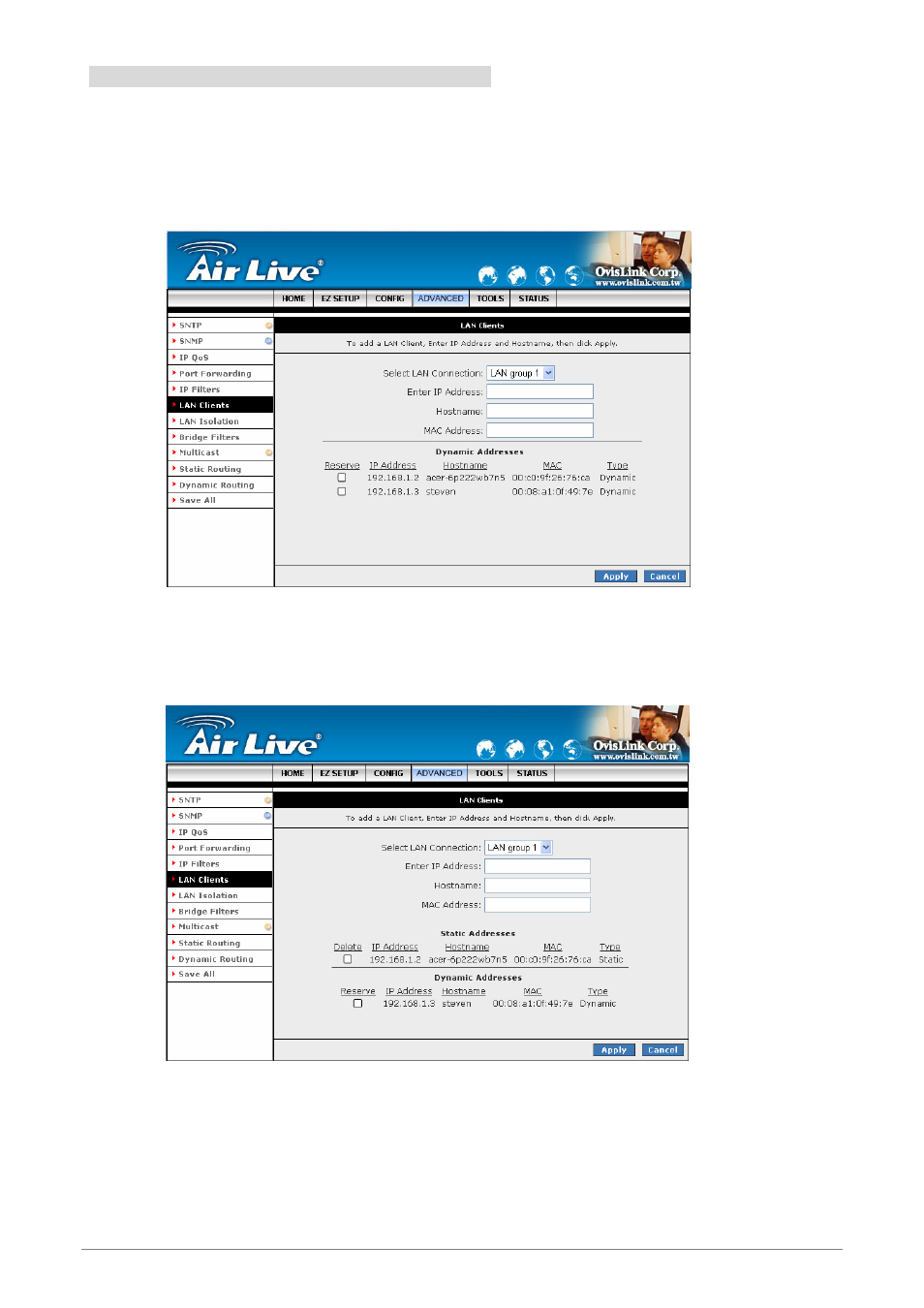

4.4.6.1 LAN Clients Configuration Procedure
1. From the LAN Clients screen, select LAN Connection, and enter IP Address, Hostname, and MAC
Address.
2. Click Apply. The IP address is allocated and it shows up in the list of LAN clients as a "dynamic" entry.
3. You can convert the dynamic entry into static by clicking Reserve, then Apply. As shown in below, the
IP is now changed to static address. You can delete this entry using the Delete checkbox.
4. When you finish, click Apply to temporarily save the settings.
5. To make the change permanent, click on Save All.
