AirLive ARM-104_v3 ADSL2/2+ Router
62
4.3.2.1.2 LAN Configuration - Unmanaged

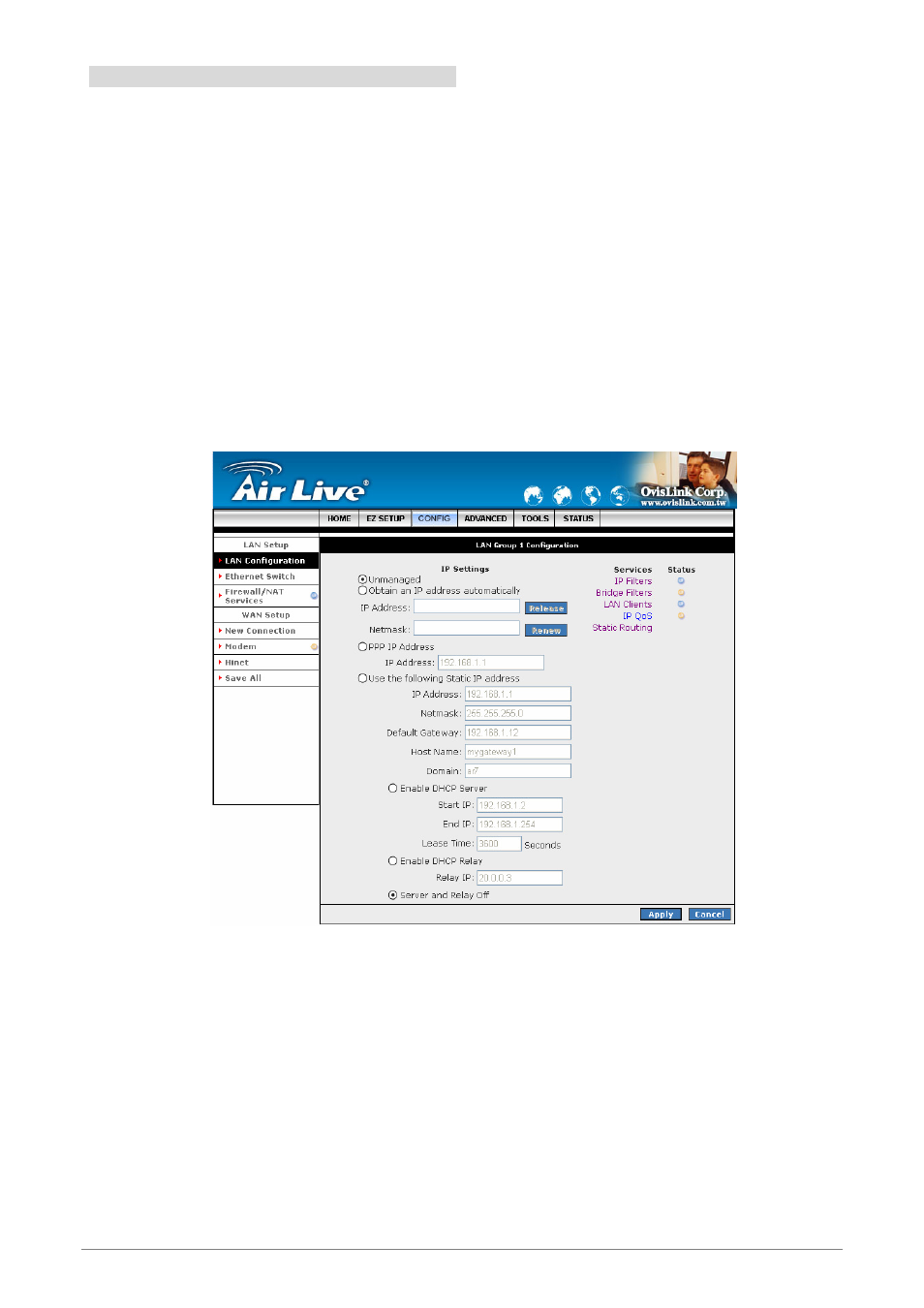

The LAN Group Configuration screen allows you to configure settings for each defined LAN group. Notice
that you can also view the status of advanced services that can be applied to this LAN group.
Unmanaged: Click the Unmanaged radio button, the following configuration screen will pop-up. All filling
items are hidden except the Server and Relay Off (Unchangeable) radio button will turn on.
Unmanaged is a state when the LAN group is not configured and no IP address has been assigned to the
bridge.
Click the Services items will guides you to detail setting. Refer to ADVANCED section for
setting/configuration details.
Apply: Click Apply to complete the setting.
Cancel: Click Cancel to ignore all the changes.
To complete and save the setting, click Save All after clicking the Apply button.
