AirLive ARM-104_v3 ADSL2/2+ Router
61

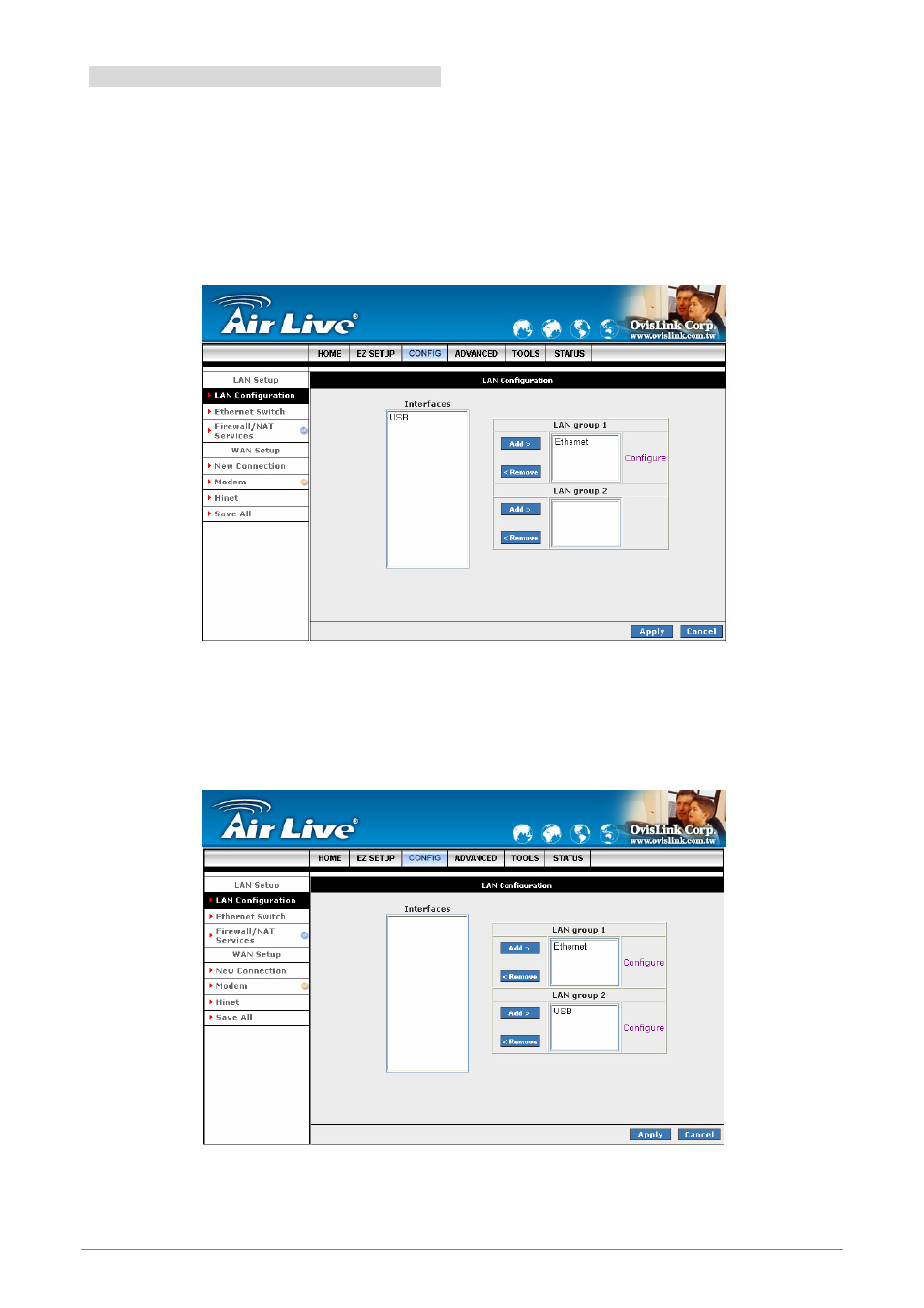

4.3.2.1.1 LAN Configuration Procedures
1. Select
USB interface in LAN Group and click Remove. USB moves to the Interface box on the left as
shown in figure below.
Note—You can configure the USB interface to a different LAN group. However, the Ethernet interface is
default in LAN group 1 and cannot be moved.
2. Select
USB in the Interface box and click Add next to LAN group 2. USB moves to LAN group 2 as
shown in figure below. The Configure link for LAN group 2 has also been generated, which allows
additional configurations for the defined LAN group.
3. Click
Apply to temporarily save the changes.
4.
To make the change permanent, click on Save All.
