4.4.3.2 Create IP QoS Traffic Rule

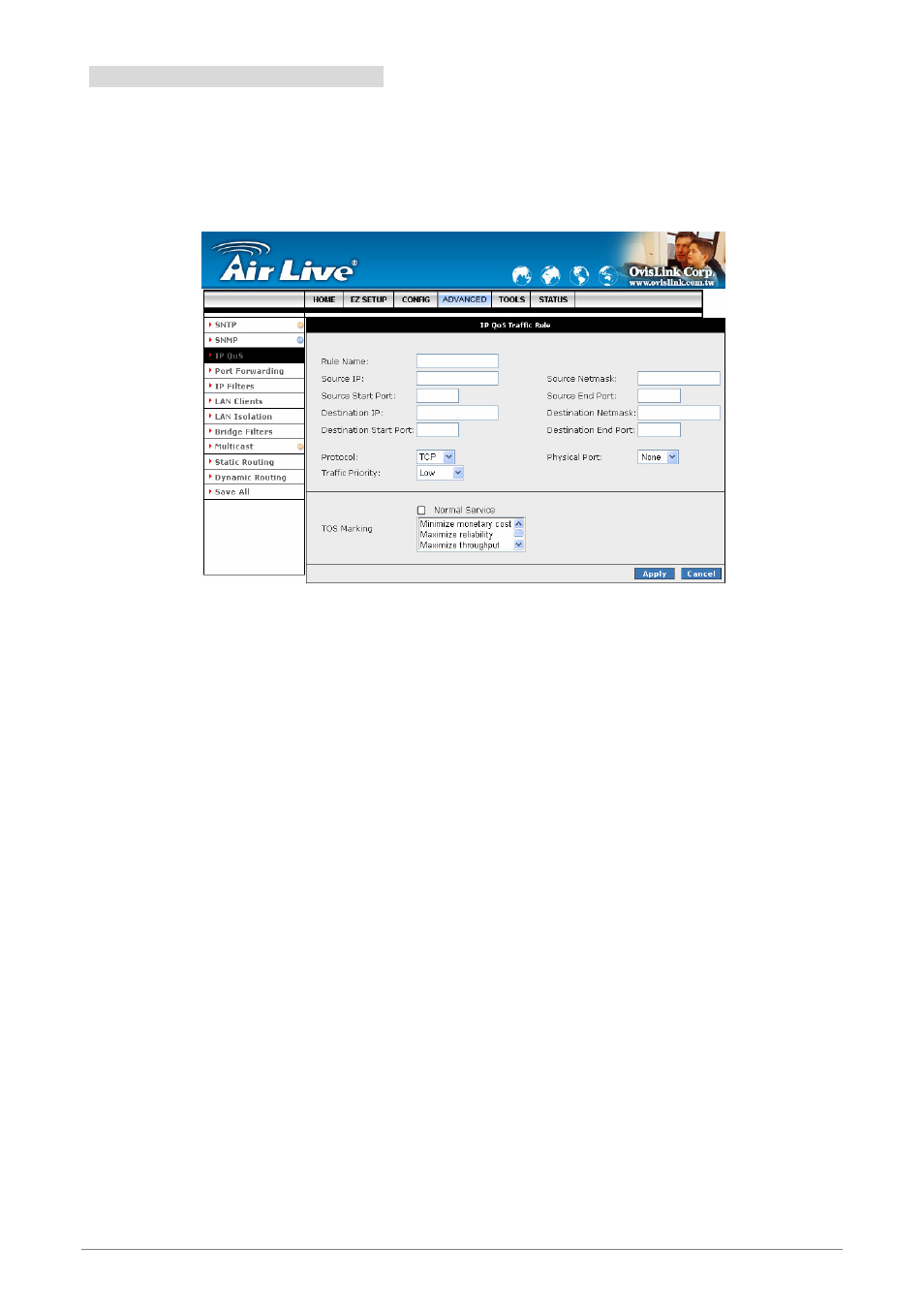

1. Use the terms describe below as a reference, and enter the required fields on the IP QoS Setup page.
2. Click Apply to temporarily save the setting.
3. To make the change permanent, click on Save All.
„ Rule Name: Name of the traffic rule.
„ Source IP: The IP address of the traffic source.
„ Source Netmask: The Netmask of the source.
„ Source Start Port: The start port of the source.
„ Source End Port: The end port of the source.
„ Destination IP: The IP address of the traffic destination.
„ Destination Netmask: The Netmask of the destination.
„ Destination Start Port: The start port of the destination.
„ Destination End Port: The end port of the destination.
„ Protocol: Select the protocol from the drop down manual. The protocols supported are TCP, UDP,
ICMP and ANY.
„ Physical Port: The selections are none, Port 1 through 4, USB, and WLAN.
„ Traffic Priority: The Traffic Priority field corresponds to the Priority Queue (High/Medium/Low) for
this traffic. The possible options for Protocol are: ANY, ICMP, TCP, and UDP. Wildcard(*) entries
are allowed for IP Address/Netmask and Port range fields.
