2N® SmartGate UMTS parameters configuration 3.1
25
Numeric parameters are programmed using numbers in units included in the
parameter description. The step for setting must be respected. For parameters with
different setting are values defined in the parameters description (in parenthesis).
To cancel any programming step in the programming mode, press a . Having done
so, you can hear the refusal tone and can enter a new parameter number. Parameters
are saved when the saving tone is transmitted. Hang up to quit programming.
During phone line programming mode is the LED ‘UMTS/GSM Network’ showing the
signal strenght
Example:
Dial
Confirma on Descrip on
Password entering, OK
Transmission volume parameter, OK
Set to medium level, saved
Non-existent parameter number, refusal
PC based Programming
For programming, connect 2N® SmartGate UMTS to a PC with a USB cable and
make sure that the 2N® SmartGate UMTS PCManager is installed. Programming is
intuitive and easy. All items and parameters are accompanied with texts hints - just
point at anything with the mouse cursor.
2N® SmartGate UMTS data uploading and storing, including firmware upgrade, are
executed in a special mode, in which 2N® SmartGate UMTS waits for about 3s after
power up (all LEDs are on). If instructed so by the PCManager during this timeout,
2N® SmartGate UMTS remains in this mode as long as it is necessary. If 2N®
SmartGate UMTS is not reset after the PCManager is terminated, switch the system
off and on again.
Language
selection
Data
handling
Programming
tables
Monitoring

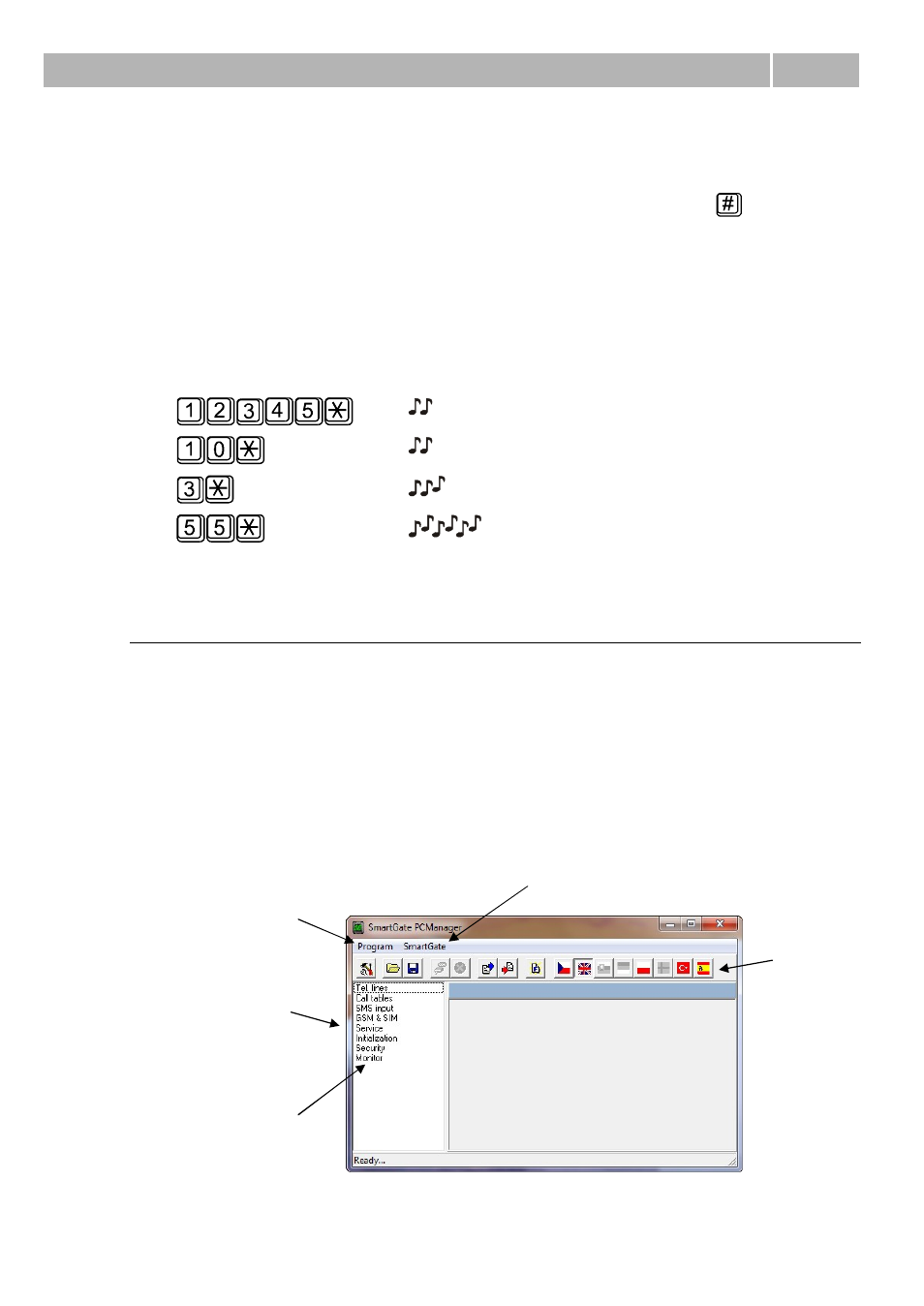

Figure 3.1
Basic screen of
SmartGate UMTS
PC Manager+
PCManager+
setup
