SECTION 5 - CONTROL COMPONENTS

5-18

– JLG Lift –

3121222

Lower Control Box - Component Replacement

1. Remove the four (4) attach screws and remove the

cover from the other half.

NOTE: Note wiring connections and routing when taking

apart.

1. Loosen the release screw, then spin the switch base

if necessary to access the barrel release lever.

2. Pull the barrel release lever straight out with the

blade of a screwdriver and pull barrel out of the
switch base from the front of the control box.

3. Reverse steps to install.

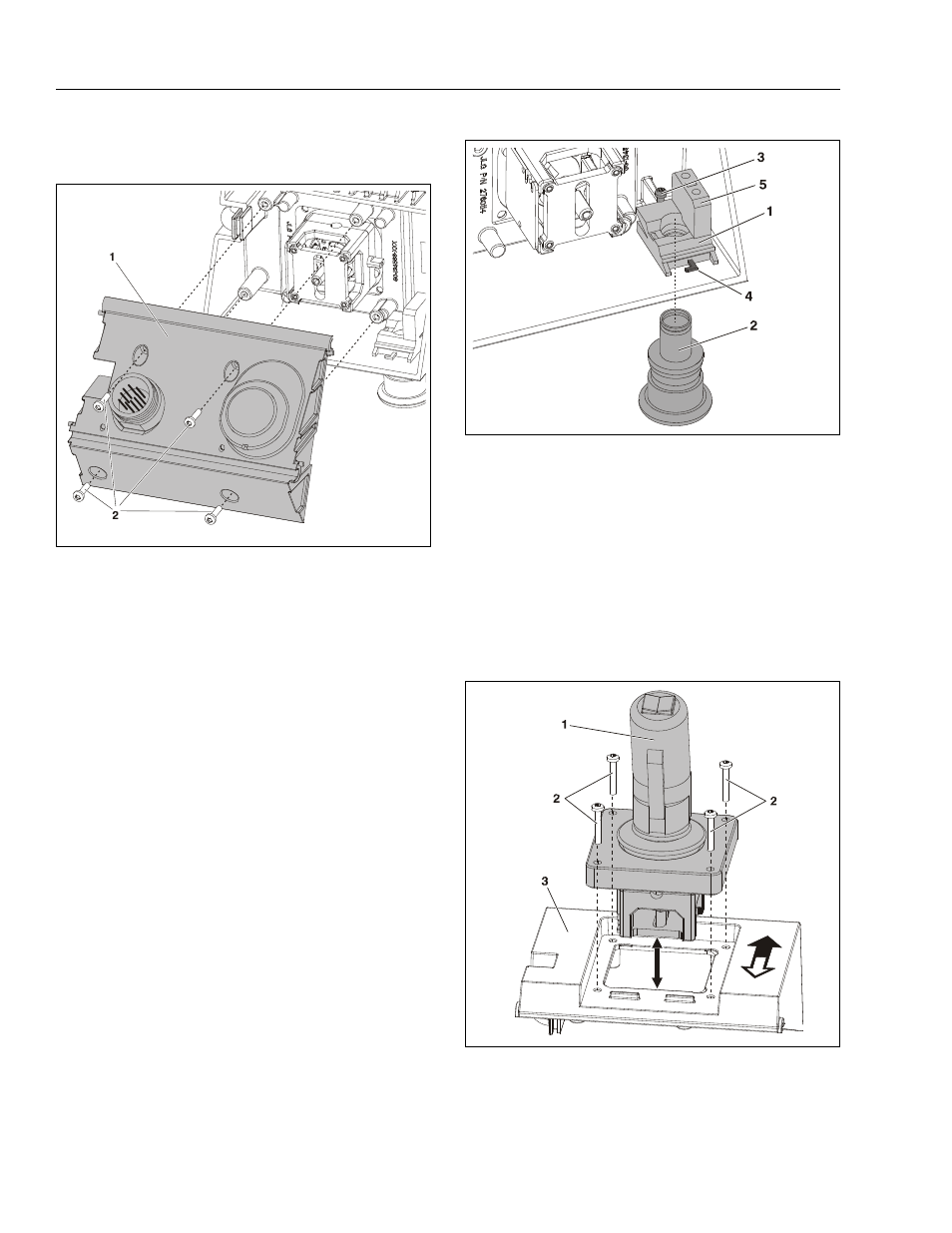

Lower Control Box Cover - Installation

1. Lower Control Box Cover

2. Attach Screws

Emergency Stop/Shut-Down Switch - Installation

1. Switch Base
2. Switch Button/Barrel
3. Base Release Screw

4. Barrel Release Lever
5. Switch

Joystick Control - Installation

1. Joystick Assembly
2. Attach Screws

3. Lower Control Box
